Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- V1203W-29061
- Phase:
- Single Phase
- Protection:
- Unbalanced Loads
- Weight:
- 257g
- Output Voltage:
- 12V
- Type:
- ONLINE
- Application:
- Telecommunications
- Product name:
- mini dc uninterruptible power supply source wifi router ups battery
- Capacity:
- 7.4V / 4000mAh - 29.6wh
- Output:
- 12V DC3A
- Input:
- 12V DC3A
- Battery Type:
- 18650 Lithium Battery
- Size:
- 138*60*24mm
- Net Weight:
- 256g
- Discharge time:
- 1-10hours
- UPS in jack:
- mains supply
- DC Output jack:
- DC 5.5*2.1mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 22X21X17 cm
- Single gross weight:
- 1.0 kg
- Package Type:
- 33pcs/CTN 10.2KG/CTN 42*23*24CM
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 10 15 18 To be negotiated

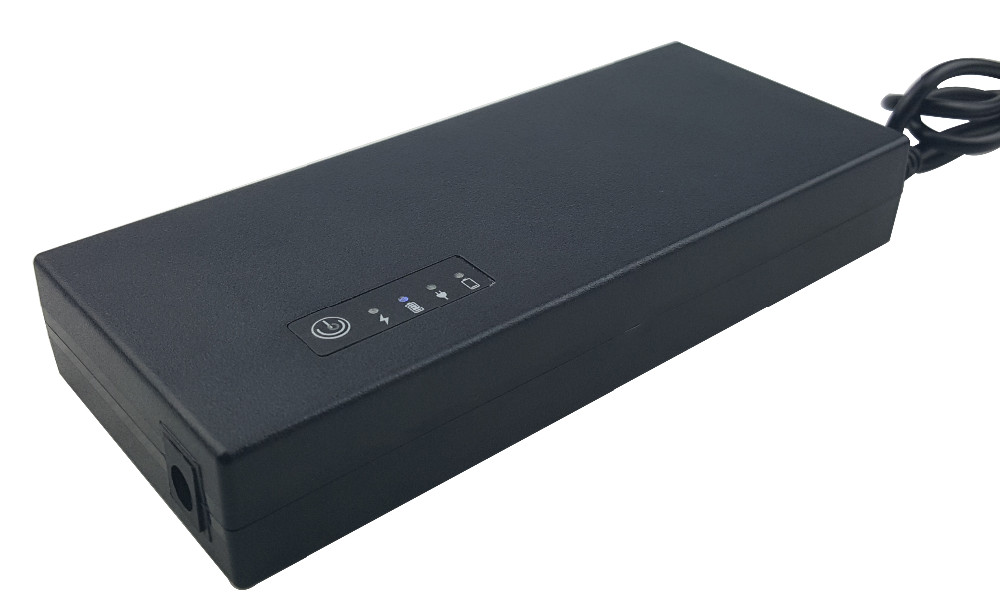

12V 3A backup mini dc uninterruptible power supply source wifi router ups battery
| SPECIFICATION | |
| Basic Information | |
| Model | V1203W |
| Capacity | 4000mAh /29.6wh |
| Input | 12V3A,5.5*2.1mm DC female |
| Output | 12V3A,5.5*2.1mm DC male |
| Battery | 18650 li ion battery |
Discharging transfer efficiency | ≥88% |
| Li-ion Battery with PCB characteristics | |
| Over Charged Protection | |
| Over discharge protection | |
| Over current protection | |
| Short protection | |
- Small switching change, short transfer Time.
- UPS max charging current is 0.8A, as automatically recognize the adapter charging ability, it based on voltage step-down to adjust the charging current.
- Rated output 12V 3A, with over-current adjustable function.
Circuit adopts the hardware,software etc multi-protective function steps.

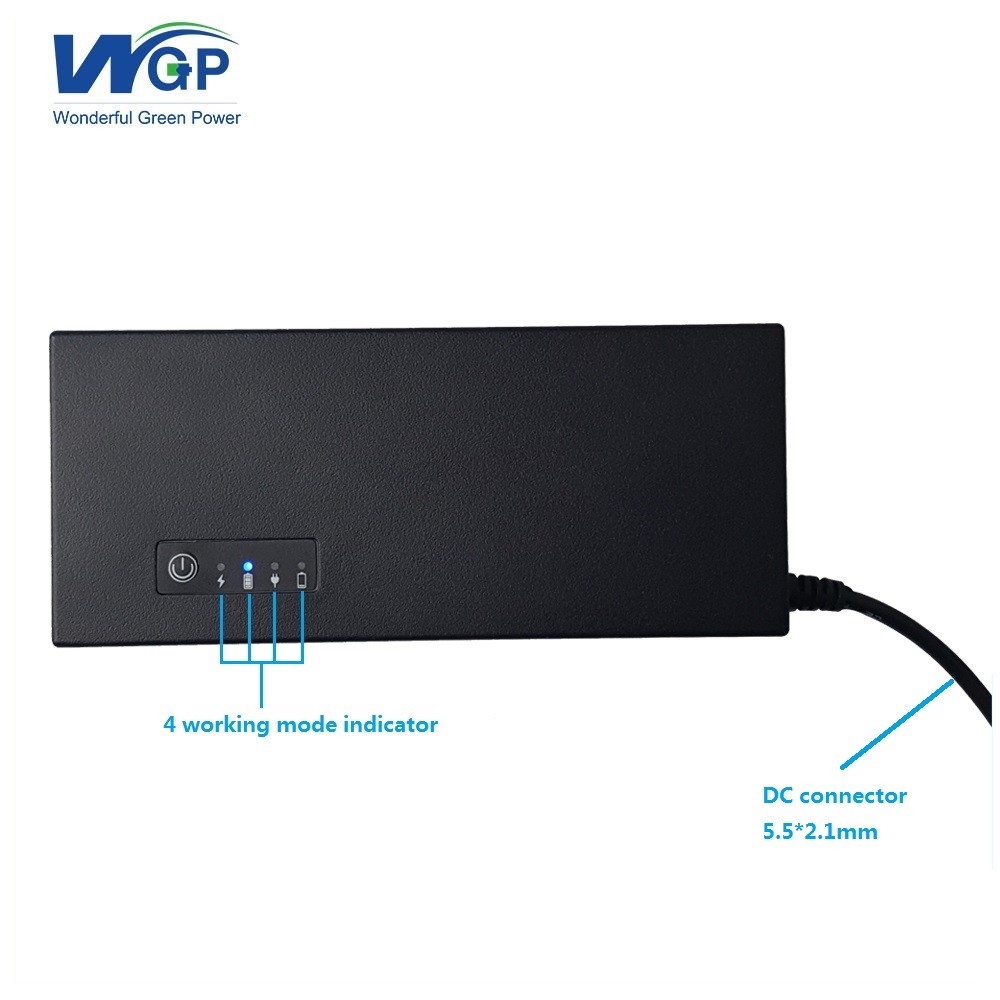

- UPS has low capacity indicator,adapter input indicator,battery working indicator,charging indicator.See below.
Popular Models
| Item | Capacity | Input | Output | SIze |
| 9V@1A | 2000mAh /14.8wh | DC 9V 1A, DC 5.5*2.1mm | DC 9V 1A, DC 5.5*2.1mm | 100*50*24mm |
| 12V@1A | 2000mAh /14.8wh | DC 12V 1A, DC 5.5*2.1mm | DC 12V 1A, DC 5.5*2.1mm | 100*50*24mm |
| 9V@2A | 4000mAh /29.6wh | DC 9V 2A, DC 5.5*2.1mm | DC 9V 2A, DC 5.5*2.1mm | 138*60*24mm |
| 12V@2A | 4000mAh /29.6wh | DC 12V 2A, DC 5.5*2.1mm | DC 12V 2A, DC 5.5*2.1mm | 138*60*24mm |
| 12V@3A | 4000mAh /29.6wh | DC 12V 3A, DC 5.5*2.1mm | DC 12V 3A, DC 5.5*2.1mm | 138*60*24mm |
Remark:
1.For details of 12V/2A,9V/1A,9V/2A,9V/3A.
2.We"re happy to assist you to get the most suitable model,welcome your inquiry.
3.DC size can be customized
4. Free charge for one color logo
Shenzhen Richroc Electronic Co.,Ltd.is a professional manufacturer of mini UPS, solar power systems and temperature control battery pack.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,PDA,MP3/4/5,digital camera,LED lamp, DVD/CD player, ADSL modem and router etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed forevery month.We have our own brand name WGP.OEM and ODM orders are welcomed. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast shipping time are the reasons to choose us.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Q:Do you have any other capacity?
A:Yes,please contact with me for more details.
