Display built-in 2.4GHz digital wireless video signal receiver, anti - throwing load pulse voltage design, protection circuit.The camera has a built-in 2.4GHz digital wireless video signal transmitter Waterproof camera IP67, with infrared night vision function.
Product Standard:
| NTSC | 648 * 488 pixels |
| PAL | 648 * 488 pixels |
| Resolution | 420 TVL |
| Lens | 2.5 mm |
| Minimum illumination | 0Lux (LED ON) |
| Infrared lamp | 18 PCS |
| Night vision distance | IP67 |
| Angle | 120 ° |
| Input voltage | 12/24/36V DC |
| Operating temperature | -20°C ~ + 70°C |
| Video decompression mode | MPEG 4 |
| Beam power | 18 dBm |
| transmission rate | 12 Mbps |
Installation procedure:
Step 1: remove the original license plate lamp.
Step 2: connect the 3 wires -- guidance on wiring of special car cameras:
1. Red and black thick line ---- camera power supply ---- ---- connect the reversing light (that is, the light that turns on when the car is in reverse).
2. Yellow video line -- camera video -- connects to the reversing video input end of the host (the v-in end of the reversing rear view).
3. Red and black thin wire -- power supply for camera license lamp -- power supply line for original license lamp.
Step 3: there is no problem with the test. Fix the special camera in the car (just press it in place)..

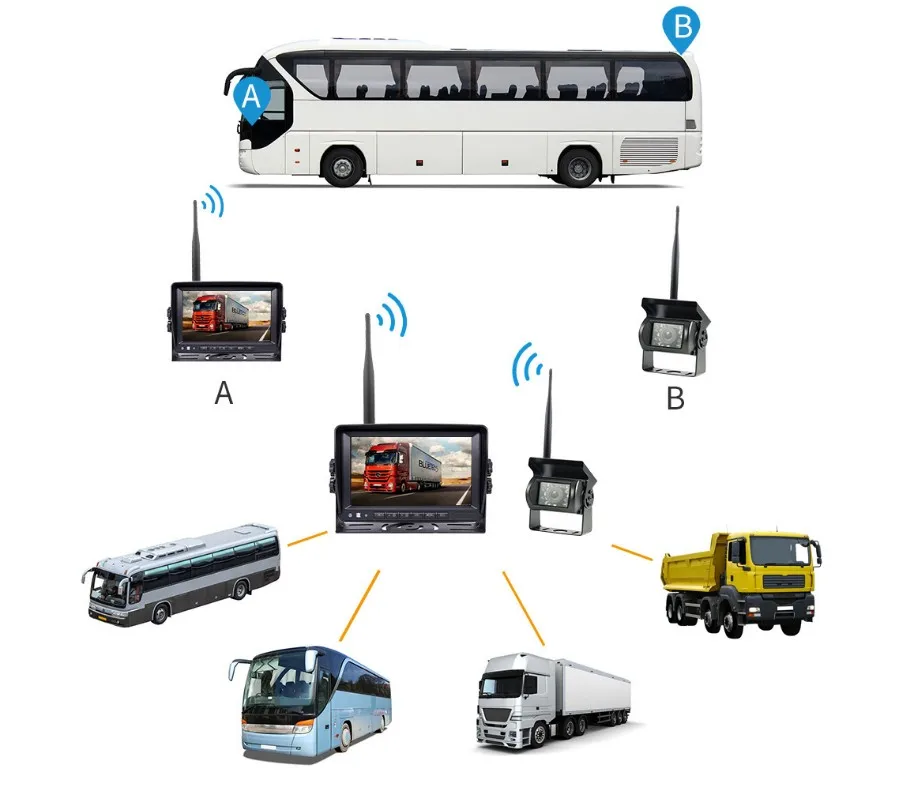

Products applied to public transit bus, long-distance bus, bus, farm tractors and heavy trucks, rail transit vehicles, municipal road machinery machine equipment, airport equipment vehicles, quay cranes, mechanical equipment and stacking machine, security escort vehicle, fire rescue vehicles, factory supermarket forklift, mining machinery and equipment, etc
