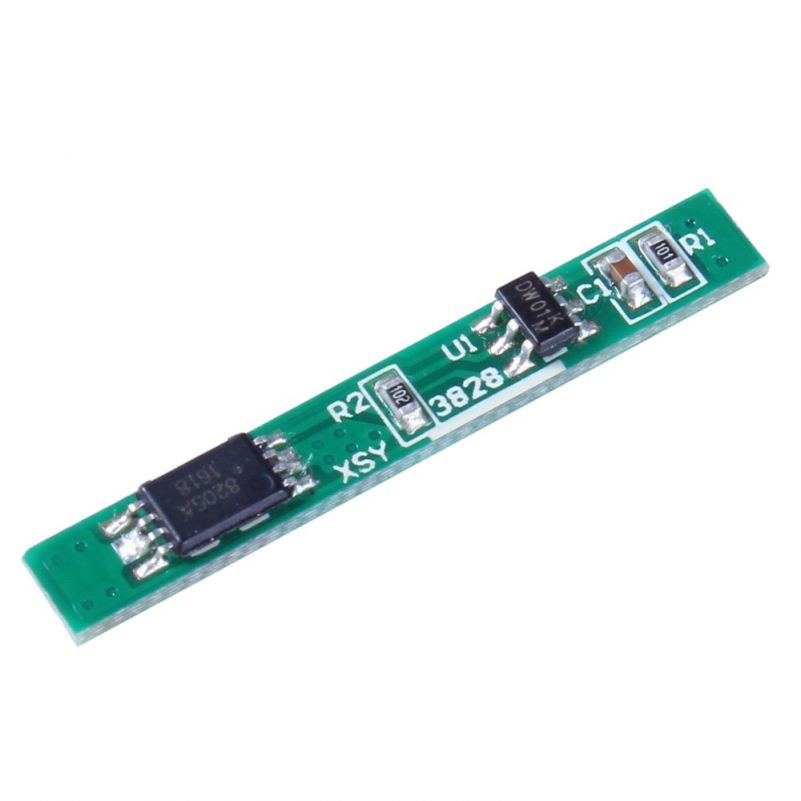

BMS 1S 3.7V 2.5A Lithium Battery Protection Board PCM PCB Polymer Over Charge Discharge Li-ion Protect Module Over Board
Click on the image to view the original image
Product： views：7BMS 1S 3.7V 2.5A Lithium Battery Protection Board PCM PCB Polymer Over Charge Discharge Li-ion Protect Module Over Board
Branch： Original
Type： Other
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 02:36
  Negotiated
Product Details
Overview
Quick Details
D/C:
new
Package:
module
Model Number:
BMS 1S 3.7V 2.5A
Type:
Other
Brand Name:
Original
Place of Origin:
Guangdong, China
Data sheet:
Contact us
Condition:
Original and New
Stock:
In Stock
MOQ:
Samples Offer
Warranty:
90Days
Price:
Competitive
Mounting Type:
SMD
Dissipation Power:
Standard Design Wattage
Supply Voltage:
Standard Design Voltage
Operating Temperature:
Normal Temperature
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Tray package or Tape & Reel package
Port
Shanghai, Ningbo, Hongkong, Shenzhen or any other China port
Lead Time:
Quantity(Pieces)1 - 1000 >1000
Est. Time(days)3To be negotiated





Product Introduction:
1.Charing Voltage:DC 4.2--5V CC/CV
2.Single Battery Consumption Current:<=6uA continuous discharging current 2.7A
3.Overcharging Detection Voltage:4.2 V+/-0.025V
4.Overcharging Detection Delay Time:150-500 ms
5.Overcharging Restore Voltage:4.0V+/-0.025V
6.Overdischarging Detection Voltage:2.75V+/-0.1V
7.Overdischarging Detection Delay Time:50-150ms
8.Overdischarging Restore Voltage:2.9V+/-0.10V
9.Overcurrent Detection Voltage:150+/-30mv
10.Overcurrent Detection Current:4.5+/-0.5A
11.Overcurrent Detection Delay Time:5ms-15ms
12.Overcurrent Restore Type:automatic restore
13.Short Circuit Detection State:external short circuit
14.Short Circuit Detection Delay Time:<=50us
15.Short Circuit Restore State:automatic restore
16.Internal Resistance:MOSPET <= 40m ohm
17.Operating Temperature Range:-40 - +50 Celsius
18.Storage Temperature Range:-40 - +90 Celsius
19.Size:28*3.8*1.2mm

Features:
1.Connecting Charger Teminal adopts withstand high voltage instrument
2.Internal 3 phase overcurrent detectiton circuit (overcurrent 1,overcurrent 2,load short circuit)
3.MOS tube can control battery charging and discharging
4.Wide Operating Temperature Range
5.Low Consumption Current

Soldering Point Introduction:
1.B+:connect with power positive
2.B-:connect with power negative
3.P+:connect with charging/discharging port positive(charging port/discharging port common used)
4.P-:connect with charging/discharging port negative(charging port/discharging port common used)
