Product parameters

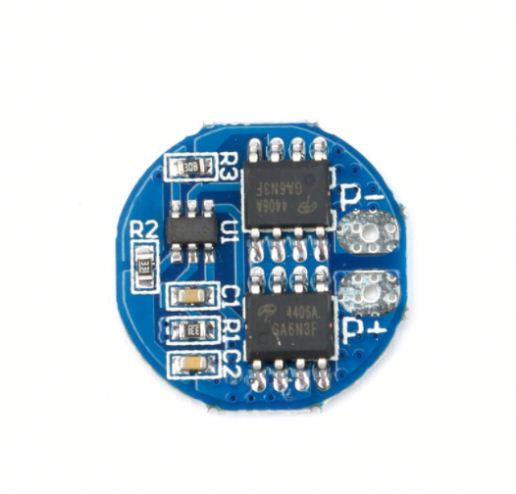

- Model: HX-2S-A2
- Overcharge voltage range: 4.25-4.35v ± 0.05v
- Overpressure voltage range: 2.5-3.0v ± 0.05v
- Charging voltage: 8.4V-9V
- Upper limit operating current: 5A
- Upper limit instantaneous current: 7A
- Operating temperature: -40 --- +50 ℃
- Storage conditions: -40-- +80 ℃
- Quiescent current: less than 10uA
- Internal resistance: less than 300mΩ
- Size: 17.5 * 17.5 * 3.2mm
- Effective life: more than 50,000 hours
- Short circuit protection: can be protected, need to charge recovery
Note:
The battery will heat when using it, it means the battery does not apply , please don"t keep using becuase the battery will be damaged soon.
The protection board can not be used for lithium iron phosphate battery, hernia lamp, hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, children"s car battery, 775 (4A)motor, 1W fish eye LED light!
Connector:
B +: Connected to the battery positive
B- : Connected battery negative
MB : Connect the battery 1 to the connection point before battery 2
P + : Charge / discharge side positive (shared charge / discharge side)
P- : Connection / discharge terminal negative (charge / discharge side shared)
