Home > Products > 2500W ZVS Induction Heater Induction Heating PCB Board High frequency Heating Machine Melted Metal + 48VCoil Mayitr
2500W ZVS Induction Heater Induction Heating PCB Board High frequency Heating Machine Melted Metal + 48VCoil Mayitr
Click on the image to view the original image
Product: views:52500W ZVS Induction Heater Induction Heating PCB Board High frequency Heating Machine Melted Metal + 48VCoil Mayitr
Branch: RUIZE Technology Co., Ltd.
Type: Other
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 02:37
  Negotiated
Product Details
Overview
Quick Details
D/C:
new
Package:
module
Model Number:
2500W ZVS Induction Heater
Type:
Other
Brand Name:
RUIZE Technology Co., Ltd.
Place of Origin:
Guangdong, China
Data sheet:
Contact us
Condition:
Original and New
Stock:
In Stock
MOQ:
Samples Offer
Warranty:
90Days
Price:
Competitive
Mounting Type:
SMD
Dissipation Power:
Standard Design Wattage
Supply Voltage:
Standard Design Voltage
Operating Temperature:
Normal Temperature
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Tray package or Tape & Reel package
Port
Shanghai, Ningbo, Hongkong, Shenzhen or any other China port
Lead Time:
Quantity(Pieces)1 - 1000 >1000
Est. Time(days)3To be negotiated

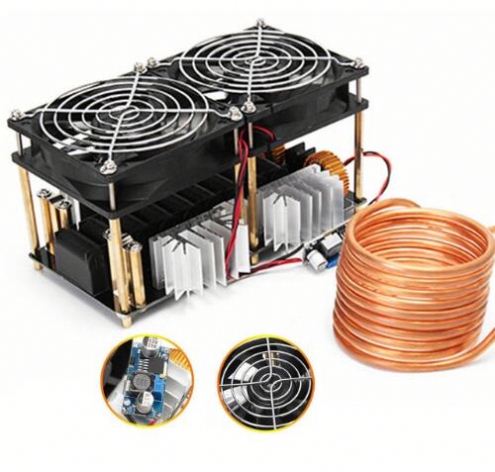

2500W ZVS Induction Heater Induction Heating PCB Board High frequency Heating Machine Melted Metal + 48VCoil Mayitr







Product size: 120mm * 240mm

Input voltage: 12V-48 recommended above 36V

Power requirements: less than 12V ≥ 10A 15V or more ≥ 20A

Maximum power: 2500W

Maximum current: 50A


For induction heating, it is recommended to use a switching power supply of 48V50A or higher. If the power supply is 24V or more, a power supply of 20A or more is required. The higher the voltage, the larger the current, the higher the heating power, the faster the heating speed.

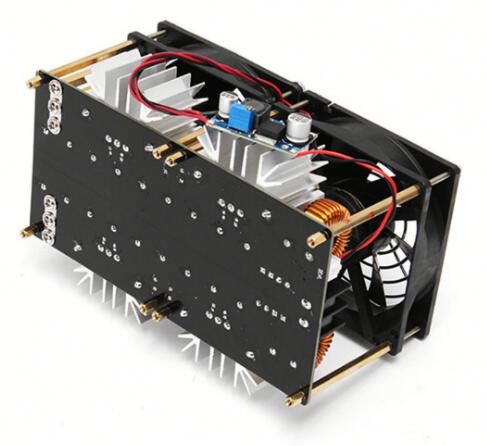

[1] The heating plate is made of 240*120mm military grade PCB, and the performance is stable;

[2] The power line is fully covered with copper cover design, which can increase the current and heat generation;

[3]Using an oversized and large power heat sink, the heat dissipation is better;

[4] The output uses three M4 copper columns in parallel, which can be connected to other outputs such as high voltage packages;

[5] Six IRFP260 and 12 capacitors are used in parallel resonance, which has high power efficiency;
