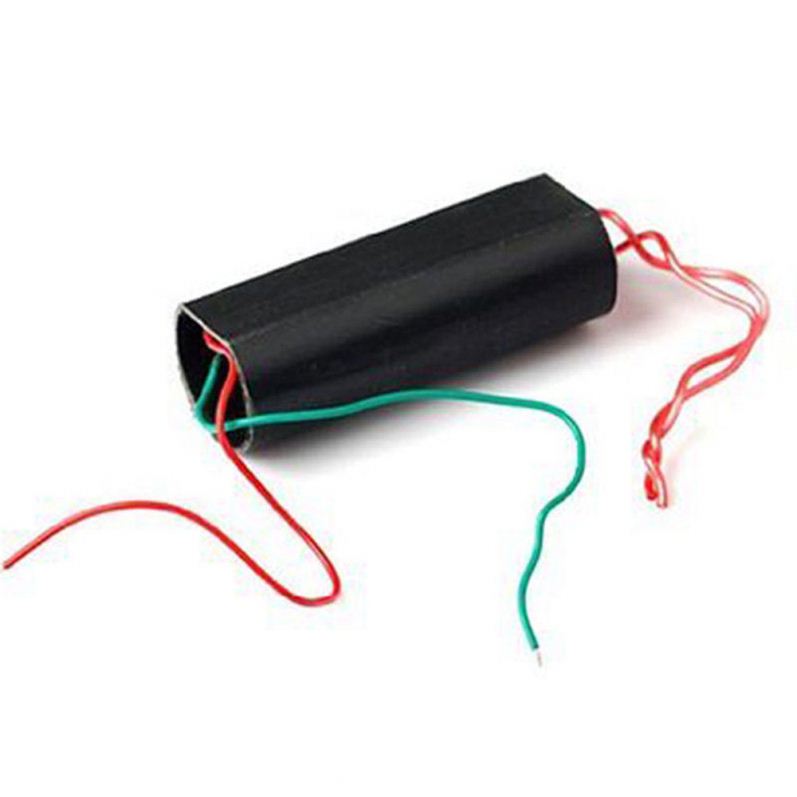

1000kV Generator

Specifications:
Module type: MC-901
Input voltage: 3.7V-7.4V
Input current: 0.5A-1A
Input wire length: 9 cm
High voltage type: pulse DC type
Output voltage: 800KV-1000KV (please pay attention to safety when using)
Output current: 0.5A-1A
Output length: approximately16 cm
High voltage bipolar discharge distance: 1.5 cm -2 cm
Size:88x26mm(LxD)
Module use note:
1, high voltage module should avoid the use of high voltage no-load, power must be
adjusted before the high voltage line end of the right distance, high voltage wire drawing
distance and the use of battery voltage and capacity is proportional to.
2, the test arc distance from short to long experiment, when the power is prohibited
beyond the longest arc distance, due to the high pressure energy can not be released,
very easy to damage the module.
3, the power of the module, the internal heat is not heat, so not a long time to work.
Package include:1X 1000kV High voltage inverter

400kV Generator
input voltage: DC 3 V to 6 V
Input current: 2 A - 5 A
High pressure type: the type of pulse current
Output voltage: 400000 v(Please pay attention to safety)
High pressure discharge distance between: 10 mm - 20 mm
The output high voltage wire length: 100 mm
Input power cord length: 100 mm (the red line is positive)
Wiring:
Red and green power connection red line:""+"" green line ""-""
output : the other side ,same color cable
Please notice:
the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )
Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module
Package included:1 x DC 3v-6v to 400kV 400000V Boost Step-up Power Module High-voltage Generator

500kV Generator
Peripheral circuit is simple (just plug in switches, batteries can be) the discharge intensity violent.
Module Model: MCY-12-1
Physical volume: Length 70X 32mm diameter
Input voltage: 6V-12V
Input Current: 0.5A-1A
Input line length: 23 cm
High voltage type: DC type pulse
Output voltage: about 500KV (please pay attention to safety when used)
Output Current: 0.5A-1A
Output line length: about 92 cm
High voltage bipolar discharge distance: 2 cm -5 cm

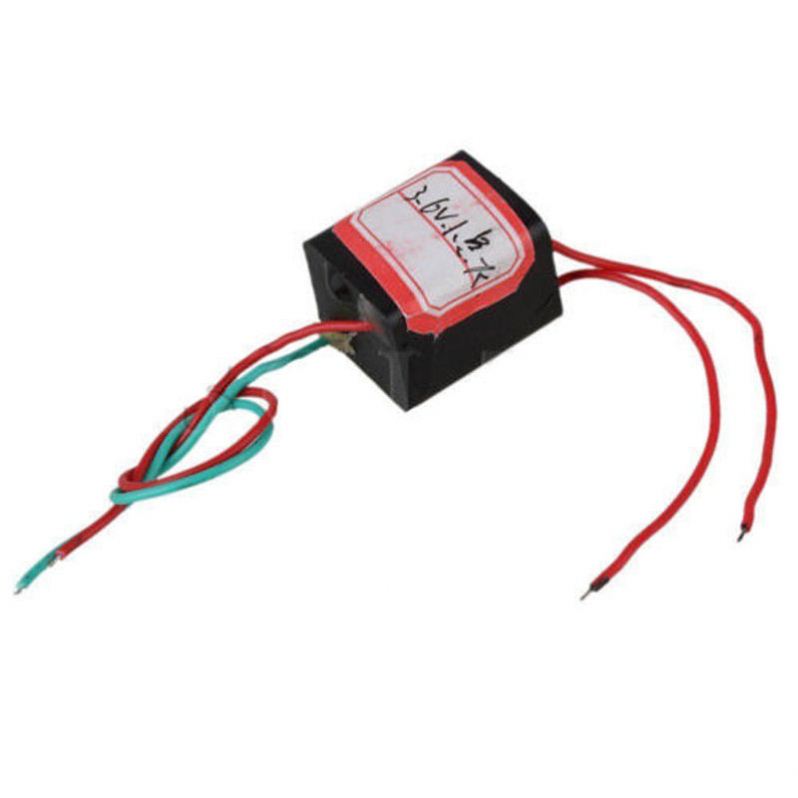

20KV Generator

Material: Metall, Kunststoff
Farbe: schwarz und
Groesse: 19 x 20 x 18 mm (L x B x H)
Gewicht: 19g
Eingangsspannung: DC3.6V-6V
Eingangs-Strom: 1.5A
Ausgangsspannung: DC20KV (Bitte achten Sie auf Sicherheit, wenn verwendet)
Ausgangsstrom: 0,05A
Input Line Laenge: ca. 110 mm (rot ist positiv)
Ausgangsleitungslaenge: ca. 110mm
Hochspannungs-Bipolar-Entladungsabstand: 5mm
Hohe Art: Impulsstrom
Struktur: Hoch- und Niederspannungs integrierte
Package include:1 x 20 kV-Boost-Step-up Power Module
