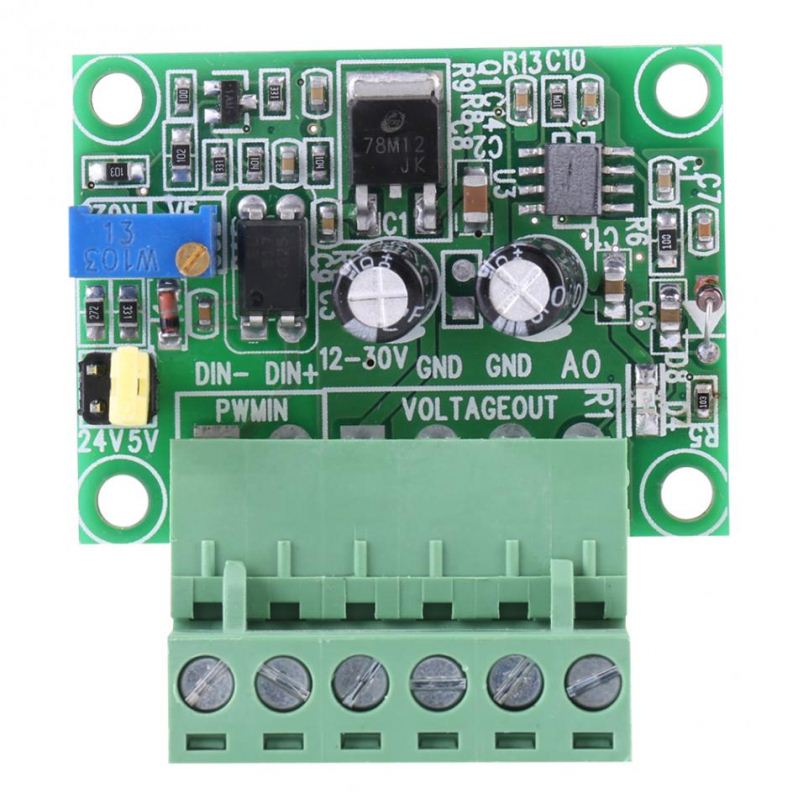

Features:

• PWM converts digital signals into analog signal (0 to 10V).
• Input digital signal can be 5V or 24V level 0-100% PWM signal.
• Output analog signal can be 0-10v voltage or 0-5v voltage.
• Can be used for industrial control panel PLC or other signal interface switching.
• This module is easy to wire and convenient to use.

Specification:
Condition: 100% brand new and high quality
Current: Max. 12mA
Power supply input voltage: 12-30V
Size: Approx. 5 x 4.5cm / 1.97 x 1.77inch
Weight: 20g
Quantity: 1pc

Using method:

• PWM signal input frequency range: 1KHZ-3KHZ
• PWM signal input level range:
• 4.5V to 10V peak to peak level, jumper inserted at 5V. This type signal mainly for conventional industrial control card (such as for MACH3 board), for 5V the CPU interface.
• 12 to 24V peak to peak level, jumper inserted at 24V. This type signal mainly for conventional PLC interface

0-10V analog voltage output explanation:
When the signal input port is not connected, the output port gives 0V. The first time when we power on this module, we better calibrate it: find a 50% duty ratio signal, connect to DIN-, DIN+, the amplitude matches corresponding jumper. When frequency is at 1kHz ~ 3kHz, use a multi-meter to test AO, GND. The meter should be showing around 5.4V. We adjust the potentiometer on the converter module to make multi-meter shows about 5.4V. After this is done, we have calibrated and matched pulse signal with this converter module.  The module has a definition of 0.1V. Output current 10mA. If duty ratio is in opposite to voltage, we can select PWM output pin STEP LOW / ACTIVE for MACH3 software.
