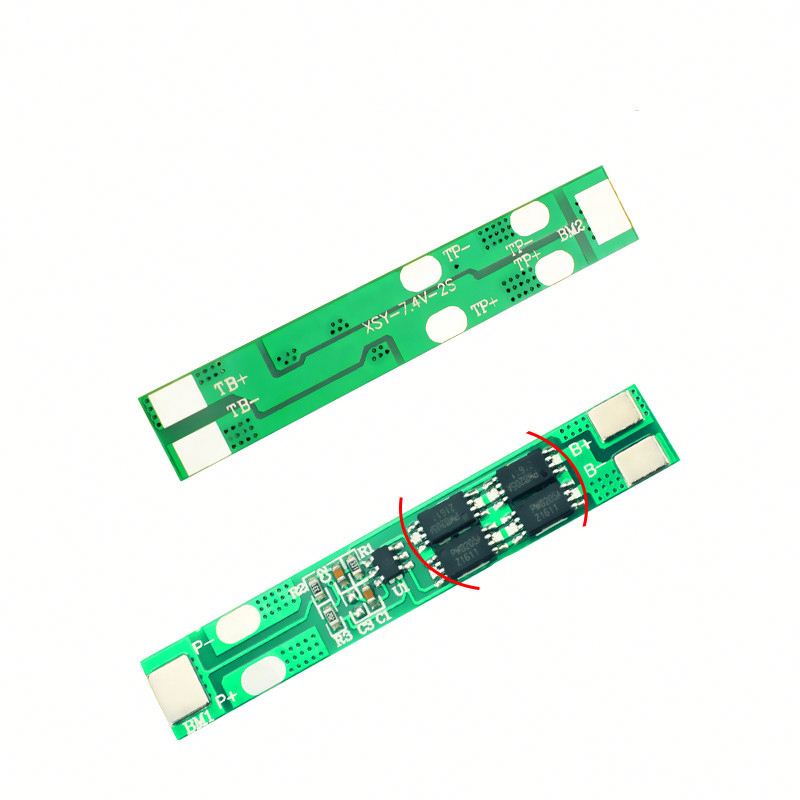

8A 2S 18650 Lithium Battery Protection Board 2 String 7.4V 8.4V Polymer Charge Discharge Protection Circuit High Current BMS PCM
Click on the image to view the original image
Product： views：68A 2S 18650 Lithium Battery Protection Board 2 String 7.4V 8.4V Polymer Charge Discharge Protection Circuit High Current BMS PCM
Branch： RUIZE Technology Co., Ltd.
Type： Other
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 02:38
  Negotiated
Product Details
Overview
Quick Details
D/C:
new
Package:
module
Model Number:
8A 2S 18650 Lithium
Type:
Other
Brand Name:
RUIZE Technology Co., Ltd.
Place of Origin:
Guangdong, China
Data sheet:
Contact us
Condition:
Original and New
Stock:
In Stock
MOQ:
Samples Offer
Warranty:
90Days
Price:
Competitive
Mounting Type:
SMD
Dissipation Power:
Standard Design Wattage
Supply Voltage:
Standard Design Voltage
Operating Temperature:
Normal Temperature
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Tray package or Tape & Reel package
Port
Shanghai, Ningbo, Hongkong, Shenzhen or any other China port
Lead Time:
Quantity(Pieces)1 - 1000 >1000
Est. Time(days)3To be negotiated







 Charging voltage: DC 8.4-9V
Single consumption of batteries: ≤ 6uA
Maximum continuous discharge current: 8A
Overcharge protection: overcharge detection voltage: 4.275V ± 0.025V
                      Overcharge detection delay time: 150-500ms
                      Overcharge recovery voltage: 4.075V ± 0.025V
Over discharge protection: over discharge detection voltage: 2.50V ± 0.1V
                      Overdischarge detection delay time: 50-150ms
                      Over discharge recovery voltage: 2.9V ± 0.1V
Overcurrent protection: overcurrent detection voltage: 150 ± 30mv
                     Overcurrent detection current: 3A ± 0.5A
                     Overcurrent detection delay time: 5-15ms
                     Automatic recovery status
Short circuit protection: Detection status: External short circuit
                    Detection delay time: ≤500us
                    Automatic recovery status
Internal resistance: protection line: ≤ 25mΩ
-40 ~ 50 Celsius
Size:50*8*2mm
