Digital Voltage Energy Meter Frequency Power Current Power factor Panel Watt Combo Indicator 80~260V 110V 220V
100% brand new and high quality
Features:
This combo meter is designed to monitor AC power, it combines many functions in one.
Backlight control, short press to turn on/off backlight, Automatically save data when power is turned off in backlight state
Clear energy reading, press and hold down the key to clear the reading of kWh.
With Overload alarm, Power alarm threshold preset, Store data, Reset function
Measurement precision, large-screen LCD liquid crystal screen display clearly.
Function:
1. Electrical parameter measurement function (voltage, current, power factor, power, Hz, Energy).
2. Overload alarm function (over power alarm threshold, the backlight and power flicker tips).
3. The power alarm threshold preset function (can set up their own power alarm threshold).
4. The power button clear function.
5. Power-down data storage function.
6. Large-screen LCD screen full display function (display voltage, current, active power, power).
7. Backlight.

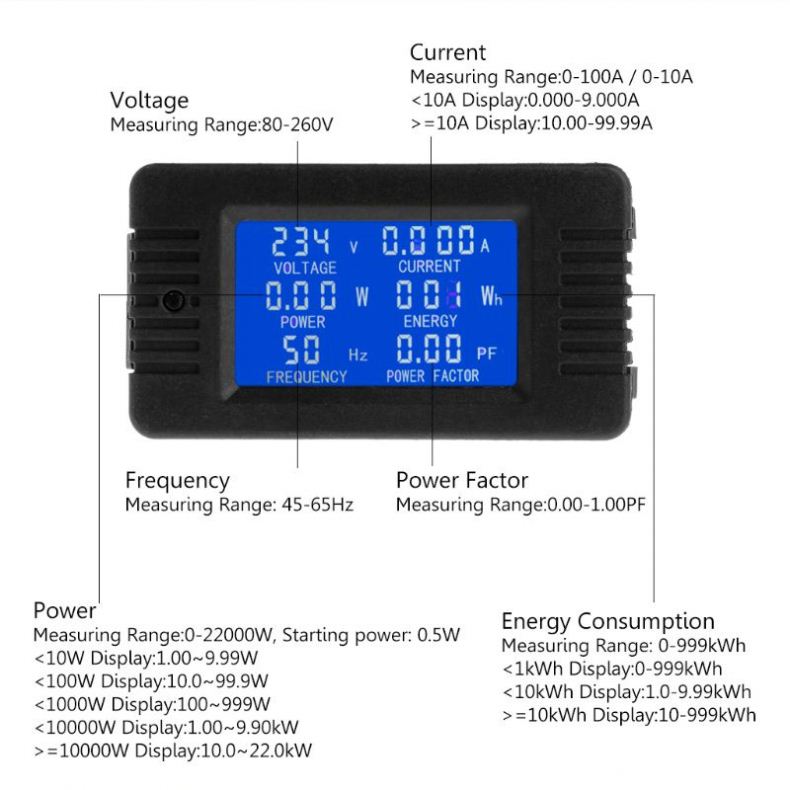

Parameters:
Voltage:Measuring Range:80-260V
Current Measuring Range:0-100A / 0-10A
Frequency Measuring Range: 45-65Hz
Power Factor Measuring Range:0.00-1.00PF
Power Measuring Range:0-22000W, Starting power: 0.5W
Energy Consumption Measuring Range: 0-999kWh
Specification:
Current types: 100A, 10A
Power supply: 80~260V AC
Display type: LCD
Shell material: Reinforced nylon

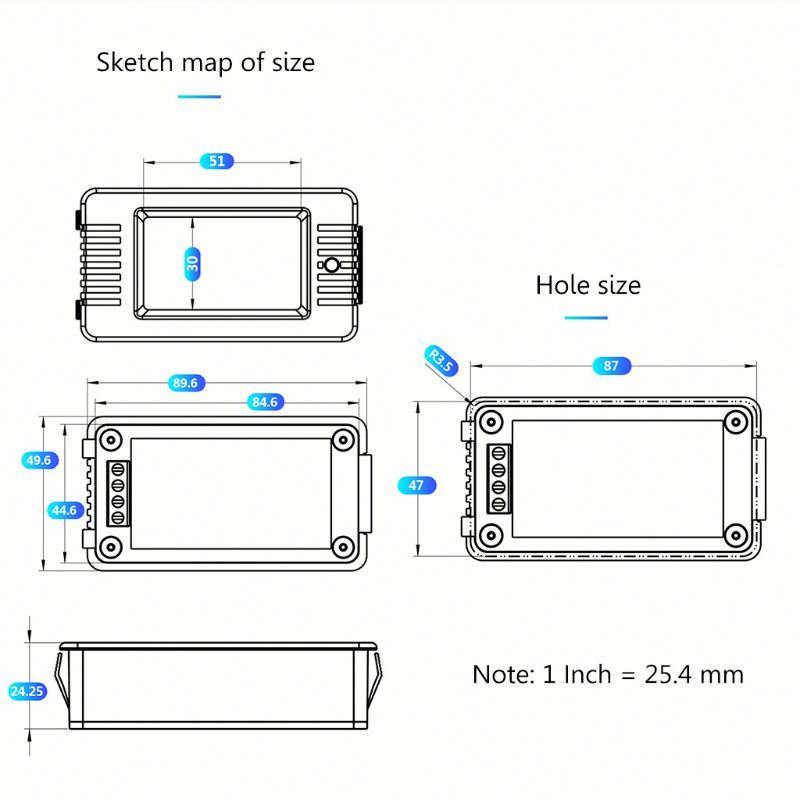

Dimensions: 89.6x49.6mm/3.53x1.95inch
