1-4 channel 5V 12V Flip-Flop Latch Relay Module Bistable Self-lock
Click on the image to view the original image
Product： views：61-4 channel 5V 12V Flip-Flop Latch Relay Module Bistable Self-lock
Branch： RUIZE Technology Co., Ltd.
Type： Other
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 02:39
  Negotiated
Product Details
Overview
Quick Details
D/C:
new
Package:
module
Model Number:
Relay Module
Type:
Other
Brand Name:
RUIZE Technology Co., Ltd.
Place of Origin:
Guangdong, China
Data sheet:
Contact us
Condition:
Original and New
Stock:
In Stock
MOQ:
Samples Offer
Warranty:
90Days
Price:
Competitive
Mounting Type:
SMD
Dissipation Power:
Standard Design Wattage
Supply Voltage:
Standard Design Voltage
Operating Temperature:
Normal Temperature
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Tray package or Tape & Reel package
Port
Shanghai, Ningbo, Hongkong, Shenzhen or any other China port
Lead Time:
Quantity(Pieces)1 - 1000 >1000
Est. Time(days)3To be negotiated






Description:

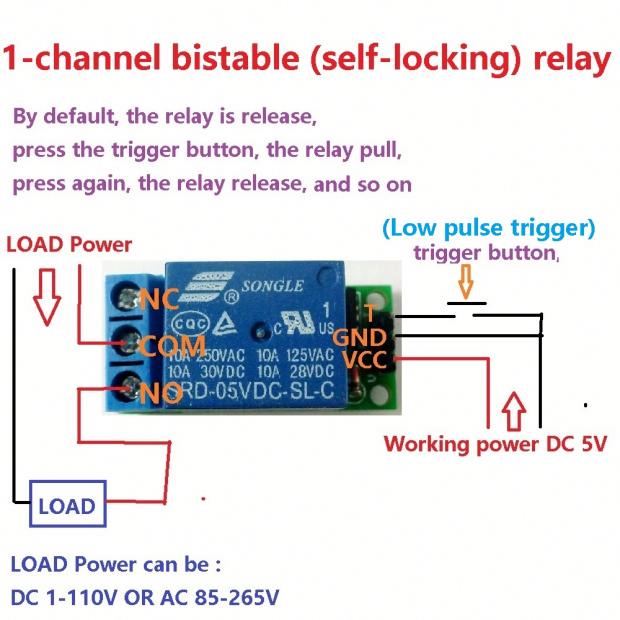

1 Channel DC 5V Self-locking Relay Module(version 1) :

Working voltage: DC 5V
Working current: 70MA
Standby current: 1UA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 35mm * 16mm  * 18.5mm (L * W * H),  Very small size
Weight: 13.5 g


1 Channel DC 12V Self-locking Relay Module(version 2) :

Working voltage: DC 6-24V
Working current: 60-70MA
Standby current: 1UA
Load current : AC 250V/10A, DC 30V/10A
Trigger mode: Low pulse trigger
Size: 48mm * 16mm  * 18.5mm (L * W * H),  Very small size
Weight: 14.3 g

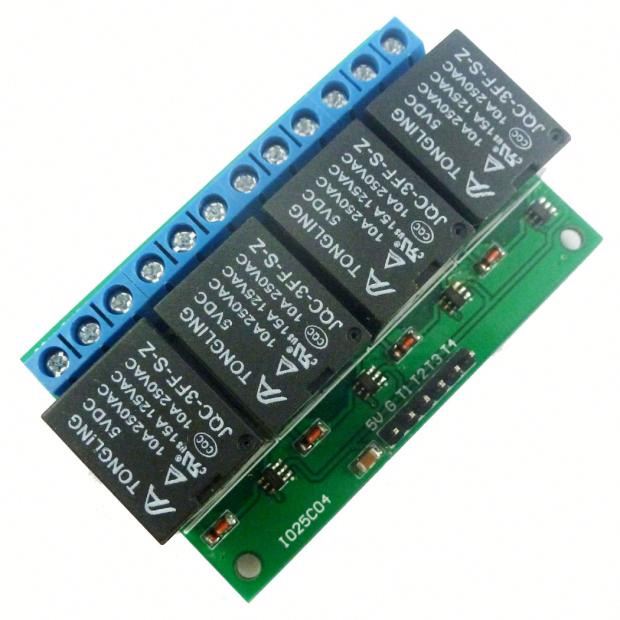

4 Channel DC 5V Self-locking Relay Module(version 3) :

Working voltage: DC 5V
Working current: 1 relay 70MA;2  relay  140MA; 3  relay  210MA; 4  relay  280MA
Standby current: 4UA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 42mm  * 19mm (L * W * H),  Small size
Weight: 52 g

4 Channel DC 12V Self-locking Relay Module(version 4) :

Working voltage: DC 6-24V
Working current(12V): 1 relay 37MA;2  relay 73 MA; 3  relay 1 10MA; 4  relay 146 MA
Standby current(12V): 2mA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 47mm  * 19mm (L * W * H),  Small size
Weight: 57 g
