Product Description
12V Storage Battery Protection Board Undervoltage Automatically Turn On/Off Controller Module
Features:

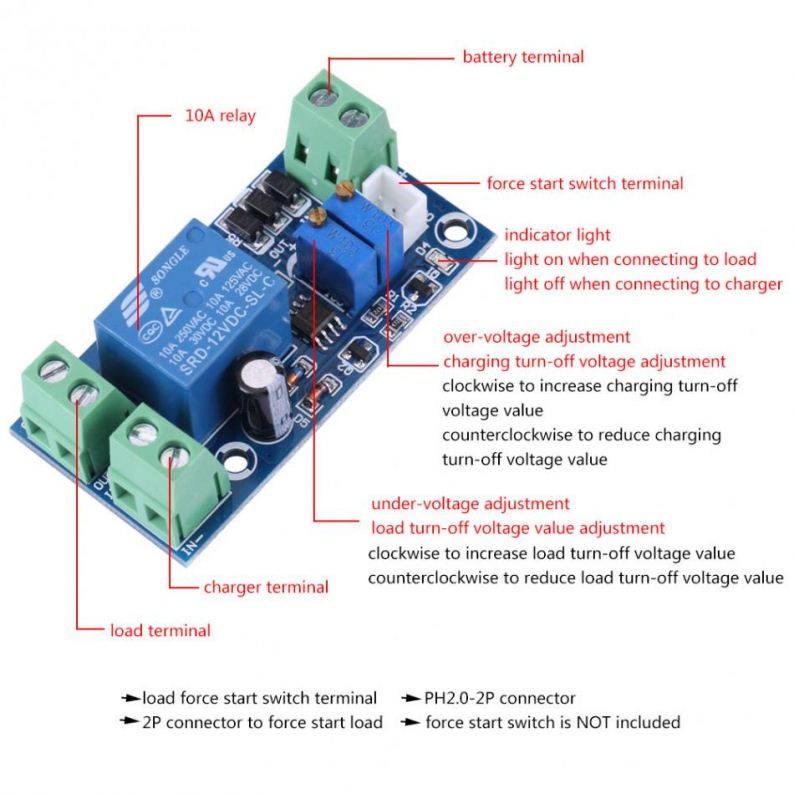

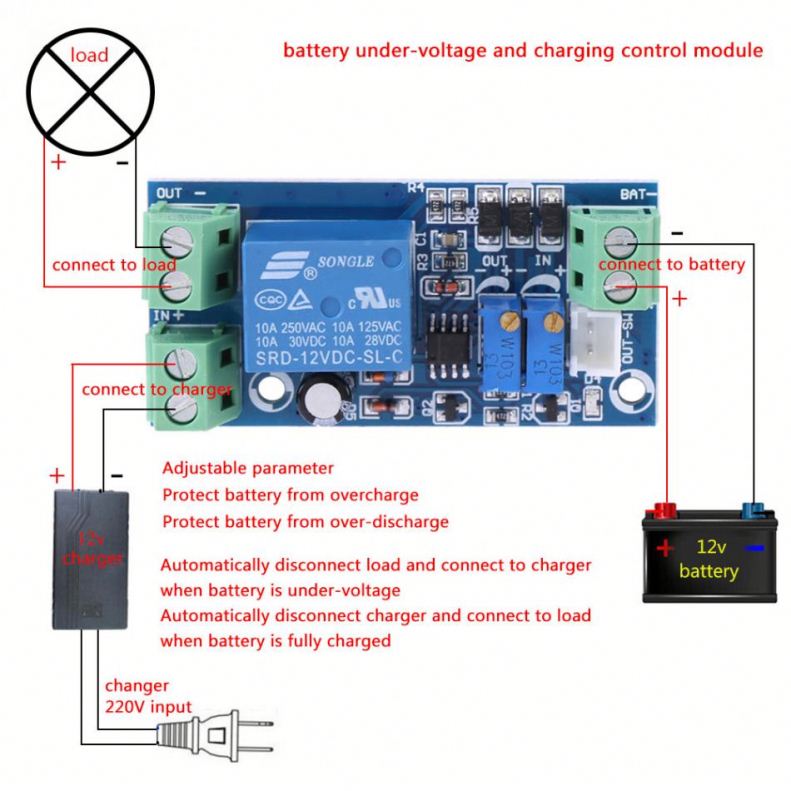

- This is a under-voltage switch module used to automatically turn off the power of load in the event of the voltage dropping below a set value.
- Then it will connect to charger automatically to charge storage battery.
- When the battery voltage increases to a set value, the module will automatically turn on load again and stop charging battery.
- Designed with a LED indicator to show if load is turned off or turned on.
- Both turn-off and turn-on voltage value can be adjusted by simply adjusting potentiometer
- This control board will help you to save power and prolong battery life.
Specifications:
Suitable Battery Voltage: 12V
Voltage Error: ±0.1V
Load Current: 10A
Size: 6*3*1.8cm/2.4*1.2*0.7in
Weight: 24g(approx.)
