ESP8266 ESP01 ESP-01 RGB LED Controller Adpater WIFI Module for IDE WS2812 WS2812B 5050 16 Bits Light Ring Christmas DIY
Click on the image to view the original image
Product： views：8ESP8266 ESP01 ESP-01 RGB LED Controller Adpater WIFI Module for IDE WS2812 WS2812B 5050 16 Bits Light Ring Christmas DIY
Branch： RUIZE Technology Co., Ltd.
Type： LOGIC ICS
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 02:42
  Negotiated
Product Details
Overview
Quick Details
D/C:
2018
Package:
SMD/DIP
Model Number:
RUIZE Technology Co., Ltd.
Type:
LOGIC ICS
Brand Name:
RUIZE Technology Co., Ltd.
Place of Origin:
Guangdong, China
Brief Description:
ESP-01 RGB LED Controller Adpater WIFI Module
Manufacturer / Brand:
standard
Package / Case:
SMD/DIP
LEAD TIME(Delivery Time):
1 DAY
QUALITY WARRANTY:
365 DAYS
Description:
new and original
Lead Free Status:
RoHS Compliant / Lead free
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Tray package or Tape & Reel package
Port
Shanghai, Ningbo, Hongkong, Shenzhen or any other China port
Lead Time:
Quantity(Pieces)1 - 1000 >1000
Est. Time(days)3To be negotiated
Product Description

ESP8266 ESP01 ESP-01 RGB LED Controller Adpater WIFI Module for  IDE WS2812 WS2812B 5050 16 Bits Light Ring Christmas DIY

This is a WS2812 RGB LED control module based on ESP-01 / 01S. With it, you can easily control the WS2812 light bar / light ring. DIY own lighting control system. Support for Ard uino IDE programming.

Characteristic:


* Master: ESP-01 / ESP-01S (This module include ESP-01 / ESP-01S)

* Control Pin: GPIO2

* Interface: 3Pin PH2.0 connector

* Operating Voltage: DC 3.7V-5V (Please note: The positive supply voltage VCC on the board is connected to the VCC on the WS2812 3PIN connector. Therefore, if your light bar / lamp ring is 5V powered, use DC 3.7V-5V power supply.)

* Support 3.7V lithium battery


Packaging:

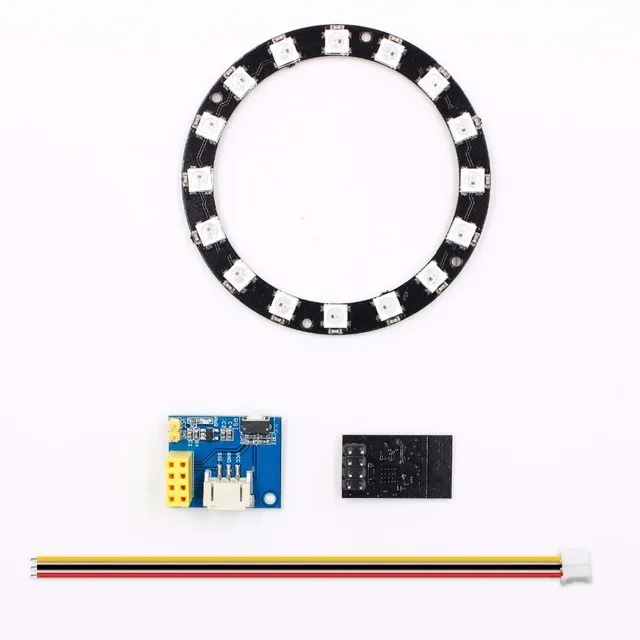

1.ESP-01S/ESP-01 RGB LED module X1 (include ESP-01S/ESP-01 WiFi module and RGB LED)

2.3PIN PH2.0 connector X1

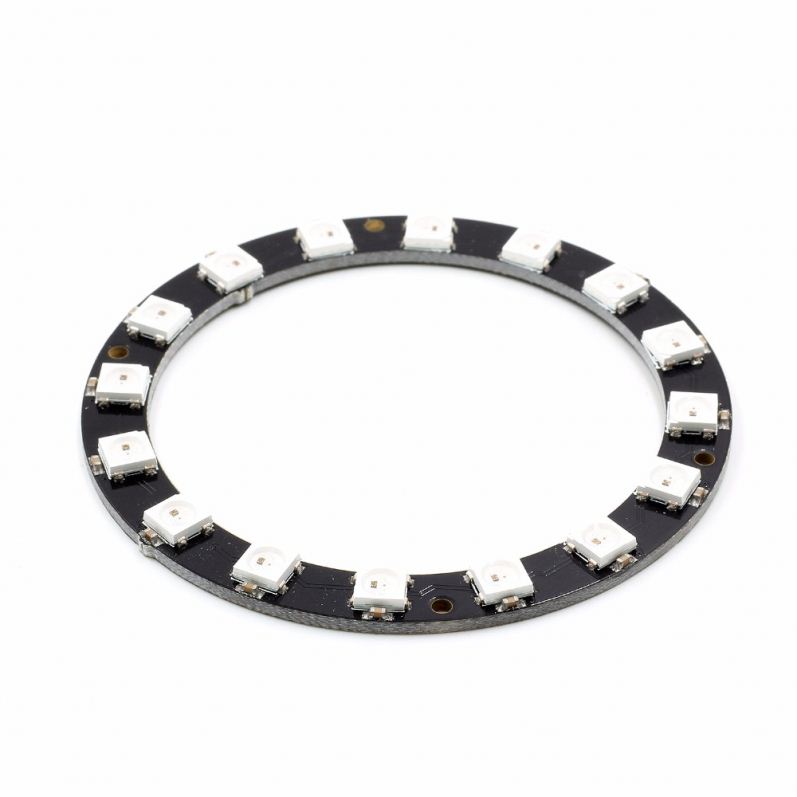

3.RGB LED Ring 16 Bit WS2812 5050 RGB LED with Integrated Driverx1

Note:It dose not include battery


Application example:

1. Power supply: 3.7V-5V DC power supply to the VCC GND (2.54mm pin)
2.Download the program to ESP-01S

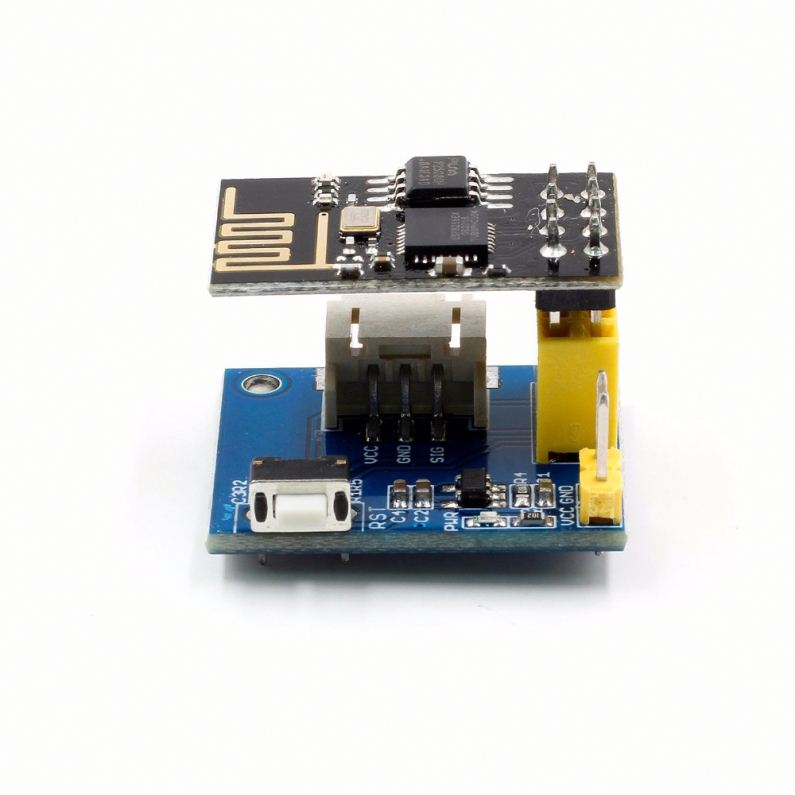

3. Insert the ESP-01 / ESP-01S into the 2 * 4 Pin header (in the direction of the arrow) as shown below:
