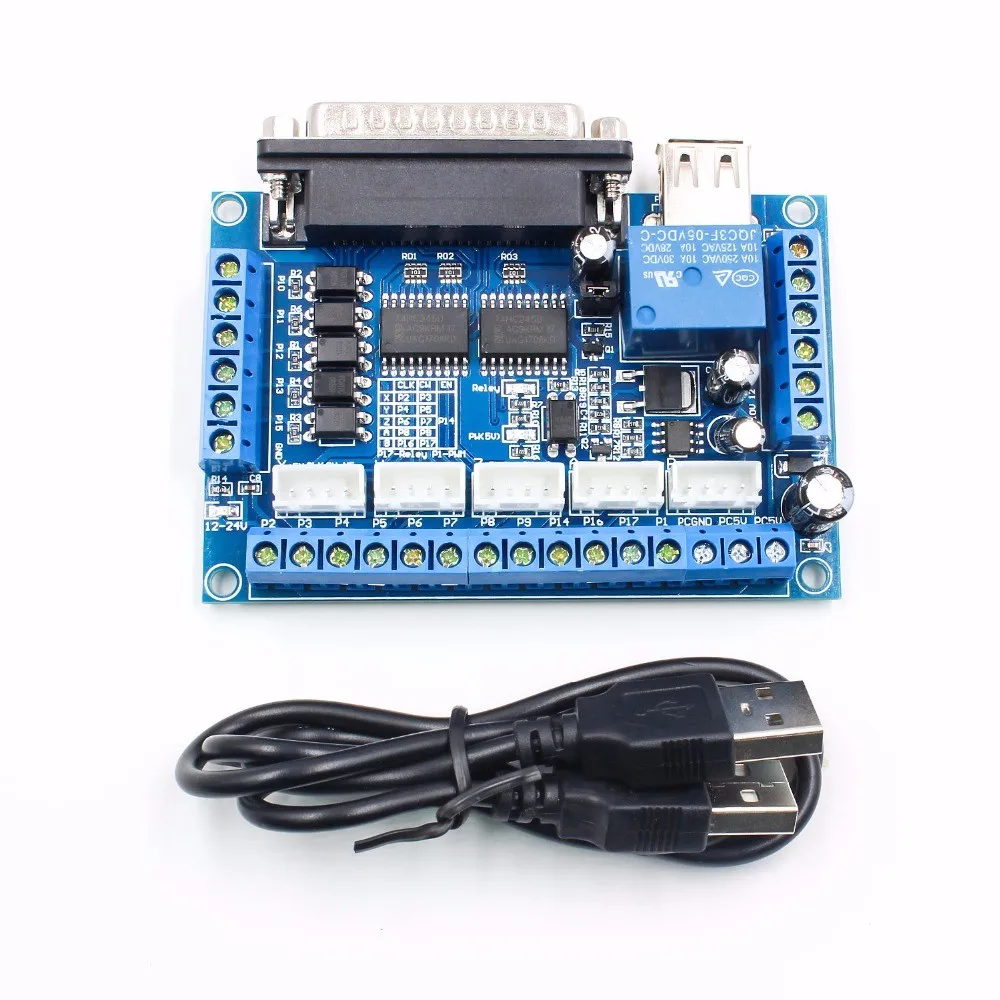

MACH3 engraving machine CNC 5 axis stepper motor driver interface board with optocoupler isolation blue board + USB cable
Features:
1.100% Brand new and high quality.
2.Fully support for MACH3 and other computer software support for parallel port control.
3.USB power support and peripherals powered phase separation to protect computer secrity.
4.all of the input signal, all the light lotus isolated, which can be accessed emergency stop on the knife, the limit to protect computer security.
5.all the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port.
6. all the way to the relay output port, control spindle switch. Output port P17 mouth.
7. Open all 17 ports, which can be controlled with optocoupler input spindle governor.
8. Peripheral wide voltage input,12-24V, and anti-reverse function.
9.can be accessed by a common cathode or common anode input level to 5V drive
Specifications:

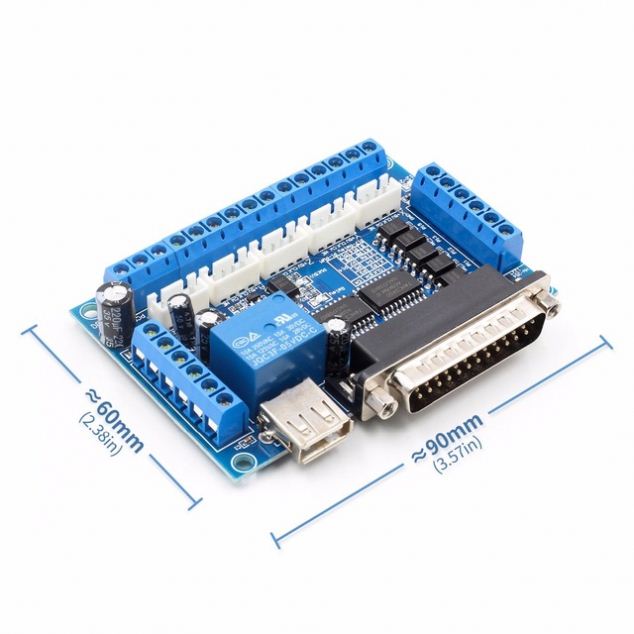

Board size: 90*70*18mm
Board Color: Blue
Optical Coupler length: 135cm
