TEC Semiconductor LED Display Thermostat Automatic Temperature Controller 6.5
Name:TEC Semiconductor Automatic Thermostat
Control range:-50 To 110
Temperature control:Point control
Temperature Precision:0.1
Refresh Rate:4 times/second
Input voltage:DC12V
Self power consumption:quiescent current<120MA/1.5W
Output Type:1 channel Positive And Negative Switching + 1 channel refrigeration + 1 channel heat additive
Output power:12V 15A 180W (MAX)

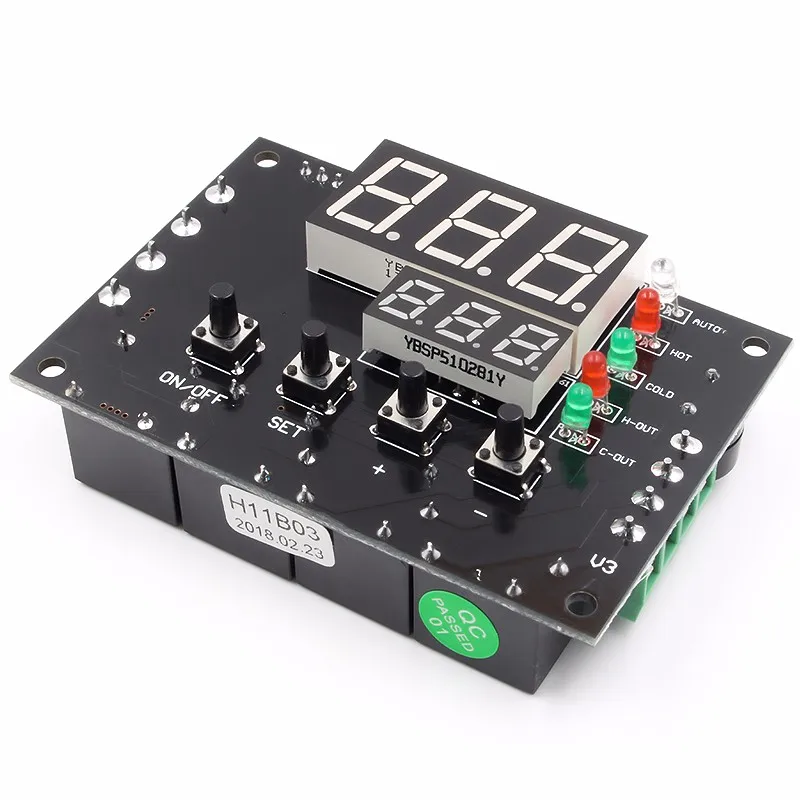

Display window:PV34*19MM SV23*10MM
Size:78*53*26mm
Working Temperature:-20 to 65 degree(humidity < 80%)

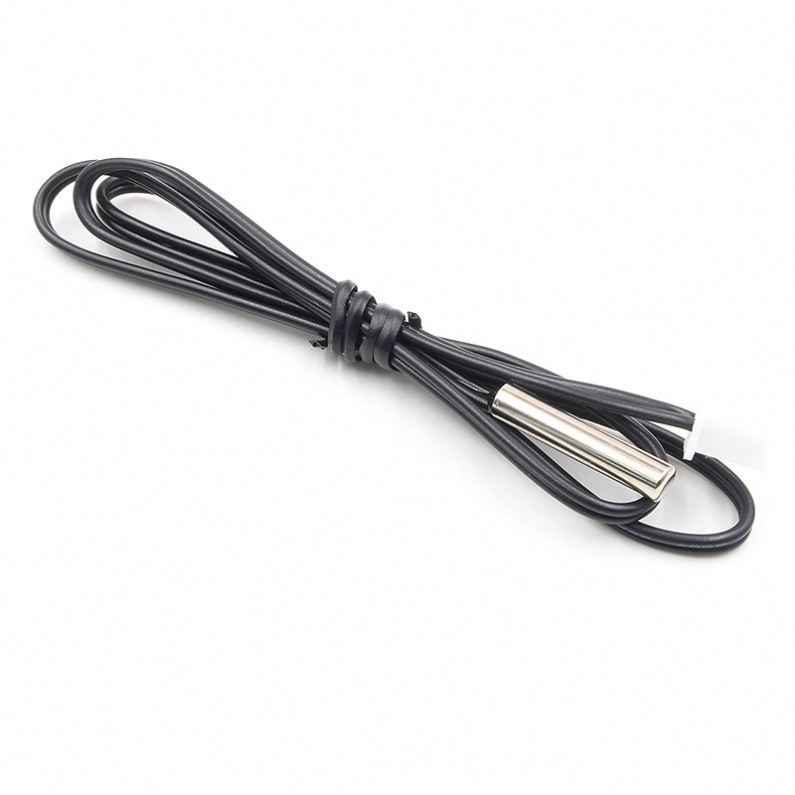

prober:0.5 meter waterproof (10KB3950)
Notic:
Use only the input of 12V DC power supply, the maximum range of 10-14V, load side can only use refrigeration piece, or to support the positive and negative converter devices
TEC cooling chip control at a time, if the control must extend the output power of a larger, on-board can not exceed 15A / 180W
The actual work time to pay attention to TEC cooling, because it is positive or negative output, cooling fan does not support, so the cooling system to be connected to the expansion output port, and the state together with the start
