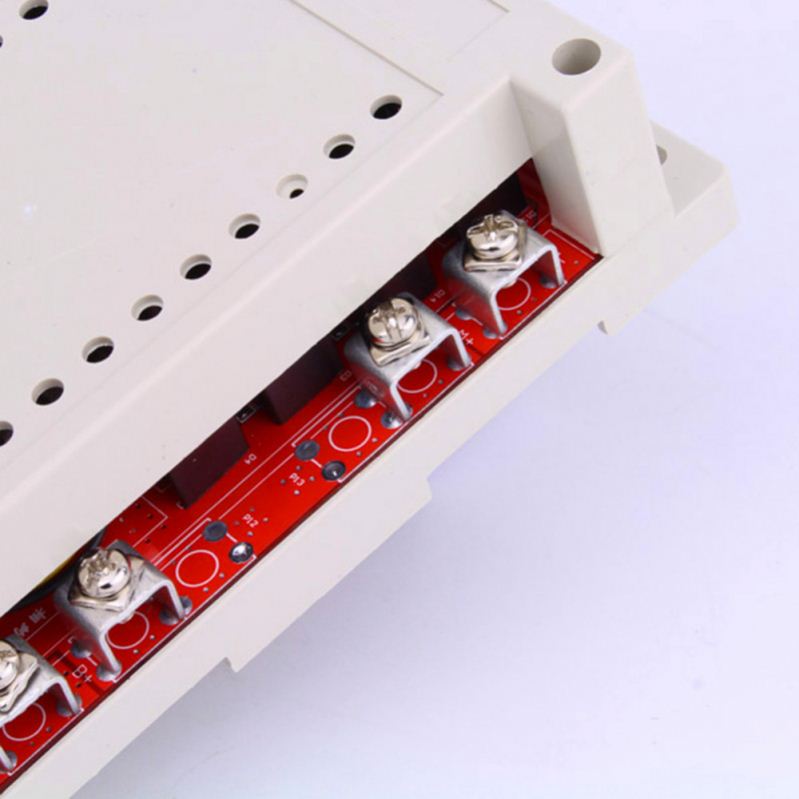

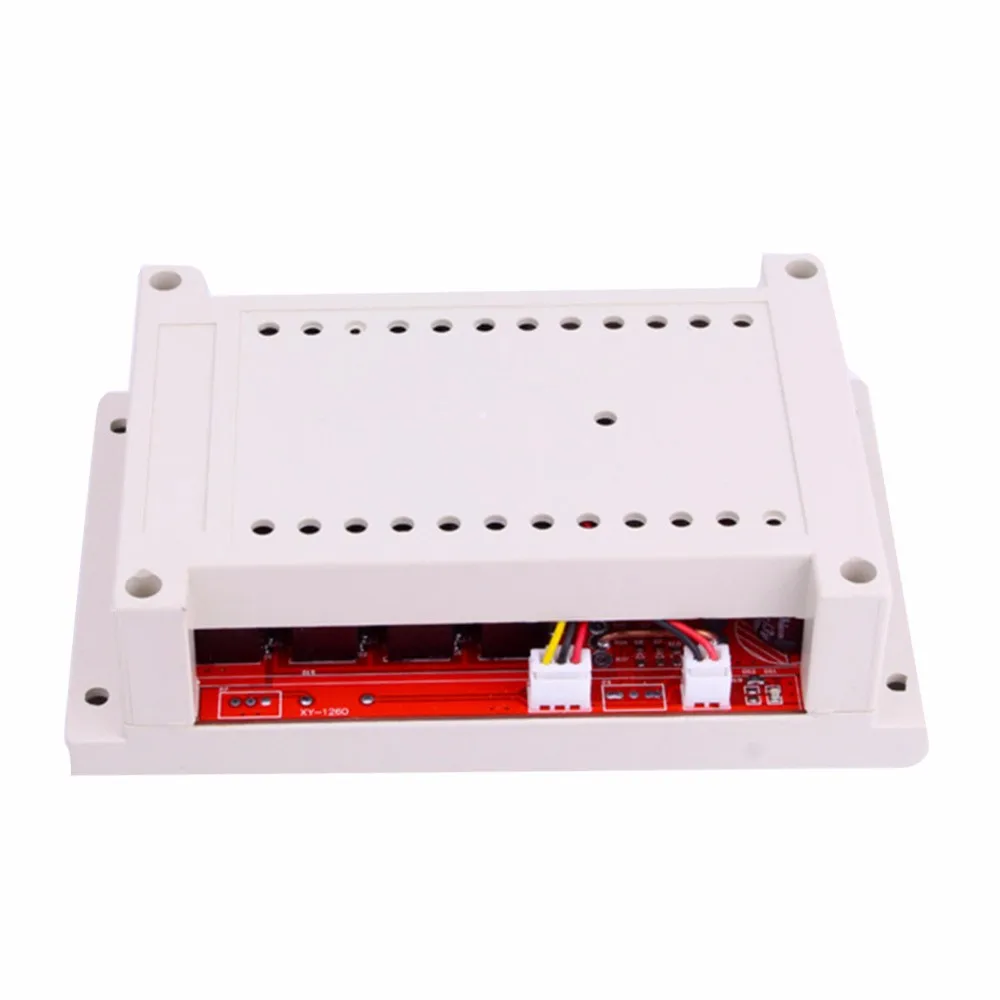

10-50V 60A Motor Speed Control PWM HHO RC Controller 12V 24V 48V 3000W MAX
Frequency : 15000HZ
Rated current: 60A(Maximum output)
Power requirement:10-50V
Control Motor Power : 0.01-3000W
12V:720W(max),24V:1440W(max)
36V:2160W(max),50V:3000W(max)
Standby current:0.04A
PWM duty cycle: 5%-100%
PWM frequency: 15khz
Working temperature: -20 -- 40 (the ambient temperature is minus 20 degrees to 40 degrees above zero) The governor is of industrial grade quality and can work stably in sub-zero environment. The general commercial grade quality governor is It is not allowed to work stably below zero.
PCB board dimensions: length 122mm, width 87mm, height 32mm (excluding the adjustment part of the potentiometer)
Case size: length 145mm, width 90mm, height 40mm
The main Applications:
1. All kinds of general-purpose brush motor speed control
2. Various types of automotive motor speed control (automobile cooling fan speed control, car fan speed control, car wiper motor speed control, car air conditioning fan speed control)
3. Production line conveyor speed control, pipeline exhaust fan speed control, treadmill speed regulation, multiple computer fan parallel speed regulation, electronic fan speed regulation.
4. All kinds of bulb dimming, various types of heater temperature adjustment.
