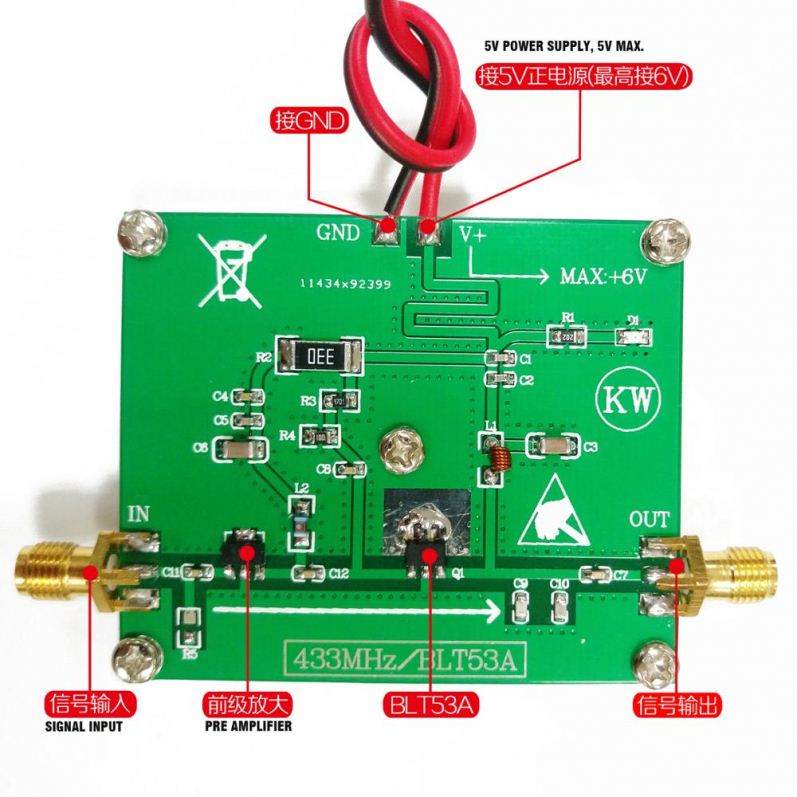

BLT53A 433M RF power amplifier 2W high power use with si4463, SI4432 data transmission module
Name: BLT53A Power Amplifier 433MHz Amplifier 315MHz Amplifier
power supply: +6V (maximum power) High voltage version Maximum power current: 700mA
size: 60mm * 50mm
input impedance: 50Ω
input power: <2dBm (with preamp)
maximum output power: 33dBm = 2W power output (measured value) to reach maximum power, such as input power is 2dBm
applicable frequency band: 300MHz~650MHz
main frequency power: 315MHz (33dBm) 433MHz (33dBm)

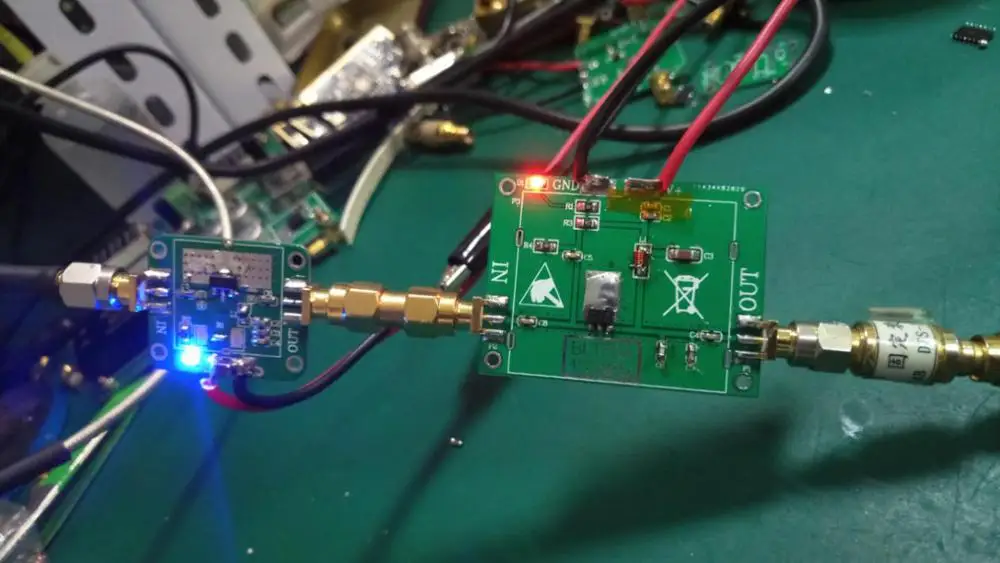

Test chart: Before entering the spectrum analyzer did a 10dBm attenuator processing
Spectrum analyzer measured 315MHz 415MHz power amplitude value:

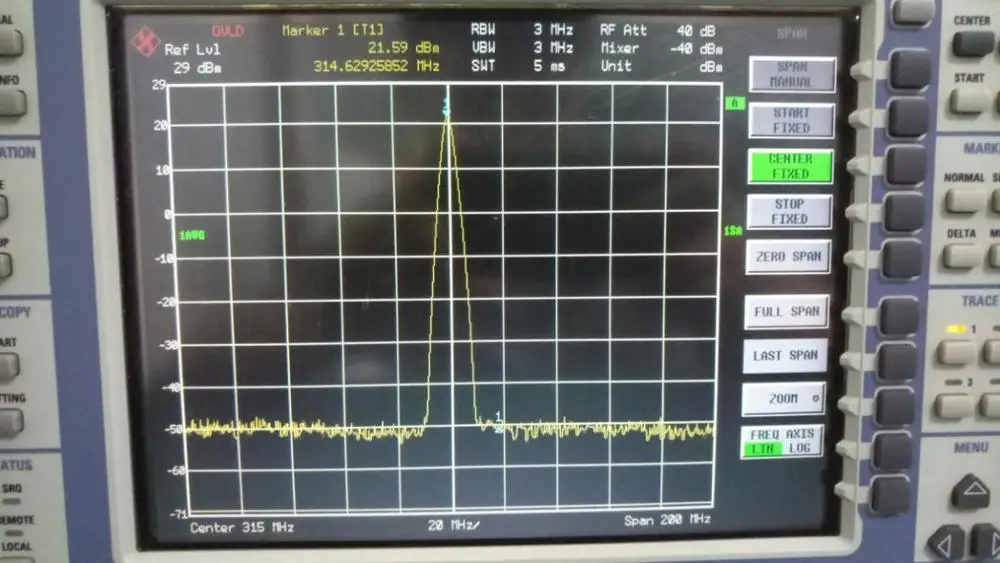

315MHz P = 21.59 + 10 = 31.59dBm
Plus line loss 0.7db, the actual power value is about: 32.3dBm

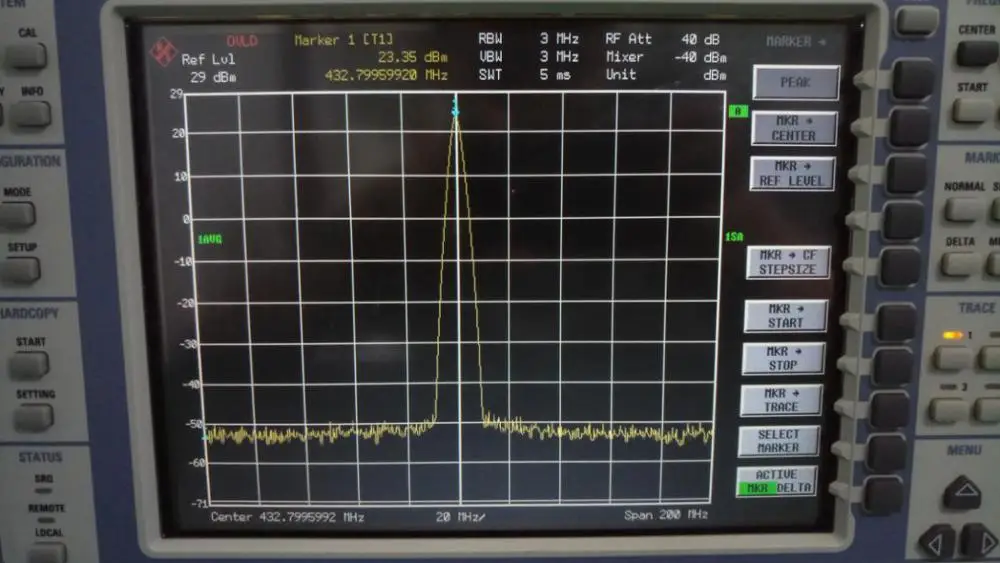

433 MHz P = 23.35 + 10 = 33.35 dBm
Plus line loss 0.7, the actual power value is about: 34dBm
