Product Description

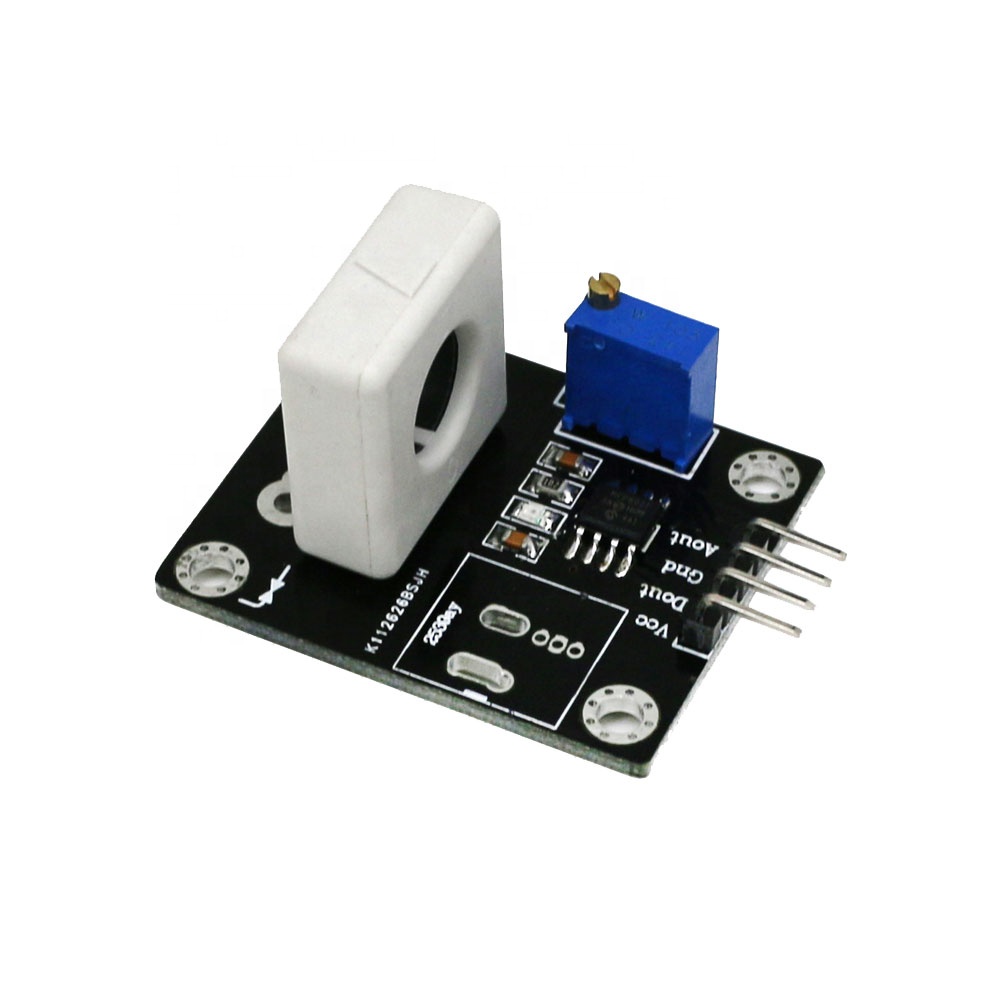

Hall Current Sensor 35A Short Over-Current Detector Protection Module WCS1500 WCS1600 WCS1700 WCS1800
| Wide current detection range | Current detection resolution | Overcurrent signal setting, detecting current | |
| WCS1500 | DC±200A | 11mV/A | ≥9A |
| WCS1600 | DC±100A | 22mV/A | ≥5A |
| WCS1700 | DC±70A | 33mV/A | ≥3A |
| WCS1800 | DC±35A | 66mV/A | ≥1.5A |

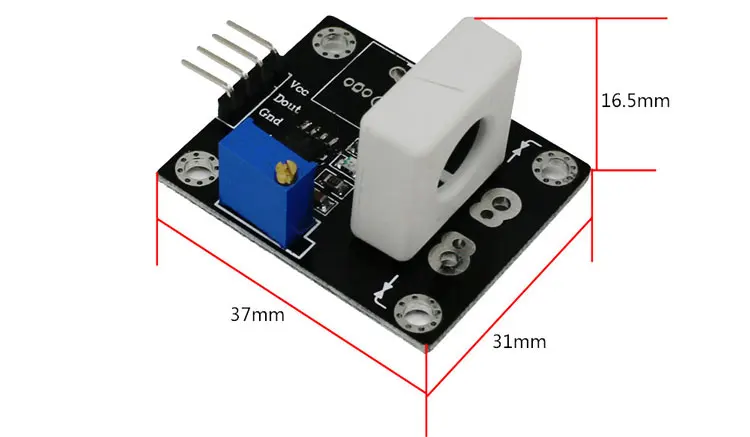

1. size: length: 37mmX width: 31mmX height: 16.5mm
2. Working voltage: DC DC 5V

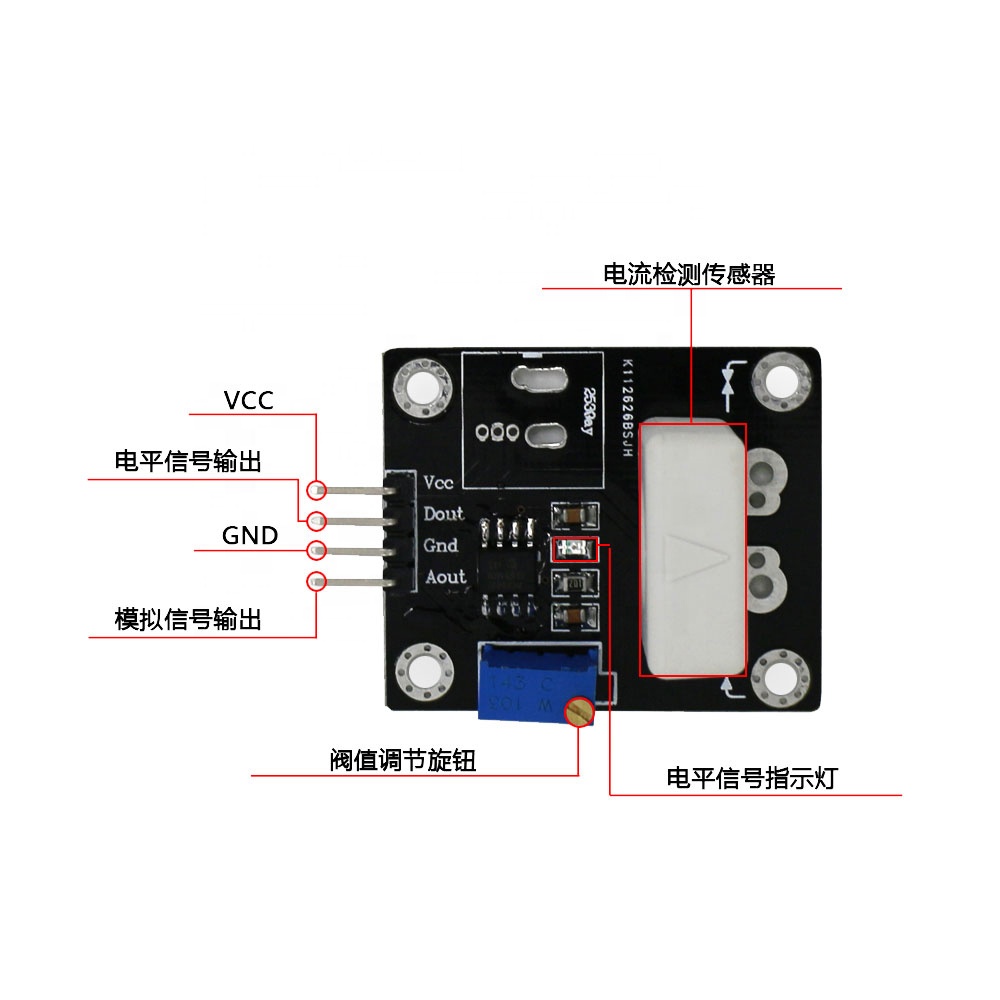

3. Features:
- It has signal output indication;
- Output overcurrent signal indication;
- with mounting hole, convenient for firmware installation;
- sampling current conversion analog signal output, ADC, TTL level signal output, can be connected to the single-chip IO port control.
- Output signal: analog signal and level signal.
