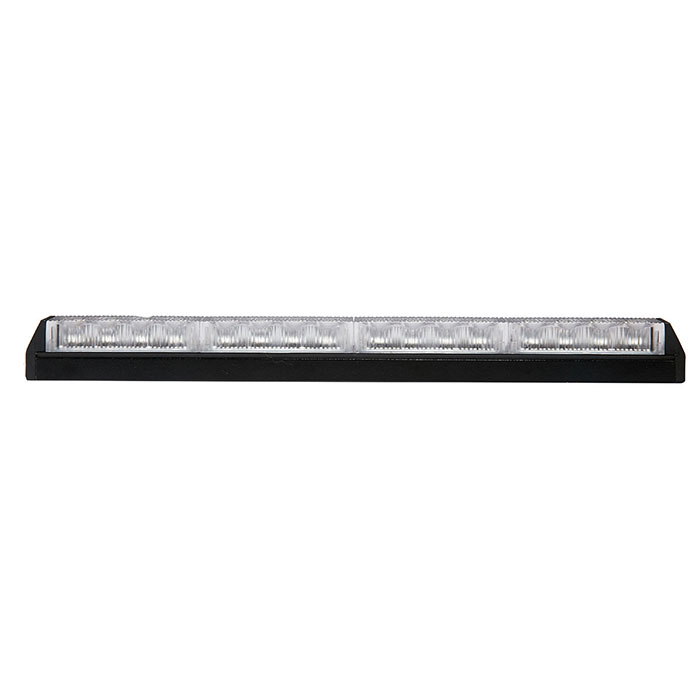

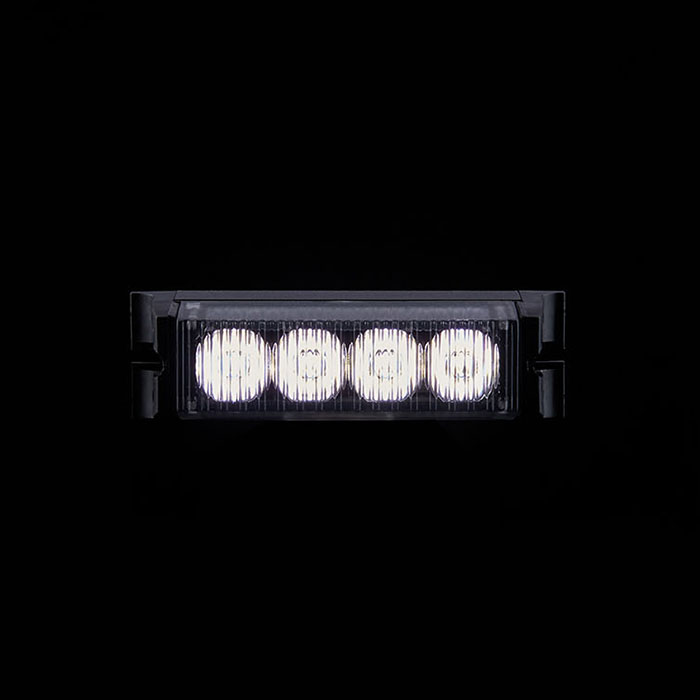

LED Light LL108 Series
Product Description
Feature
- Using high power Gen III LEDs as light sources with reliable performance and low power consume.
- Exceeding optical system,enabling excellent lighting forms and wide view angles .
- Flexible mountings optional within surface mount and bracket mount .
- Compact aluminum housing,well heat sink capability for heavy duty application
- Diversified combination options of different overall lengthes are available.
- Colours are available within red blue and amber for different combinations accorinding to CUStomer demand
- All options are available with DCl2V Or DC24v applications lnside standard flash patterns with maximum 25 options in the current design
- Product design can be customized to special demands including flash patterns and modular combinations
Technical parameter
| Model | LL108AH | LL108BH | LL108BH2 | LL108AH4 | LL108BH6 | LL108BH8 | LL108AH12 |
| L(mm) | 98.5 | 116.1 | 205.3 | 316 | 568.1 | 749.5 | |
| W(mm) | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 |
| H(mm) | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Mounting | Permanent | Permanent | Permanent | Permanent | Permanent | Permanent | Permanent |
| Rated Voltage | DC12V/24V | DC12V/24V | DC12V/24V | DC12V/24V | DC12V/24V | DC12V/24V | DC12V/24V |
| Current Draw | 500mA | 1A | 700mA | 1.4A | 2.1A | 2.8A | 2.8A |
| Rated Power | 6W | 8W | 16W | 24W | 48W | 64W | 72W |
| Color Options | Red,Blue, Amber,Clear | Red,Blue, Amber,Clear | Red,Blue, Amber,Clear | Red,Blue, Amber,Clear | Red,Blue, Amber,Clear | Red,Blue, Amber,Clear | Red,Blue, Amber,Clear |
| Net Weight | 0.183KG | 0.193KG | 0.68KG | 0.94KG | 1.45KG | 1.94KG | 2,15KG |
