Product Specifications:
Light Fixture: Acrylic acorn with translucent texture. Polycarbonate base assembly slides over the 3" outer dimension pole and is locked-in place with 3 screws.
| LED Power: | Lumens: | HID Equivalent: |
| 22 Watts: | 2,700 lumens | 70-100 Watts |
| 36 Watts: | 4,400 lumens | 100-150 Watts |
| 45 Watts: | 5,500 lumens | 150-175 Watts |

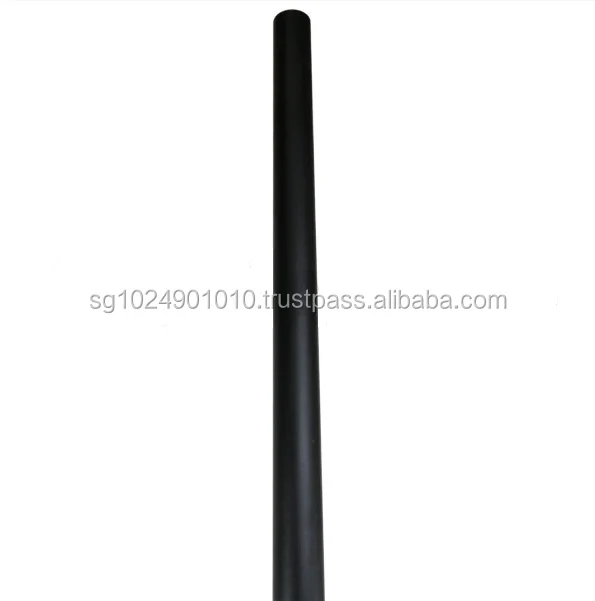

Pole: 3" diameter round aluminum pole shaft conforms to ASTM B221 with extruded 6063 aluminum heat treated post welding to T6 temper. Black powder coat.
Embedment: This pole gets embedded directly into the ground and does not require any anchor bolts. Typical embed length is 3 ft. A 1.5" grommeted cable entry is provided 18" below grade.

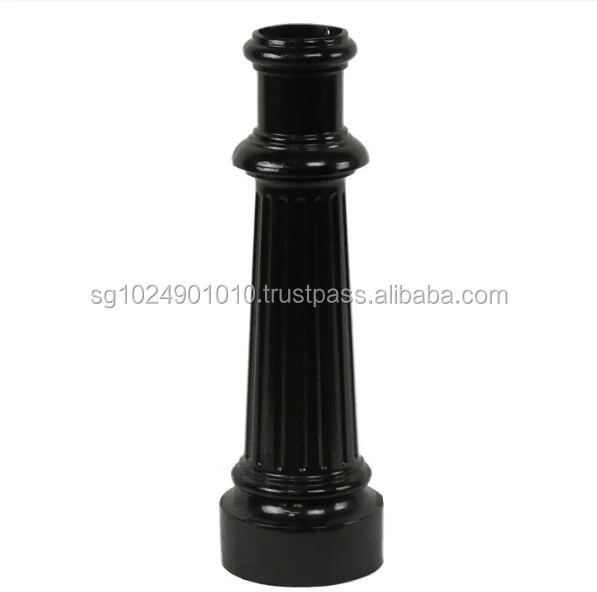

Decorative Base: Single piece cast aluminum base slides over the pole for easy assembly (before light fixture is attached to pole). Black Powder coat (the only color option).
Color: Entire assembly is powder coated in Black. No other color options are available.
Maximum wind rating (with EPA of 1.0):
- 8 ft. above-grade – 180 mph
- 10 ft. above-grade - 160 mph
- 12 ft. above-grade - 140 mph
- 14 ft. above-grade - 140 mph
- 15 ft. above-grade - 120 mph
Dimensions:
- Base Height: 25"
- Base Width: 7"
- Aluminum pole diameter: 3"
- Available above grade heights: 8 ft, 10 ft, 12 ft, 14 ft, 15 ft max. Custom heights not exceeding 15 ft are available.
- Embed Length: 3 ft.
