DALI 86 86 Type Single Channel DALI Touch Panel DL8601LED Dimmer Switch
Click on the image to view the original image
Product： views：6DALI 86 86 Type Single Channel DALI Touch Panel DL8601LED Dimmer Switch
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2020-12-17 10:53
  Negotiated
Product Details



DALI 86 86 Type Single Channel DALI Touch Panel DL8601LED Dimmer Switch

LED Dimmer Switch

 dmx512 decoder led driver dmx512 decoder led driver
Sumerize:
DL8601 is a LED dimmer switch that can be used for DALI dimming controlling. It is powered by the DALI power bus which output from the DALI power supply or DALI control system. It has dip switch which can control the DALI driver according address. You can set single address, group address, scene address or broadcast address as you like.  Please read the manual carefully before using.

Features:
1, Optional DMX 512 wired output, control DMX lamps and lanterns.
2, The DMX to PWM dimming technology has almost perfect dimming and toning performance.
3, Supporting multi-connection control of multiple panels.
4, Beautiful appearance design, simple and fashionable.
5, Can be used to adjust the color and brightness of RGBW LED lights.

Technical Parameters:


Model No.

DL8601

Power Supply

DALI Power

Output Signal

DALI

Dimming Key

1CH Control

Working Temperature

-30~55℃

Dimensions

L86*W86*H36mm

Package Size

L113*W112*H50mm

Gross Weight

200g

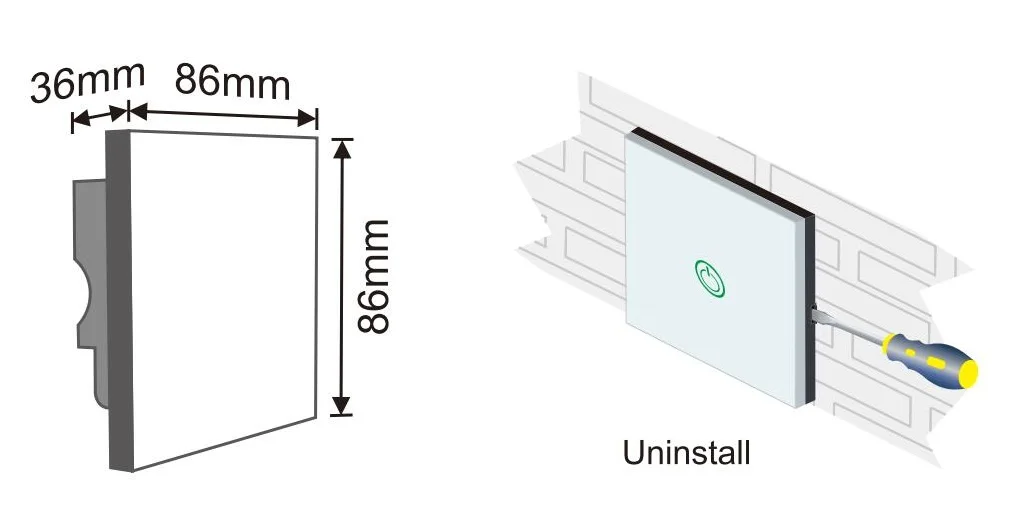

Product Size and Installation:



 Specifications of LED Dimmer Switch Series:



Model No.Input VoltageOutput SignalControl Channels

Max Current Load

Max Output PowerControl Type
DM8088AC90-250VTRIACN/A2.5A

630W

Know Switch
DW8080Passive0/1-10VN/AN/AN/AKnow Switch
DL8601DALI PowerDALI1CHN/AN/ATouch Panel
DL8602DALI PowerDALI2CHN/AN/ATouch Panel
DL8603DALI Power

DALI

3CHN/AN/ATouch Panel
DL8604DALI PowerDALI4CHN/AN/ATouch Panel
DMX8601AC100-240VDMX5121CHN/AN/ATouch Panel
DMX8602AC100-240VDMX5122CHN/AN/ATouch Panel
DMX8603AC100-240VDMX5123CHN/AN/ATouch Panel
DMX8604AC100-240VDMX5124CHN/AN/ATouch Panel



Operating Instructions:

1, Short press the green point, the switch turn ON (OFF);

    Short Press again to turn OFF (ON).

    Short press function will auotomaticly change on the next time as a cycle.

2, Long press the green point, the brightness will increase (decrease),

    Long Press again, the brightness will decrease (increase)

    Long press function will auotomaticly change on the next time as a cycle.



Product On-line:

Notes about DALI System Connection:

1. Use of switching power supply power on before, please check whether the input and output lines connect to (alternating current (ac) line of fire, zero line, the grounding wire, dc voltage positive and negative), suggest using wire sectional area more than 0.75 mm copper wire; In order to ensure the safety of using and reduce interference, please ensure that grounding end is good reliable grounding.

2.When dimming, the output end has the LED light indicator.

3.Touch Dim and DALI BUS signal can’t input at the same time.



DALI System Diagram:
