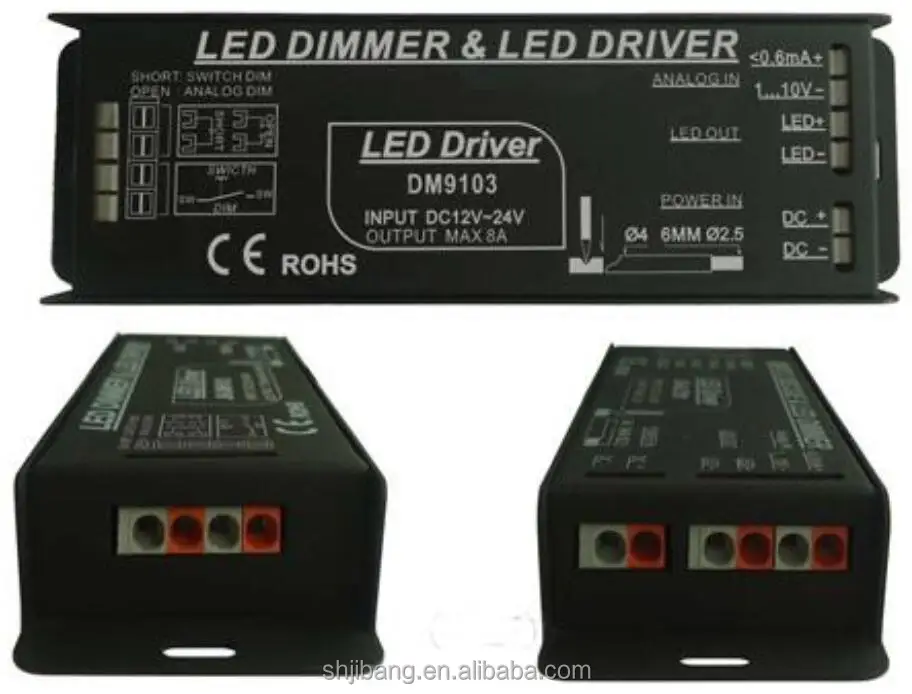

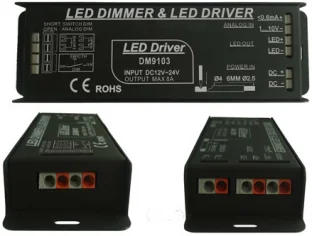

0-10V dimming driver with push dim function Push Dim driver
SUMMARIZE:
This series is 0/1-10V dimmer for led strip and other constant voltage or constant current led lamps.AC/DC products we have.No flicker on low brightness.Logarithmic brightness curve we use to get smooth and good sense for our eyes.They all compatible with products of Lutron,Dynalite,
Clipsal,LDS,Osram,Philips,ABB,Schneider,Levition,JUNG,BerKer,Be Lichtregler etc.
Keywords:0-10V DIMMER,1-10V DIMMER,PWM DIMMER,0-10V DRIVER,1-10V DRIVER,LED DIMMER,LED DIMMABLE DRIVER.
Features of Switch Dim 0-10V LED Strip Dimmer
1, Analog Signal driver,receive 1-10V dimming signal.
2, Single channel constant voltage output,Max.10A per channel.
3, Support active and passive to use.
4, With the self-test function, support short circuit and over current protection functions.
5, When the power turn off,it has memory function.
Details of Switch Dim 0-10V LED Strip Dimmer
Control channels:1CH | Input: DC12V-24V | Output :10A/CH Max10A |
MAX Power:120W(12V)/240W(24V) | Frequency: 500HZ | The light gray level: 256 |
Signal Input:0-10V Signal/Switch Dim | Connection: Press button | Protection grade: IP40 |
Product size: L160*W47*H22(mm) | Net Weight:220g | Work Temp.: -30~70℃ |
| Model NO. | Channels | Input Voltage | Max Current Load | Max Output Power | PWM Socket |
| DM9100 | 1CH | DC12V~24V | 1CH*10A | 120W(12V)/240W(24V) | Press button terminal |
| DM9103 | 1CH | DC12V~24V | 1CH*10A | 120W(12V)/240W(24V) | Press button terminal |
| DM9135 | 1CH | DC12V~24V | 1CH*6A | 72W(12V)/144W(24V) | Press button terminal |
| DM9138 | 3CH | DC12V~24V | 3CH*6A | 216W(12V)/432W(24V) | Screw terminal |
Function Instructions of Switch Dim 0-10V LED Strip Dimmer
Operation explanation
1,First way is selecting switch panel to dimming (normally open panel switch mode), must put the interface (SWITCH DIM) short circuit.
2, When short time press the switch is opening or closing state, the booting has memory and brightness delay light or dark function. Can realize switch light once light up or down instant.
3,When press the switch with a long time,the brightness plus or minus state, long press process then stop, and in 2 seconds again continue long press, so it will keep at the last time brightness state, if is over 2 seconds long press again, then brightness will be instead state control (example: the current light state is added brightness, when adjust to 50% brightness stop, if in 2 seconds long press again, then the brightness from 50% to continue upward, or it will down from 50% brightness).
4,The second way, choose active 0/1-10 v or passive signal control, it is necessary to put the line to jumper(SWITCH DIM line break down), according to the product connection diagram, adjust the 0/1-10 v dimmer SWITCH, so as to change the output of the controller, until get the satisfactory of LED output luminance.
5,In the second way,when the [Analog IN ]port breaking, controller all light output; When the[ Analog IN ] port two terminals short circuit, the output shut down.

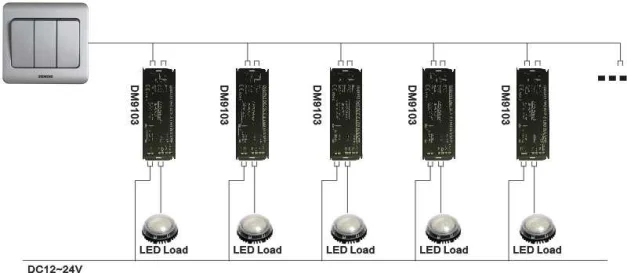

Wiring Diagram
Remark:
1. Please choose regulating curve smooth 0/1-10 V dimmer, otherwise it may directly affect the LED dimming smoothness.
2. Load LED's voltage and the controller of power supply voltage must be consistent, and must be in the product prescribed voltage input range.
3,0/1-10V Active and Passive dim signal input can get 0-100% brightness output and the dimming curved path is proportional to the dim signal.
