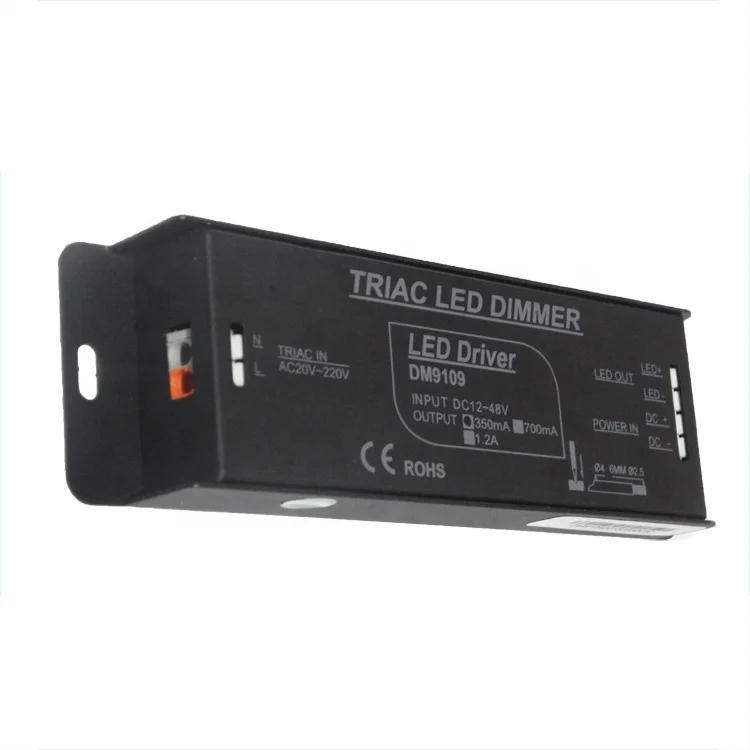

Leading/trailing Edge Dimmer 16w/32w/56w Constant Current 12v 48v Triac Dimmer
48v triac dimmer
SUMMARIZE:
This series is triac driver for led strip,led down-light and other constant voltage or constant current led lamps . We offer AC and DC input products.No flicker on low brightness.We use logarithmic brightness curve to get smooth and good sense for eyes.They're all compatible with products of Lu-tron,Dynamite,Clip-sal,LDS,Os-ram and so on .
Keywords:Triac Dimmer,Triac Dimmable Driver,PWM Driver,ELV Dimmer,ELV Driver,LED Driver,LED Dimmer,LED Dimmable Driver.
Features of constant current 12v 48v triac dimmer:
1,Triac dimming,input dimming signal:AC20V~220V.
2,Support all the triac dimming system,such as Lu-tron,Dynamite,Clip-sal,LDS,Os-ram.
3,single channel output constant current dimming control . MAX.1.2Amp/CH
4,No flicker,the dimming curve is more smooth.
5,Can realize 0 ~ 100% brightness range dimming.
Tech-parameter of constant current 12v 48v triac dimmer:
Control channels:1CH | Input: DC12-48V | Output :350mA/700mA/1.2A |
MAX Power:16W/32W/56W | Frequency: 1000HZ | The light gray level: 1024 |
Signal Input:Triac(AC20V-220V) | Connection:Safer Screws | Protection grade: IP40 |
Product size: L160*W47*H22(mm) | Gross Weight:220g | Work Temp.: -20~70℃ |
According to the connection diagram of products, the load LED and power connect to the right port by the positive and negative, open the power supply, adjust the Triac controller voltage, so as to change the output of the controller, until satisfactory LED output Luminance so far.
Wiring Diagram:
Remarks:
1,AC20-220V dimming signal input can get 0%-100% brightness output,and the dimming curve smoothness is proportional to the input dimming signal.If the brightness can’t get to 0% ,please check the AC20-220V dimmer whether can get to the lowest dimming voltage. If the brightness can’t go to 100%,please check the input voltage whether can get to the highest voltage.
2,Input voltage must be fit the production work voltage.
3,Do not overload.
4,Before commissioning of the power,should ensure that all wiring is correct before electricity.
5,If failure,do not privately maintenance,please contact the supplier.
