Product Description
Most Popular Unique design 100W 150W 200W 240W LED High Bay Lights with Meanwell driver and 5 years warranty
Big Advantages:
1.This Cibay-S High Bay light adopt built-in microwave sensor developed by Signcomplex,which adopts patent design and can save over 90% of labor time as it do not need wiring;
just rotate clockwise to tighten the sensor by hand,then finish sensor installation,so easy! 100%clients enjoyed very much after testing the samples!
2.In the meanwhile,it reduces user inventory greatly,Using together with this intelligent microwave sensor,all traditional Cibay-S High Bay light can realize both function of motion sensing and light sensing;
3.the maximun using environment temperature is 60,which is applicable to use in environment under particularly high temperature!
4.The plug&play sensor is our patent design,have used in UFO,linear high bayII,Area light etc,it is big advantage,don"t miss the good opportunity!many our big clients start bulk purchasing!
with Competitive price,highly cost-effective!
Parameters:
| Model No. | CB-100-AH/AW-60K-SDYY/SSYY | CB-150-AH/AW-60K-SDYY/SSYY | CB-200-AH/AW-60K-SDYY/SSYY | CB-240-AH/AW-60K-SDYY/SSYY |
| Power | 100W | 150W | 200W | 240W |
| Input Voltage | AC100-277V/ 100-240V/ 220-240V / 200-480V | |||
| Frequency | 50-60Hz | |||
| Efficiency | 135lm/w / 170lm/w | |||
| IP Grade | IP65 | |||
| Luminous | 12300-13400lm | 18480-20190lm | 24810-27260lm | 29850-32340lm |
| Driver | Meanwell ,LIFUD,SOSEN etc | |||
| LED Chip | SMD2835 | |||
| LED Qty | 240pcs | 368pcs | 492pcs | 544pcs |
| Material | Aluminum+Tempered cover | |||
| Beam Angle | 120 /90/60degree | |||
| Dimmable&Sensor | 0-10V Dimmable, Microwave sensor,infrared sensor | |||
| Warranty | 5 years | |||
| Certificate | CE ROHS ,UL | |||

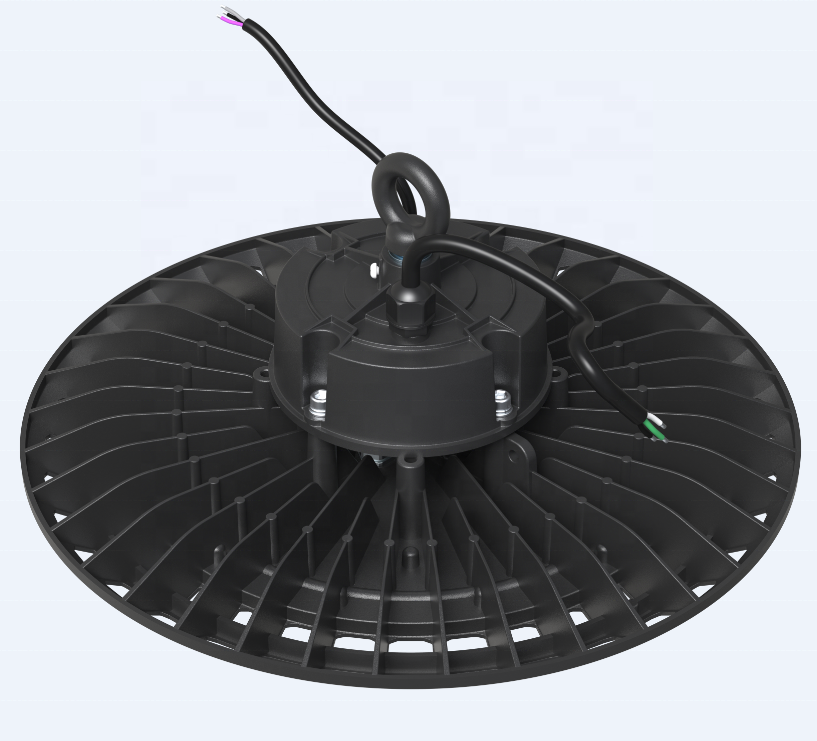

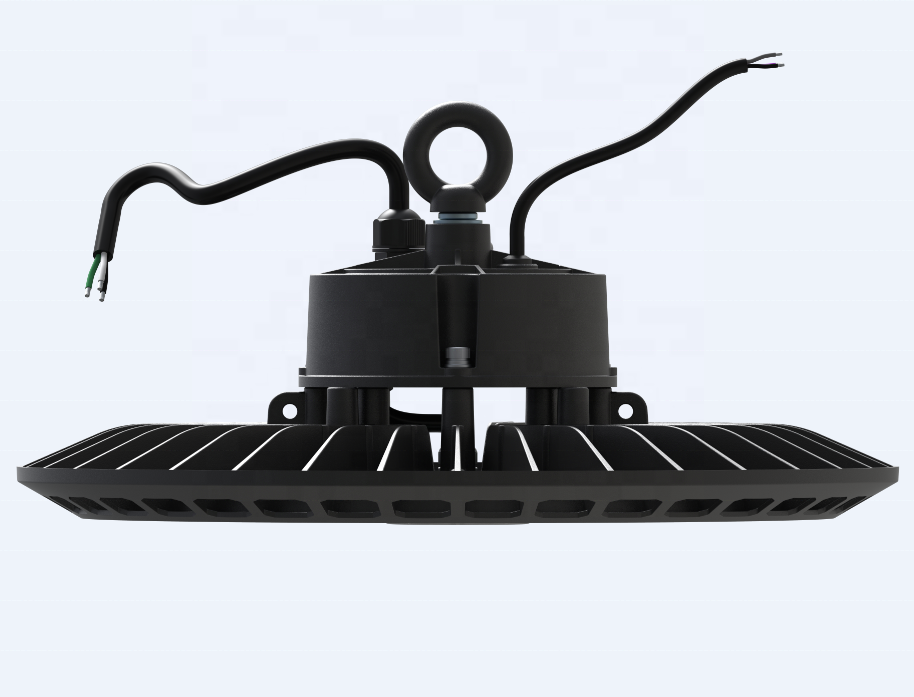

Pictures:
Dimension:
Applications:
Company profile:
