Product Description

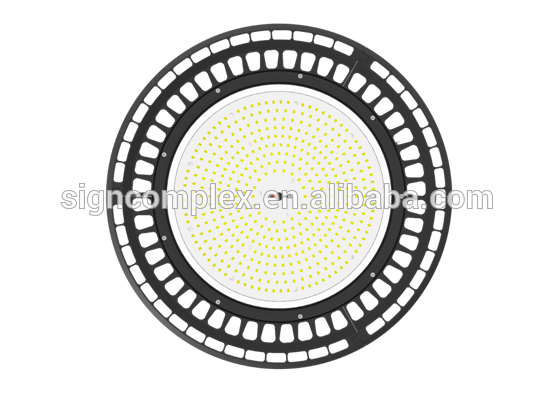

Conductivity 96W/m.K ADC12 Aluminum alloy lamp body LED High Bay Light 150W with Real 130LM/W
Advantages:
- Completely unique, novel, fashion and slim design, much more beautiful appearance, very popular in the market.
- No lampshade, easy and convenient to package, transportation and installation, save 60% freight cost and mounting cost.
- Suspending installation with strong rings, wall mounted and ceiling mounted with thickness bracket, to meet various lighting atmosphere.
- Adopted structure waterproof design, waterproof grade is IP65, instead of IP54.
- High lighting efficiency 130LM/W SMD2835, CRI>80, UGR<25.
- Meanwell HBG Led driver, 5 years warranty.
Parameters:
| Model No. | CB2-100-AW-W-01 | CB2-150-AW-W-01 | CB2-200-AW-W-01 | CB2-240-AW-W-01 |
| Power | 100W | 150W | 200W | 240W |
| Input Voltage | AC100-277V | |||
| Frequency | 50-60Hz | |||
| Efficiency | 130lm/w | |||
| IP Grade | IP65 | |||
| Luminous | 11370-12580lm | 17030-18820lm | 22800-25320lm | 28070-30320lm |
| Driver | Meanwell HBG series (IP67) | |||
| LED Chip | SMD2835 | |||
| LED Qty | 210pcs | 336pcs | 420pcs | 546pcs |
| Material | Aluminum+Tempered cover | |||
| Beam Angle | 120 degree | |||
| Dimmable&Sensor | 0-10V Dimmable, Wavesensor | |||
| Warranty | 5 years | |||
| Certificate | CE ROHS are pending | |||
Pictures:
Dimension:
Installation ways:
Applications:
Company Information
About Signcomplex:
1. TUV ISO 9001:2015 certified company.
2. Focus on LED Lighting field for 10 years.
3. More than 600 employees, 50 R&D team, 110 sales team.
4. 3 buildings, over 25,000 square meters factory area.
5. TOP 10 led lighting suppliers in US since 2013.
Signcomplex Product Show room:
Factory scan, sales office:
Lighting Fair:
Signcomplex Equipment, R&D software, Certificates
