Home > Products > rgb tape light addressable rgb led strip
rgb tape light addressable rgb led strip
Click on the image to view the original image
Product: views:6rgb tape light addressable rgb led strip
Branch: Signcomplex
Type: Flex LED Strips
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:40
  Negotiated
Product Details
Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
DC12V/DC24V
Lamp Power:
14.4W/M
Lamp Luminous Flux(lm):
160lm
CRI (Ra>):
80
Working Temperature(℃):
-20 - 35
Working Lifetime(Hour):
50000
Lamp Body Material:
PVC
Certification:
CE, GS, RoHS, UL
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
digital addressable rgb led strips with wifi control
Light Source:
LED
Strips led lights:
China supplier
5050 led strips:
wifi control
Item Type:
Light Strips
Emitting Color:
RGB
Color Temperature(CCT):
RGB
LED Light Source:
SMD5050
Supply Ability
Supply Ability:
600000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
Dimension:
36*36*37 cm,
10 Roll/CTN,
Gross weight: 9 KG
Customize pakage is also available
Port
Shekou
Lead Time:
Shipped in 10 days after payment
Product Description

RGB programmable neon strips

Model No.
Color
lm/m
Max. length
w/m
Voltage
Certification
Warranty
Unit
SC-ESID-943-12V
RGB
160
50 m
14.4
12 VDC
CE, RoHS
3 years
5 m/roll
SC-ESID-943-24V
RGB
160
100 m
14.4
24V DC
CE, RoHS
3 years
5 m/roll

Advantage:


1. Compatible with IC type of WS2811,WS2812B, SM16703,LX1203, P9883

2. Individually working by groups, transmissionresumingat break-points

3. Structural waterproof, IP68 rated,can be used under waterproof

4. Provide full accessories to keep itIP68 water-proof rate afteryour DIY cutting

5. Magic dream color ,interchange controllers ,self -write programmable

6. TPU + PVC , first-class eco-friendly UV-resistant material

7. Great lighting effects,uniform light, light source invisible

8. Widening cover design, better waterproof, can greatly protect the light bar

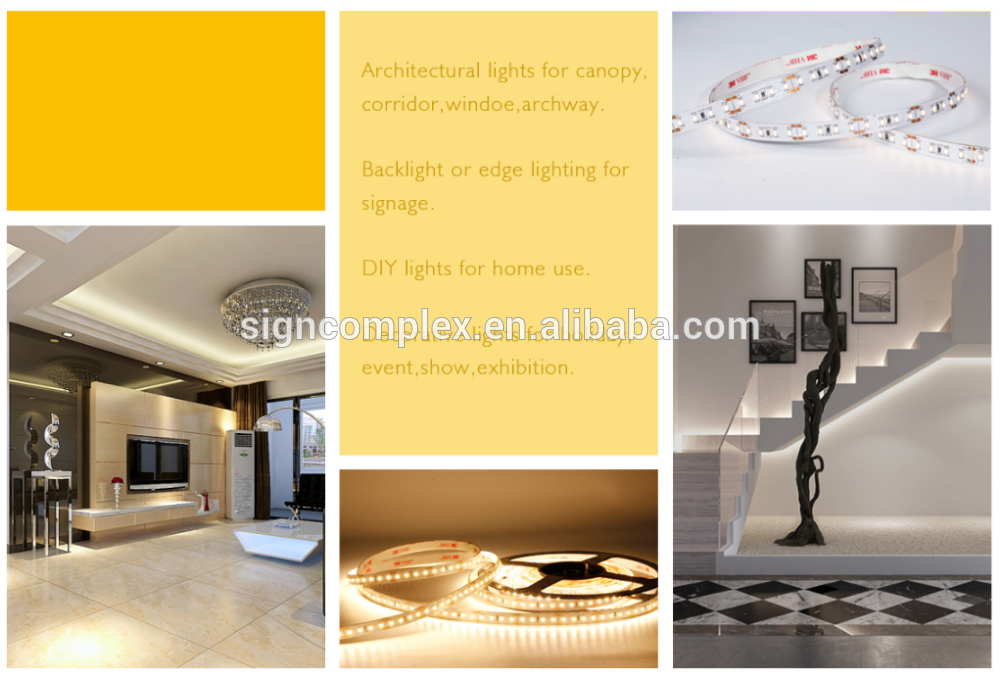

Application

1. ndoor and outdoor architectural outline decorations, walkway and park guiding-line

2. lighting system, landscaping

3. bridge, sculpture, building contour, and board fringe illuminating decoration

Detailed Images
Special process

1. 24h dehumidification─make sure stable working status and long lifespan of the LED

2. Double-sided welding─more stable and ensures stable current and the less voltage drop

3. cleaning after welding─elegant shape

4. 8h burning test─select malfunction in the early

5.self-test, IPQC in each process─strict quality control

Packing & Delivery

36*36*37 cm, 9 KG   ,10 Roll/CTN
