Home > Products > IP20 white color flexible 10mm led strip 3020 led strip

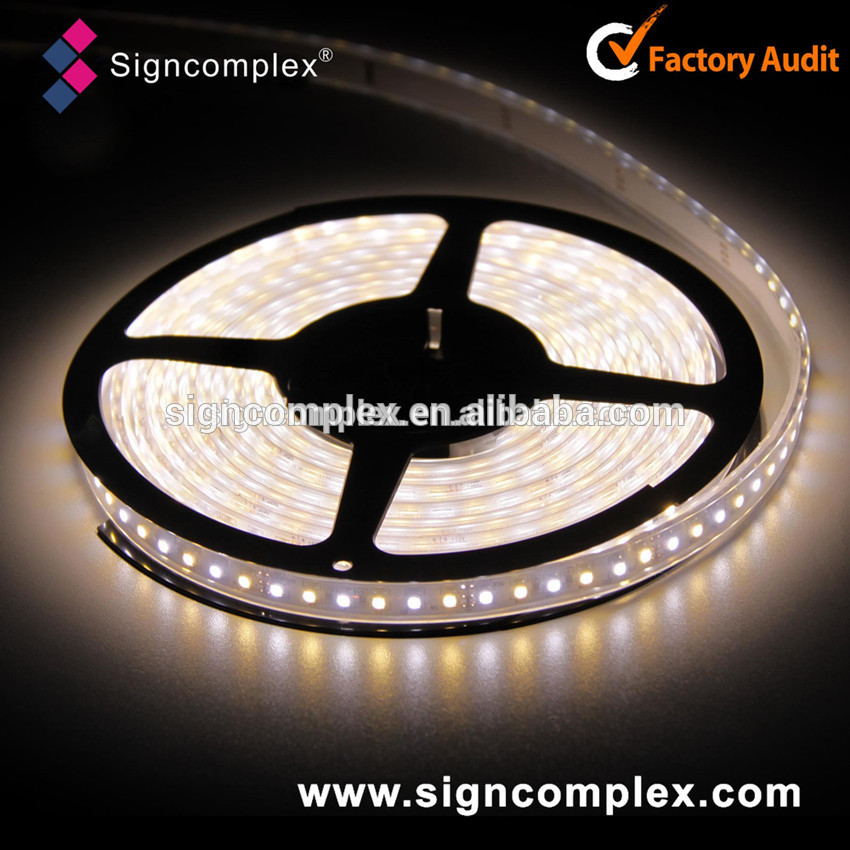

IP20 white color flexible 10mm led strip 3020 led strip
Click on the image to view the original image
Product： views：23IP20 white color flexible 10mm led strip 3020 led strip
Branch： Signcomplex
Type： Flex LED Strips
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:44
  Negotiated
Product Details
Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
12VDC
Lamp Power:
19.2w/m
Lamp Luminous Flux(lm):
1220lm/m
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Lamp Body Material:
PC
Certification:
CE, EMC, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Signcomplex
Model Number:
SC-BID-W
Application:
Backlight or edge lighting for signage...
Light Source:
LED
Color Temperature(CCT):
white
LED Light Source:
3020 SMD LED
Emitting Color:
Natural White
Beam Angle(°):
120
Color:
White/Warm White/Natural White
IP Rating:
IP20
LED Quantity:
600
Current (Amps/m):
1.6
Length (m):
5
Continuous Connection(m):
5
Item Type:
Light Strips
Supply Ability
Supply Ability:
60000000 Roll/Rolls per Month
Packaging & Delivery
Packaging Details

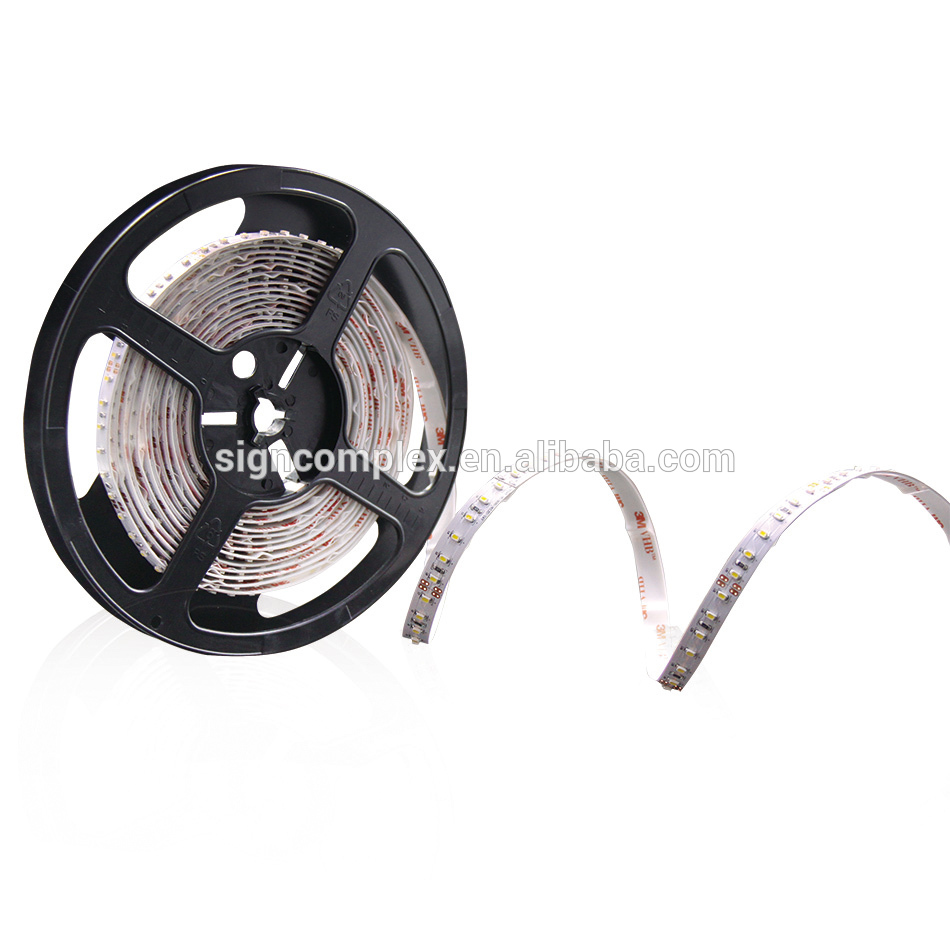

5 meters/reel as an unit wrapped around a disk, each disk is packed by anti-static bag.
Port
Yantian Shenzhen and Hongkong

IP20 white color flexible 10mm led strip 3020 led strip



Application

-Cove lighting
-Architectural lights for canopy,corridor,window,archway
-Backlight or edge lighting for signage
-DIY lights for home use
-Path and contour marking
-Decorative lights for holiday,event,show,exhibition



Technical parameters



Model NumberColorLight Outpu
(lumen/m)		LED
Q’ty		LED TypeLength
(m)		Beam Angle
(degrees)		Voltage
(V DC)		Current
(Amps/m)		Max.Power
Consumption
(W/m)		IPContinuous
Connection
(m)
SC-BID-WWhite12206003020 SMD
LED		5120°121.619.2205
SC-BID-WWWarm White850
SC-BID-NWNatural White1090
SC-BID-W-24VWhite1220240.8
SC-BID-WW-24VWarm White850
SC-BID-NW-24VNatural White1090







Model NumberColorLengthLEDLED TypeLight OutputBeam Angle
(m)Q’ty(lumen/m)(degrees)
SC-IB-NWNatural White53003528 SMD  330120
SC-IB-WWhite53003528 SMD390120
SC-IB-WWWarm White53003528 SMD320120
SC-IB-NW2Natural White56003528 SMD640120
SC-IB-W2White56003528 SMD780120
SC-IB-WW2Warm White56003528 SMD660120







Printed circuit board layout



Production of flowsheet:

QC Flow sheet:
