Home > Products > 100lm/w cob 20w pir led floodlight IP54 with CE ROHS
100lm/w cob 20w pir led floodlight IP54 with CE ROHS
Click on the image to view the original image
Product： views：20100lm/w cob 20w pir led floodlight IP54 with CE ROHS
Branch： Signcomplex
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:44
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC 100-240V 50/60Hz
CRI (Ra>):
70
Beam Angle(°):
100
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP54
Certification:
CE, RoHS
Place of Origin:
China
Brand Name:
Signcomplex
Model Number:
FL-020-AW-WW-10
Light Source:
LED
Lamp Luminous Flux(lm):
1770
Working Temperature(℃):
-10 - +40
CCT:
2700-3200K
PF:
≥0.9
Gross Weight (Kg):
1.35kg
Detection range:
180°
Net weight:
1.15 KG
Max Current:
0.26A
Shel l color:
Grey, Black
item:
100lm/w cob 20w pir led floodlight IP54 with CE ROHS
Item Type:
Flood Lights
Color Temperature(CCT):
Warm White
Lamp Power(W):
20
LED Light Source:
COB
Lamp Luminous Efficiency(lm/w):
100
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Common industrial packaging,Inner box and carton
Port
Shenzhen and Hongkong
Lead Time:
5-15days



100lm/w cob 20w pir led floodlight IP54 with CE ROHS



20W  Flood Light
FL-020-AW

Features of the pir led floodlight :
--Aluminum die-cast alloy body and toughened glass,durable.
--Good heat dissipation performance.
--IP rating is up to Ip54.
--High utilization of power,PF ≥0.9.
--60% energy-saving than traditional ones.
--Use 1 PCS of integrated high-power COB chip .
--Service life over 50,000 hours.
--RoHS and CE Certified.


Technical Parameter of the pir led floodlight :
Input Voltage: 100-240V AC;50/60Hz.
Max Current: 0.26A
LED type: COB
LED quantity:1 PCS
Power:20W
Shel l color: Grey, Black
Net weight: 1.15 KG
Gross weight: 1.35 KG
Inner box size: 215*125*270mm
Container size: :450*395*550mm (12PCS per box)
Total weight: 17.5KG
Detection range:180°
Detection distance:Max.12m (24 ) (Adjustable) ℃
Delay time:5 sec~6 min(Adjustable)
Environmental illumination: 2~2000LUX(Adjustable)
Operating Temperature:-10~+40°C
Operating Humidity:Smal ler than 93% RH
Installation Height:1.8m~2.5m

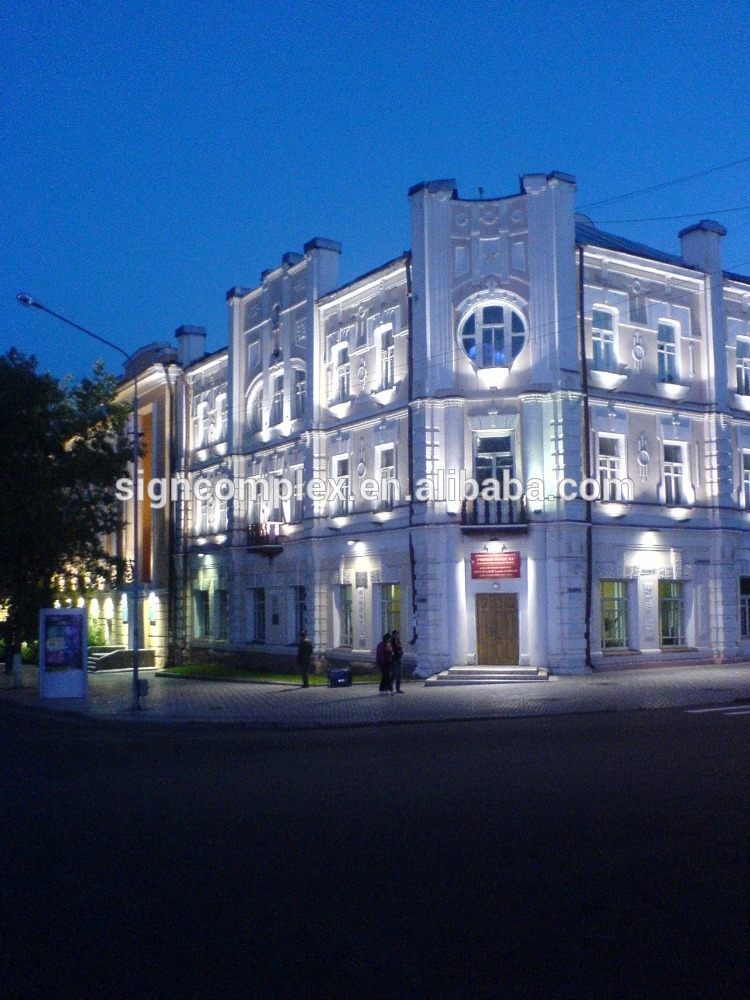

Main Applications of the pir led floodlight
Mainly used for floodl ighting, facade decoration, factory, stadium, harbor, parking lot and street lighting.



Model #CCTLED TypeLumen(lm)
(±10%)		CRIBeam
angle		Power(W)
(±10%)		Voltage
(V)		PFWeight
(Kg)
FL-020-AW-W-105500-7000KCOB1860>70100o20 AC 100-240V
50/60Hz		≥0.91.35
FL-020-AW-NW-104000-4500KCOB1990>70100o20 AC 100-240V
50/60Hz		≥0.91.35
FL-020-AW-WW-102700-3200KCOB1770>70100o20 AC 100-240V
50/60Hz		≥0.91.35

 Production of flowsheet:
