Item Description:

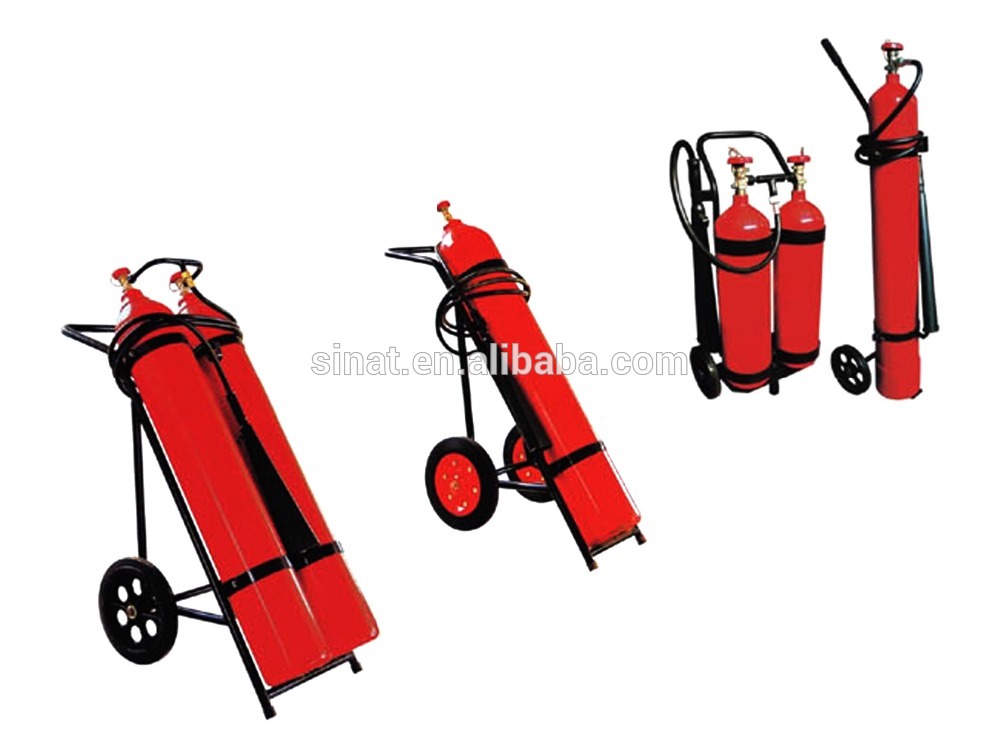

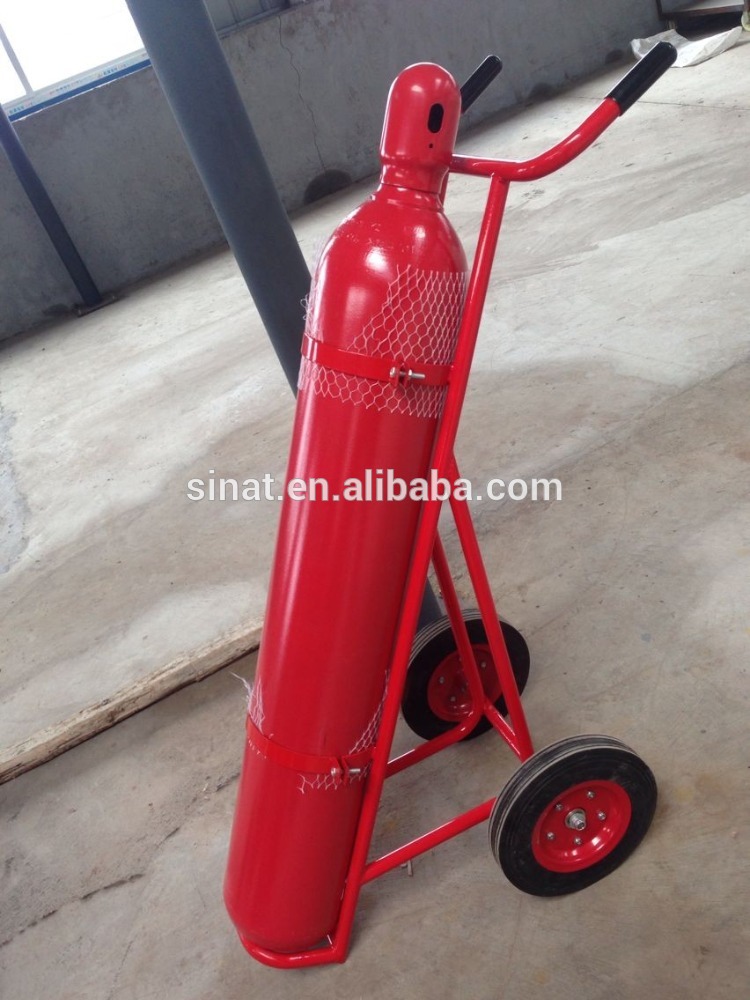

45kg trolley carton dioxide fire extinguisher
Fire agent: CO2
Temperature Range:-30℃ +60℃
Shelf Life: 3 year, suggest check per year
| Capacity | 10kg | 12kg | 20kg | 22kg | 25kg | 30kg | 45kg | 50kg |
| Out-Dia.(mm) | 152 | 159 | 103 | 219 | 219 | 219 | 267 | 219 |
| Volume (L) | 15 | 18 | 33.5 | 40 | 40 | 45 | 68 | 80 |
| Cylinder-length (mm) | 1035 | 1120 | 1160 | 1330 | 1330 | 1520 | 1510 | 1330 |
| Weight (kg) | 36 | 40 | 81 | 89 | 92 | 110 | 150 | 175 |
| Temperature Range | -30℃ +60℃ | -30℃ +60℃ | -30℃ +60℃ | -30℃ +60℃ | -30℃ +60℃ | -30℃ +60℃ | -30℃ +60℃ | -30℃ +60℃ |
| Min Wall-thickness | 5.0 | 5.0 | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 |
| Material | CK45 | CK45 | 34Mn2V | 34Mn2V | 34Mn2V | 34Mn2V | 34Mn2V | 34Mn2V |
Pictures:
Productions:
Package &Shipment:
Fire Types & Applications:
Why choose us:
1)we are proffecion in manufacture life saving products
2)OEM available and print your logo
3)we have more than 10 years customer service group and familiar with shipment
which will shipment early & smoothly and reduce the customer cost.
4)Customer service is the first and will be respond within 24 hours.
