Technical parameter
● Input voltage: 100-240VAC
● Output voltage: 100-240VAC
● Output current: 1.0A
● Output power: 100-240W
● Remote distance: 30m
● Working temperature: -30℃~55℃

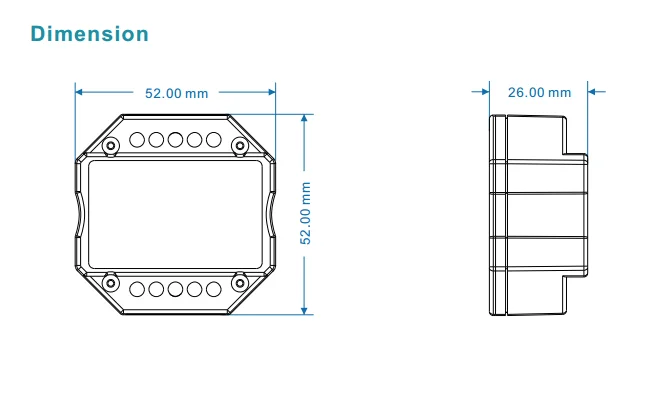

● Product size: L52×W52×H26mm
● Net weight: 56g
Summary

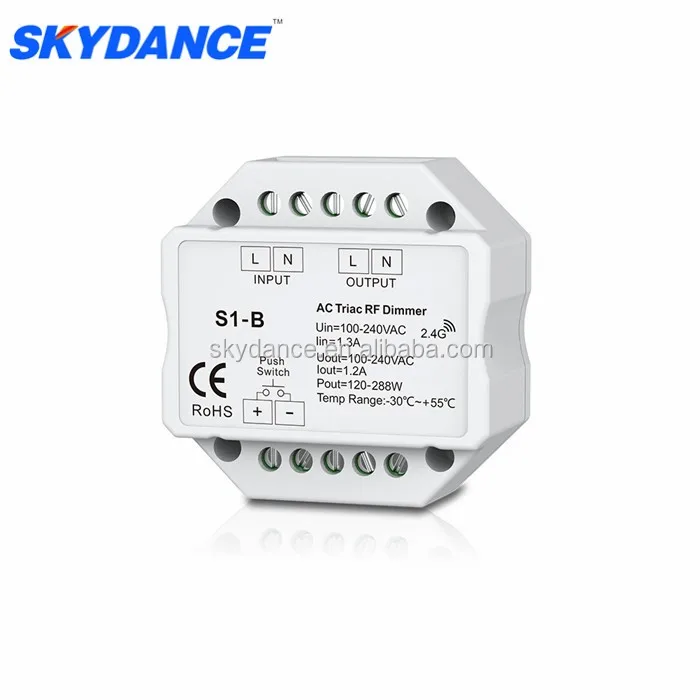

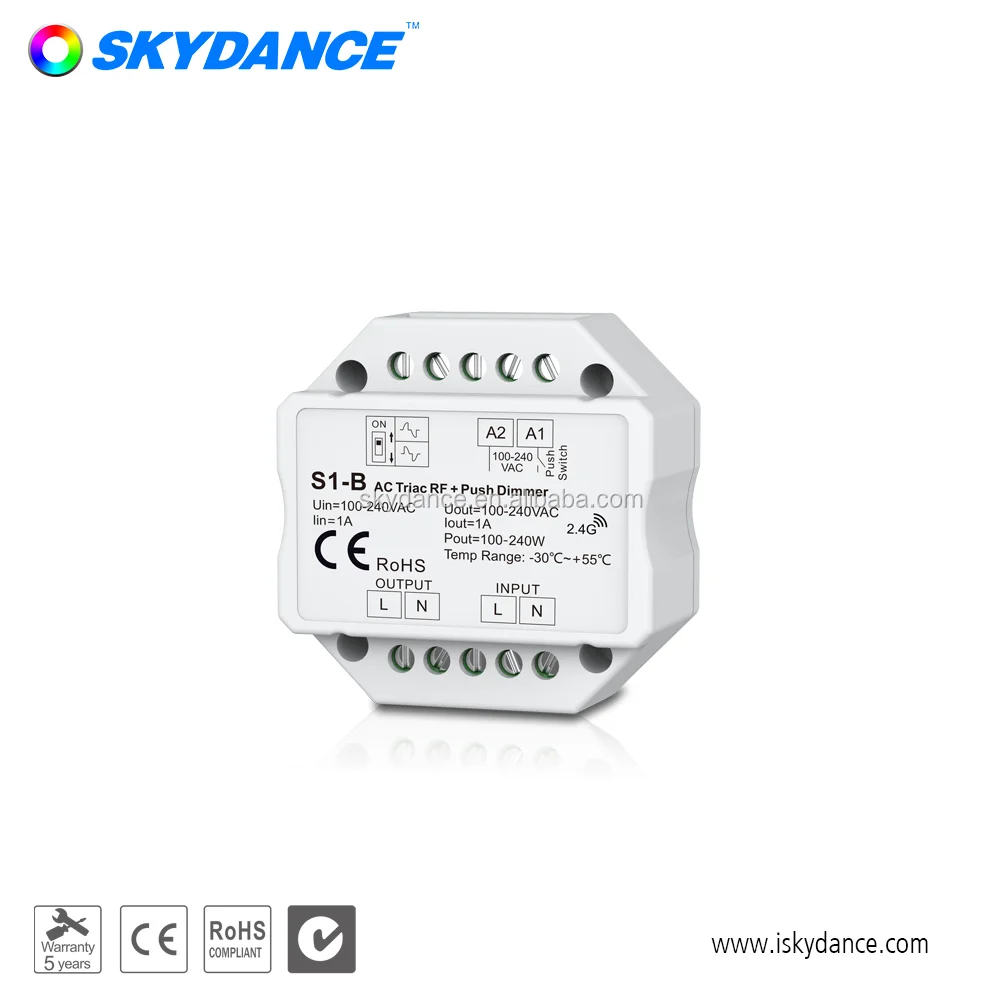

● S1-B is AC phase-cut RF + Push dimmer, also can be used as RF switch.
● SS-B is RF smart switch with relay output, without dimming function, but more power output.
● Suitable to insert standard panel bottom box.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● One RF dimmer or switch can accept up to 10 remote control.

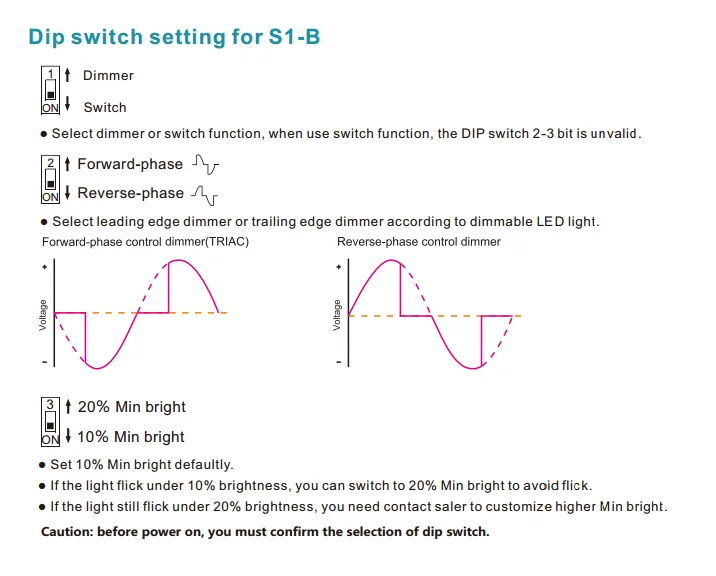

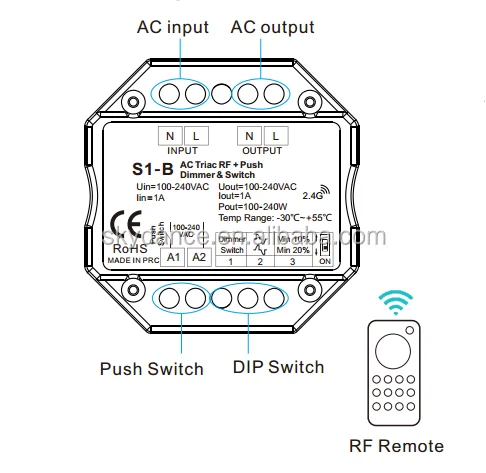

● Leading edge dimming or trailing edge dimming set by dip switch.
● Minimum brightness set by dip switch.
● Great compatibility with a variety of dimming remote.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.

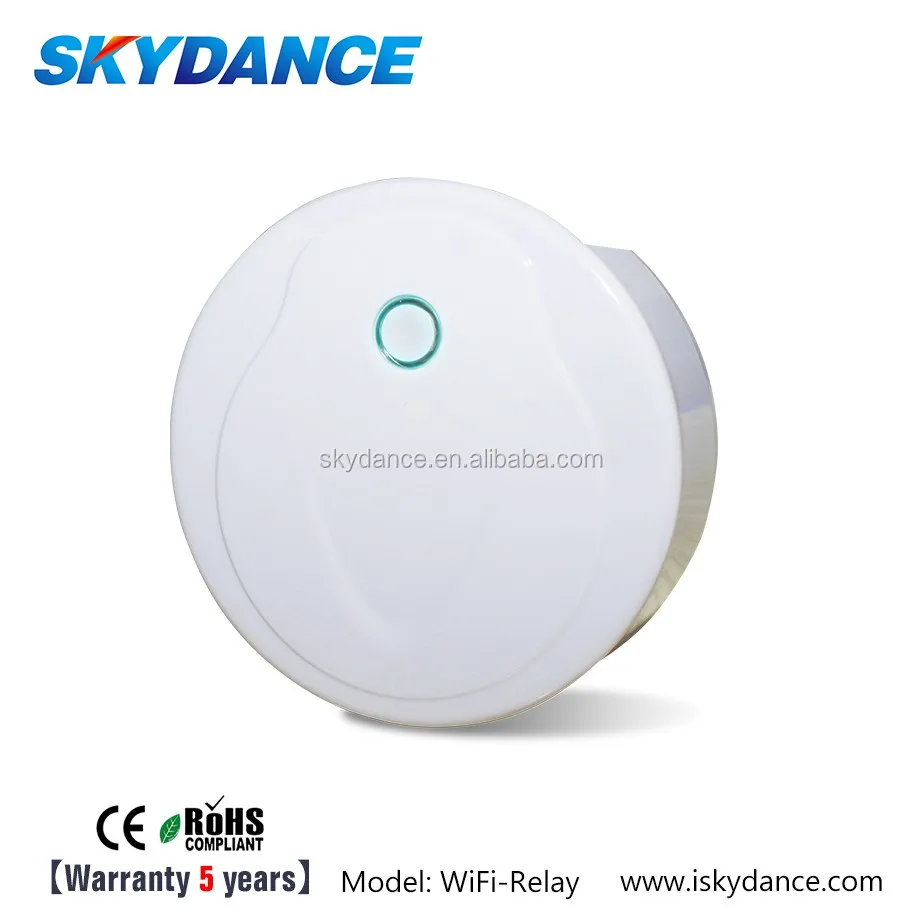

● Work with WiFi-relay controller after install APP on IOS and Android system.
Match guide
For S1-B, use power up:
1. Match: Switch off the power, then switch on power again, short press on/off key or zone key 3 times on the remote quickly within 5s after power on, the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again, short press on/off key or zone key 5 times on the remote quickly within 5s after power on, the unlink is done once the light blinks 5 times.
3. Multiple zone remote only use zone key to match each zone receiver.

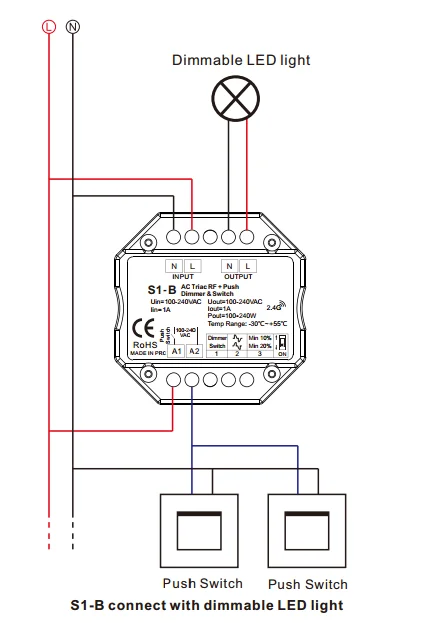

Push switch function (optional)
1. Short press: Turn on/off light.
2. Long press(1-5s): When light is on, increase or decrease brightness continuously.
3. Long press(10s): When multiple dimmers share a push switch, achieve simultaneous adjustment.
Video of using Led controller
https://www.youtube.com/watch?v=eCVlGa8ugpo
https://www.youtube.com/watch?v=JiavTf7XFN8
Payment Terms:
1. Payment: T/T, Western Union, PayPal
2. MOQ: 30pcs and sample order acceptable
Delivery time:
Shipment:
1.By express, such as FedEx/DHL/UPS/TNT
2.By Air or by Sea for batch goods
3.Customers specifying freight forwarders or negotiable shipping methods
Safety information
1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof.Please avoid the sun and rain.
3. Goodheat dissipation will prolong the working life of the LED driver, please ensure good ventitation.
4. Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.
5. If a fault accurs please return the product to your supplier.Do not attmept to fix this product by yourself.
Warranty agreement
1. 5-year warranty
●The warranty is for free repair or replacement and covers manufacturing faults only.
●Do not include fees of on site maintenance and consumumable parts.
2. Limited warranty
●Artificial damage caused by improper use, such as improper accessories, improper installation, did not follow the instructions, error using or negligence.
●Any damages caused by force majeure, such as natural disaster, abnormal voltage.
●The normal use of products caused by aging, wear and tear, but it does not affect the normal use.
1. Are you a manufacturer or a trading company?
We are a light control manufacturer with professional R&D team and strong production capacity.We also have more than 20 patents.
2. What kinds of export certifications of Skydance products?

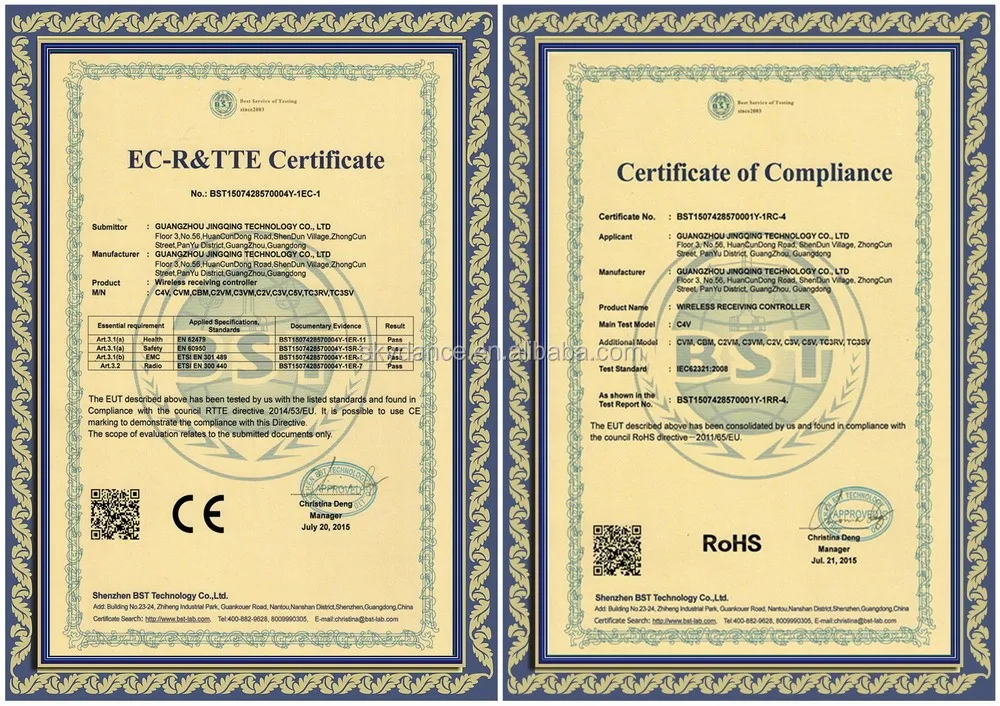

All Skydance items are CE and RoHS approved.
