Technical parameters
● Input voltage: 12-36VDC
● Size: 175x46x32mm
● Output current: 4CH,8A/CH
● Output power: 4 x (96-288)W
● DMX in/out: Connector

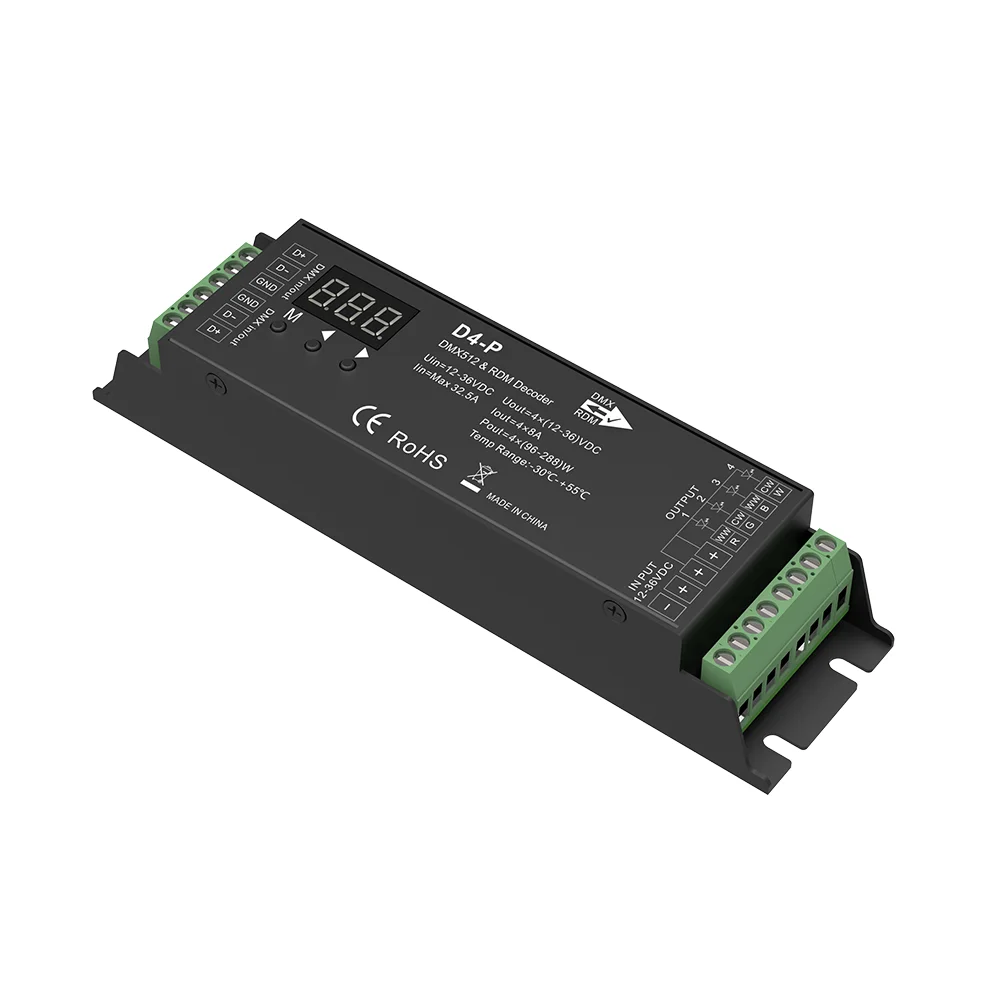

D4-P or D4-E is an industrial level constant voltage DMX512 & RDM controller which features full support to the latest DMX512, DMX512(1990), DMX512-A and RDM V1.0 (E1.20 – 2006 ESTA Standard) protocols. The RDM controller is designed with 4 channels, 8A per channel constant voltage output.
Feature
● 4 channel PWM constant voltage DMX decoder with digital display.
● DMX address display, set DMX address freely.
● RDM bi-directional communication function, can realize intercommunication between DMX master and decoder. for example, you can set DMX decoder address by DMX master console.
● Two kinds of DMX signal input: connector or RJ45 port.
● Work with power repeater to expand output unlimitedly.
1. Are you a manufacturer or a trading company?
We are a light control manufacturer with professional R&D team and strong production capacity.We also have more than 20 patents.
2. What kinds of export certifications of Skydance products?
All Skydance items pass CE and RoHS.
3. Could you provide the OEM or ODM service?
We provide OEM&ODM service for customers according to customer demand.
4. Are Skydance products self-development?
Yes, all of our items are self-research and self-development.We release new designs every month to support our agent&clients with better competition in this industry.
5. What is the warranty for Skydance product?
All Skydance controllers have 5 years warranty and remotes have 3 years warranty from the purchase date, free repairs or replacements during this period.
In both the material selection and structure design, we have been adhering to a philosophy that we will offer the most durable controller for consumers .
6. What' s the main products of Skydance?
Skydance mainly specilized in two kinds of product lines.
One is professional line control system for LED lighting project which includes DMX system,0/1-10V system,AC Triac RF dimmer,SPI system,Signal Converter and power repeater etc.
The other is retail line wireless control system for smart home LED lighting control which includes RF 2.4G system,433 system, smart touch panel controllers,WIFI series,RF remote and Dimmable drivers etc. It goes with color box set package or blister set package for good retail display.
7. How to purchase Skydance products?
Send inquiry to us or chat on line.Professional sales team will follow up immediatelly.
