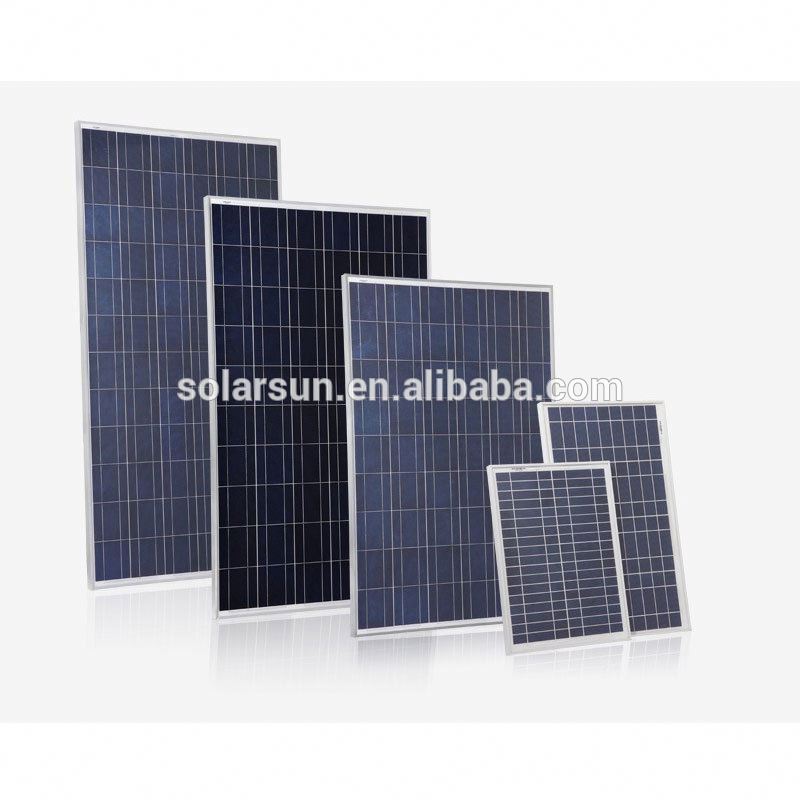

250w poly pv solar panel solar module
| Wp(W) | Vmp(v) | Ipm(A) | Voc(A) | Isc(A) | Size×W×H (mm) | pcs./Ctn | Kg/Pc | PV array |
| 290W | 35.4V | 8.19A | 45V | 8.55A | 1950×986×46mm | 1 | 29.0KG | 72pcs |
| 280W | 36.7V | 7.63A | 43.78V | 7.98A | 1950×986×46mm | 1 | 28.0KG | 72pcs |
| 270W | 36.2V | 7.42A | 43.63V | 7.9A | 1950×986×46mm | 1 | 27.0KG | 72pcs |
| 260W | 36.0V | 7.23A | 43.49V | 7.79A | 1940×992×46mm | 1 | 25.0KG | 72pcs |
| 250W | 36.0V | 6.94A | 42.3V | 7.29A | 1940×992×46mm | 2 | 23.0KG | 72pcs |
| 240W | 36.0V | 6.66A | 42.3V | 7.05A | 1940×992×46mm | 2 | 23.0KG | 72pcs |
| 230W | 30.0V | 7.66A | 35.1V | 8.05A | 1940×992×46mm | 2 | 22.5KG | 60pcs |
| 220W | 30.0V | 7.33A | 35.1V | 7.7A | 1580×800×46mm | 2 | 20.8KG | 60pcs |
| 210W | 30.0V | 7.00A | 35.1V | 7.35A | 1580×800×46mm | 2 | 18.5KG | 60pcs |
| 200W | 30.0V | 6.66A | 35.1V | 7.05A | 1580×800×46mm | 2 | 17.5KG | 60pcs |
| 190W | 30.0V | 6.33A | 35.1V | 6.65A | 1476×666×35mm | 2 | 17.5KG | 60pcs |
| 180W | 30.0V | 6.00A | 35.1V | 6.3A | 1476×666×35mm | 2 | 16.8KG | 60pcs |
| 170W | 30.0V | 5.66A | 35.1V | 5.95A | 1476×666×35mm | 2 | 16.8KG | 60pcs |
| 160W | 30.0V | 5.33A | 35.1V | 5.6A | 1476×666×35mm | 2 | 15.6KG | 60pcs |
| 150W | 30.0V | 5.00A | 35.1V | 5.25A | 1476×666×35mm | 4 | 15.6KG | 60pcs |
| 140W | 18.0V | 7.77A | 21.2V | 8.16A | 1330×666×35mm | 4 | 15.2KG | 36pcs |
| 130W | 18.0V | 7.22A | 21.2V | 7.58A | 1240×666×35mm | 4 | 14.8KG | 36pcs |
| 120W | 18.0V | 6.66A | 21.2V | 6.99A | 1150×666×35mm | 4 | 14.5KG | 36pcs |
| 110W | 18.0V | 6.11A | 21.2V | 6.42A | 1060×666×30mm | 4 | 13.5KG | 36pcs |
| 100W | 18.0V | 5.55A | 21.2V | 5.83A | 1195×545×30mm | 4 | 12KG | 36pcs |
| 90W | 18.0V | 5.00A | 21.2V | 5.25A | 1140×520×30mm | 5 | 10.5KG | 36pcs |
| 80W | 18.0V | 4.44A | 21.2V | 4.66A | 1000×520×30mm | 5 | 8.2KG | 36pcs |
| 70W | 18.0V | 3.88A | 21.2V | 4.08A | 1000×520×30mm | 5 | 6.9KG | 36pcs |
| 60W | 18.0V | 3.33A | 21.2V | 3.5A | 660×660×30mm | 5 | 6.5KG | 36pcs |
| 50W | 18.0V | 2.77A | 21.2V | 2.91A | 550×660×30mm | 5 | 6.2KG | 36pcs |
| 45W | 18.0V | 2.50A | 21.2V | 2.62A | 695×515×30mm | 5 | 5.8KG | 36pcs |
| 40W | 18.0V | 2.22A | 21.2V | 2.33A | 540×505×25mm | 5 | 5.8KG | 36pcs |
| 35W | 18.0V | 1.94A | 21.2V | 2.04A | 555×280×25mm | 5 | 4.0KG | 36pcs |
| 30W | 18.0V | 1.66A | 21.2V | 1.75A | 505×485×25mm | 5 | 3.5KG | 36pcs |
| 25W | 18.0V | 1.39A | 21.2V | 1.45A | 345×550×25mm | 10 | 2.8KG | 36pcs |
| 20W | 18.0V | 1.11A | 21.2V | 1.16A | 465×345×18mm | 10 | 2.2KG | 36pcs |
| 18W | 18.0V | 1.00A | 21.2V | 1.05A | 350×455×25mm | 10 | 2.2KG | 36pcs |
| 15W | 18.0V | 0.83A | 21.2V | 0.87A | 345×385×25mm | 10 | 2.2KG | 36pcs |
| 12W | 18.0V | 0.66A | 21.2V | 0.7A | 350×325×18mm | 10 | 2.1KG | 36pcs |
| 10W | 18.0V | 0.55A | 21.2V | 0.58A | 345×285×18mm | 10 | 1.5KG | 36pcs |
| 5W | 9.0V | 0.55A | 10.5V | 0.58A | 260×175×18mm | 20 | 1.0KG | 18pcs |
| 3W | 9.0V | 0.33A | 10.5V | 0.35A | 180×140×18mm | 20 | 0.6KG | 18pcs |
1, Q: Can I have a sample for test?
A: Sure,sample is available. However delivery cost is at your side.
2, Q: Do you have MOQ requirement?
A: It depends on which kind of products. To solar lantern,you can order any quantity as you wish.
To emergency light,the MOQ is 500pcs
3, Q: What about the paymente term?
A: Usually it is 30% deposit and rest paid before delivery ,Also Paypal,West Union etc,are available.
4, Q: Which shipping methods are available?
A: Sea is the first choice. Fedex, DHL, TNT, UPS, EMS express are also available.
5, Q: When can we get the goods after ordering?
A: Usually it will take around 20 days for production,then 7 days to book the ship.
Within 10 days,the goods could be aboard to your country.
...
