5mm flex board ws2812b Mini 3535 RGB LEDs strip
Key Features:
1.Lighting Source:SMD 3535.
2.LED Quantity:30,60 or 144.
3.Length:5M for 30 LEDs,4M for 60 LEDs and 1M for 144 LEDs.
4.PCB color:white or black.
5.PCB width:5MM for 30 LEDs and 60 LEDs,7.2MM for 144 LEDs(non-waterproof).
6.Waterproof type:non-waterproof or silicone coating waterproof.
7.Color changing,Dimmable,Remote control,Cuttable
8.RGB color,full color,addressable,digital
9.DC5V
10.2-pin JST SM 20# connector with extra power wires on the ends.
11. 5mm flex board ws2812b Mini 3535 RGB LEDs strip
5mm flex board ws2812b Mini 3535 RGB LEDs strip specifications:
| Brand | SOYA LED |
|---|---|
| Type | Flexible LED Light Strips |
| Voltage (V) | DC5v |
| Wattage (W) | 8w for 30 LEDs,15w for 60 LEDs and 35w for 144 LEDs. |
| Light Source | ws2812b mini 3535 SMD |
| LED Quantity | 30 |
| Light Color | RGB pixel digital |
| Length (m) | 5m(maximum length) or customised |
| Feature | Color-Changing, Dimmable, Remote Control, Cuttable |
| Certification | FCC, CE, RoHS,EMC |
| Beam Angle | 140 |
| Waterproof Rate | IP20 or silicone tube |
| Working Temperature | -20~60 |
| Working Time (h) | 50000 |
| Material | Flexible Copper |
| Dimension (mm) | 5000x5 |
| Weight (kg) | 0.1 |
| Package Content | Strip Light × 1 |

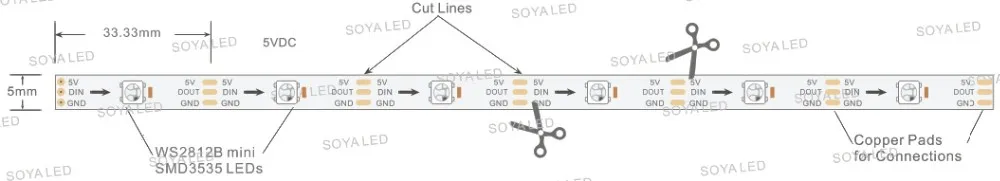

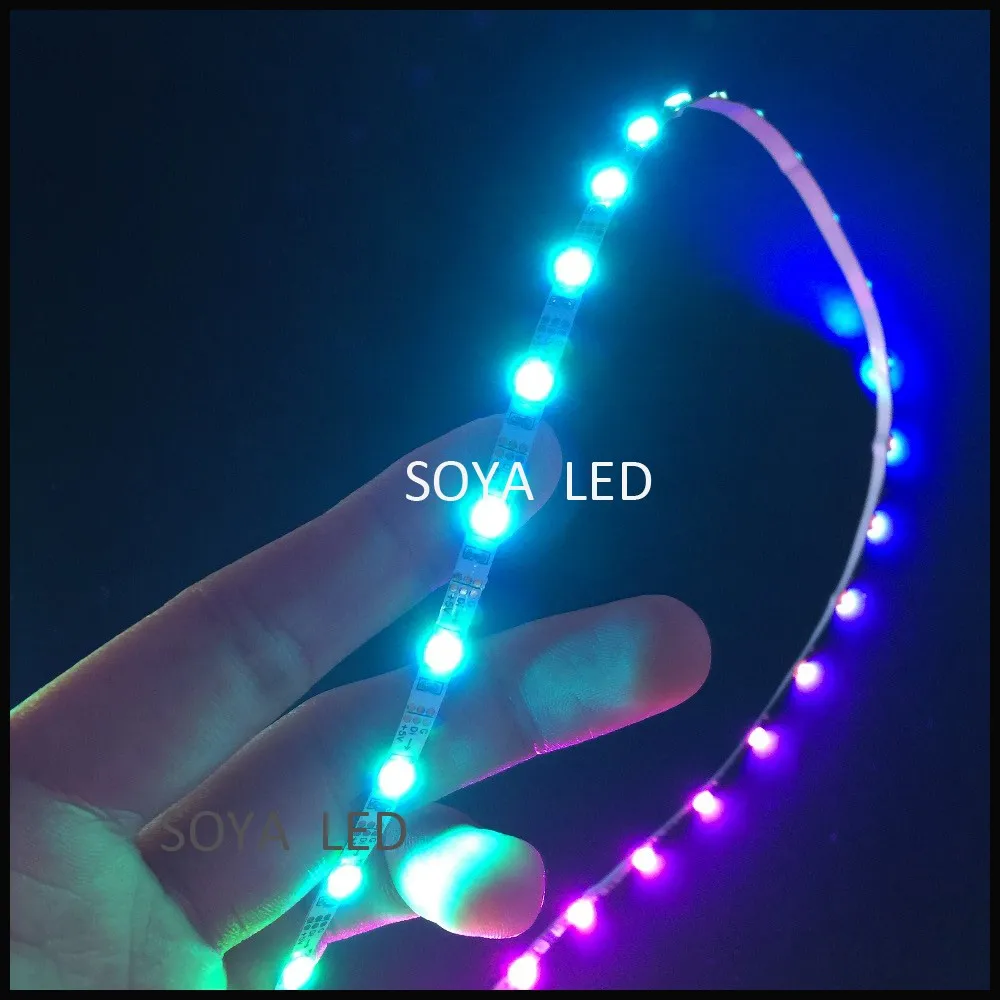

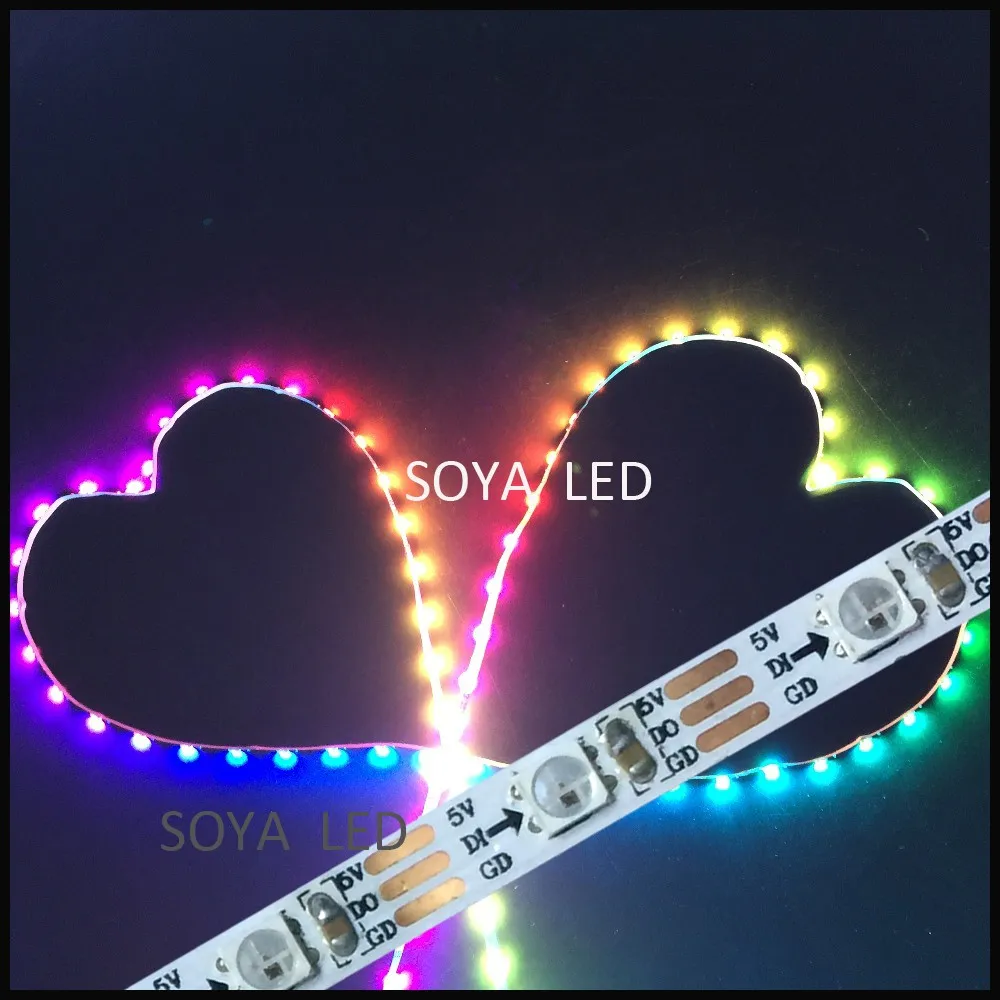

5mm flex board ws2812b Mini 3535 RGB LEDs strip detailed images
Trade Terms
1. Payment Terms:
T/T, Western Union, Aliexpress Escrow
2. Lead Time:
Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,
OEM products: 10--15days (Customized PCB board).
3.Warranty:
2 years warranty since the data of purchase our LED products.
4. Delivery Way:
DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
