ws2812b mini smd 3535 pixel led strip 144 LEDs
We've all seen the cool RGB LED strips where each LED can be addressed with regular SMD5050 LED size.
In 2016, SOYA LED designed and produced the mini version pixel led strips that have individually address to programmable with SMD3535 LED size integrated IC driver inside!
1. So thin. So mini. So teeeeeeny-tiny. It's the 'skinny' version of our classic digital Pixel strips!
2. These sk6812mini LED digital Pixel strips have 144 digitally-addressable pixel Mini LEDs per meter and are very affordable and are only 7.2 mm if you remove the strip from the casing. Strips are available with black flex and white flex PCB,
3. There are 144 RGB mini 3535 LEDs per meter, and you can control each LED individually! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
4. The ws2812b mini smd 3535 pixel led strip 144 LEDs is made of flexible PCB material, and comes with a weatherproof sheathing. You can cut this stuff pretty easily with wire cutters, there are cut-lines every 0.27"/6.94mm (1 LED each). Solder to the 0.1" copper pads and you're good to go. Of course, you can also connect strips together to make them longer.
5. The way the pixels are controlled by Arduino, Glediator, DMX( Artnet), Raspberry pi, AVR, T1000s/T300K and etc.
1. This 7.2mm flexible led rgb digital strip 144 led support 144 leds 1 meter/ roll, 30 leds/60 leds are 5 meter /roll maximum.
2. The bare pcb board is narrow only 5mm for 30 leds, 60 leds. 144 leds mini strips only 7.2mm.
3. The LEDs are controlled by shift-registers built into each LED lamp. In order to drive the strip you need 5v, GND and DATA-easy!
| Item No. | ws2812b mini smd 3535 pixel led strip 144 LEDs |
| LED quantity | 144 LEDs/m |
| LED type | sk6812 mini smd 3535 LED |
| Wattage | 28 watts |
| Pixel pitch | every 6.944mm cuttable |
| PCB width | 7.2mm |
| Working volatage | DC5V |
| PCB color | Black and White |
| Light color | Multi-color, digital RGB,Every LED individual Control |
| Connector | 2pin JST-SM connector / 3pin JST-SM connector |
| Controller | Artnet/ Arduino/ AVR/Raspberry pi/T1000s/DMX512/DMX decoder |

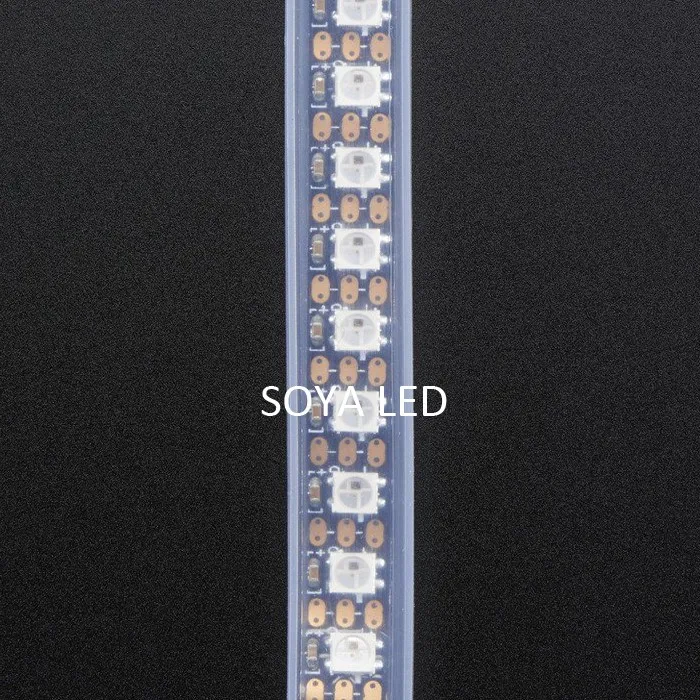

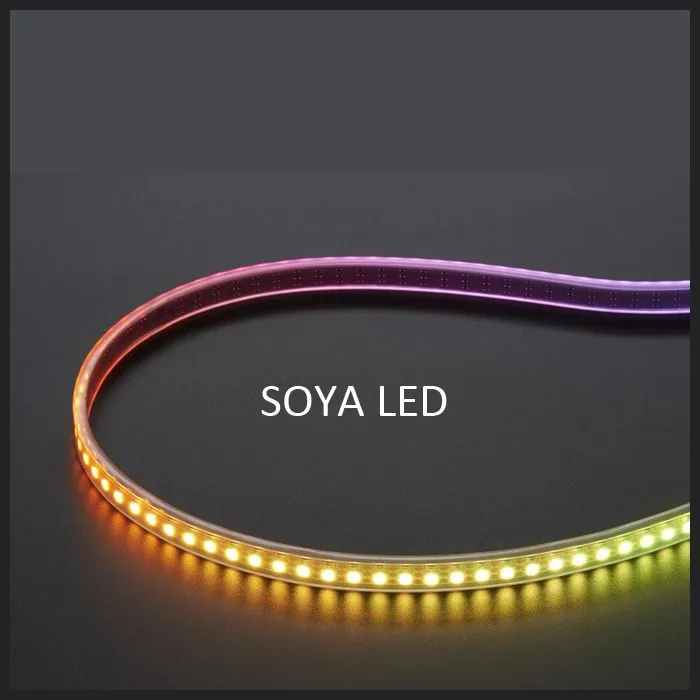

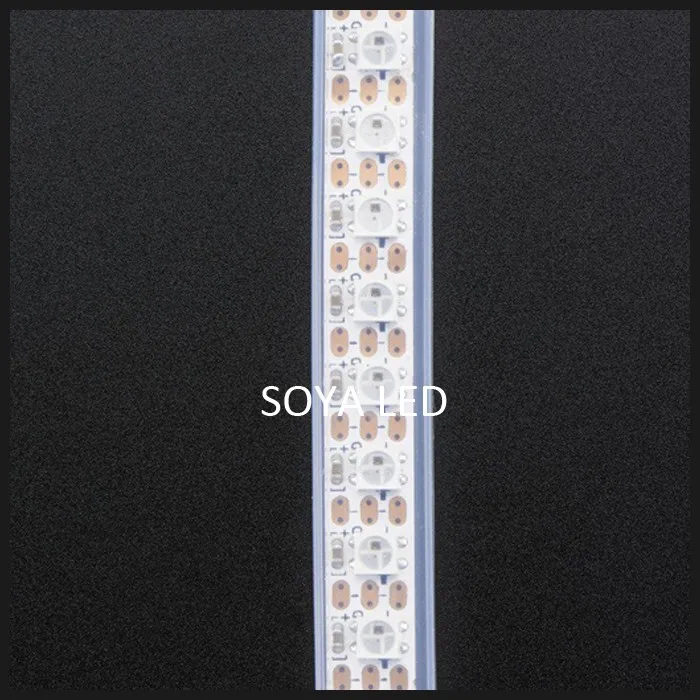

ws2812b mini smd 3535 pixel led strip 144 LEDs detailed images
Trade Terms
1. Payment Terms:
T/T, Western Union, Aliexpress Escrow
2. Lead Time:
Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,
OEM products: 10--15days (Customized PCB board).
3.Warranty:
2 years warranty since the data of purchase our LED products.
4. Delivery Way:
DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
