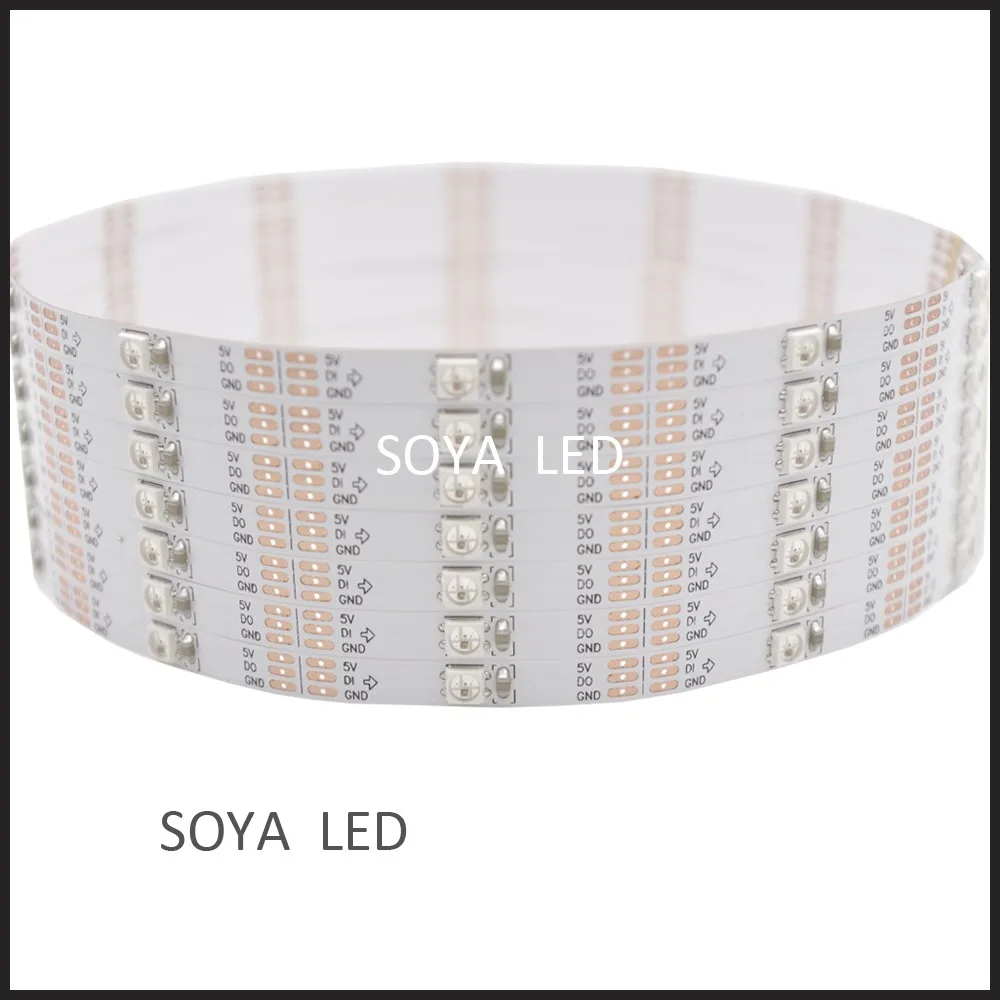

SK6812/WS2812B MINI LED Strip 30 LEDs per meter white pcb sk6812 3535
We've all seen the cool RGB LED strips where each LED can be addressed with regular SMD5050 LED size.
In 2016, SOYA LED designed and produced the mini version pixel led strips that have individually address to programmable with SMD3535 LED size integrated IC driver inside!
1. So thin. So mini. So teeeeeeny-tiny. It's the 'skinny' version of our classic digital Pixel strips!
2. These digital Pixel strips have 30 digitally-addressable pixel Mini LEDs per meter and are very affordable and are only 7.5 mm wide, 5 mm if you remove the strip from the casing. Strips are available with black flex and white flex PCB,
3. There are 30 RGB mini 3535 LEDs per meter, and you can control each LED individually! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
4. The 30 leds addressable mini smd3535 led rgb pixel strip is made of flexible PCB material, and comes with a weatherproof sheathing. You can cut this stuff pretty easily with wire cutters, there are cut-lines every 1.27"/32.5mm (1 LED each). Solder to the 0.1" copper pads and you're good to go. Of course, you can also connect strips together to make them longer.
5. The way the pixels are controlled by Arduino, Glediator, DMX( Artnet), Raspberry pi, T1000s/T300K and etc.
SK6812/WS2812B MINI LED Strip 30 LEDs per meter white pcb sk6812 3535
| Item No. | SK6812/WS2812B MINI LED Strip 30 LEDs per meter white pcb sk6812 3535 |
| LED quantity | 30 LEDs/m |
| LED type | sk6812 smd3535 |
| Wattage | 8 watts |
| Pixel pitch | every 33.33mm cuttable |
| PCB width | 5mm |
| Working volatage | DC5V |
| PCB color | Black and White |
| Light color | Multi-color, digital RGB,Every LED individual Control |
| Connector | 2pin JST-SM connector or 3pin JST-SM connector |
| Controller | Artnet/ Arduino/ AVR/Raspberry pi/T1000s/DMX512/DMX decoder |
SK6812/WS2812B MINI LED Strip 30 LEDs per meter white pcb sk6812 3535
Trade Terms
1. Payment Terms:
T/T, Western Union, Aliexpress Escrow
2. Lead Time:
Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,
OEM products: 10--15days (Customized PCB board).
3.Warranty:
2 years warranty since the data of purchase our LED products.
4. Delivery Way:
DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
