SK6812MINI-3535;SK6812 adressable full color RGB 3535 LED light source
1. Mini 3535 RGB LEDs could make your own smart LED arrangement with the same integrated LED that is used in our mini pixel strip and pixels.
2. These MINI (3.5mm x 3.5mm) 3535 RGB LEDs are fairly easy to solder and are half the size of the standard 5x5mm RGB LEDs you may be used to seeing.
3. The driver chip is inside the LED and has a constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors.

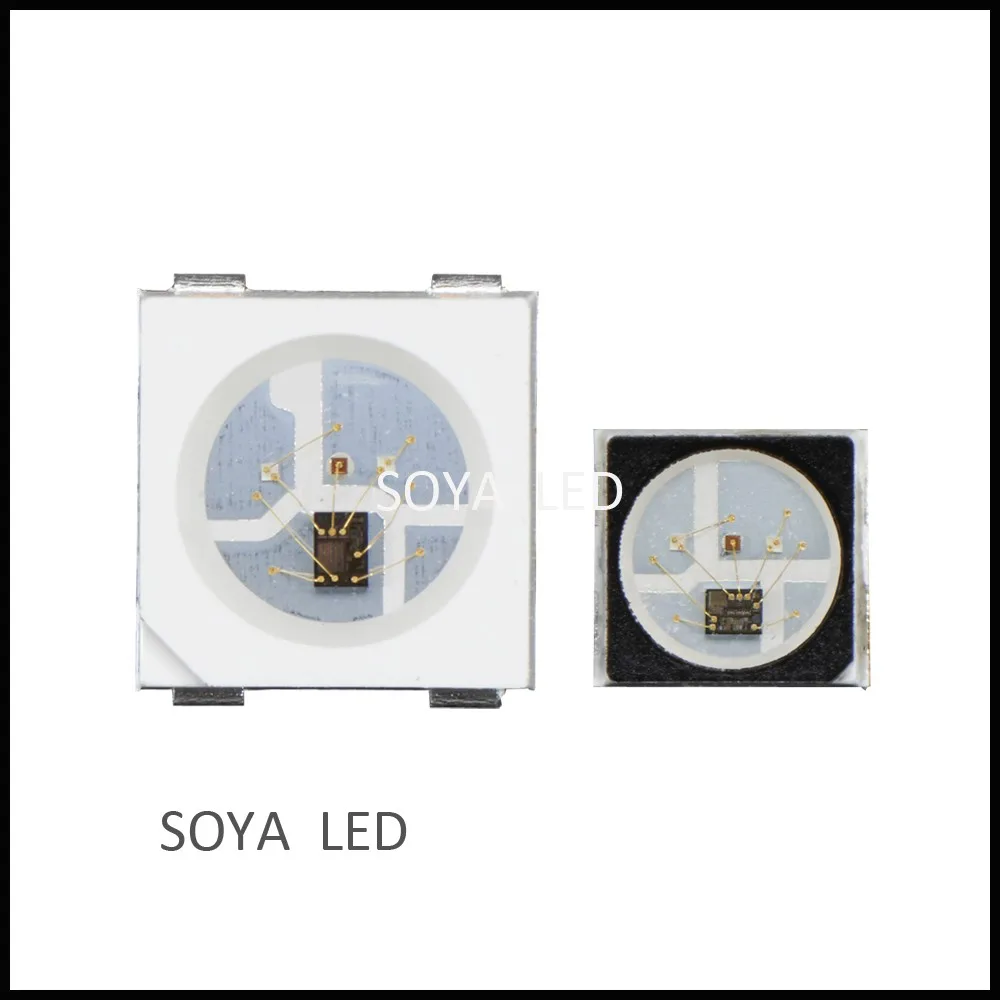

4. We have mini smd3535 RGB LEDs in a white and black casing here.
5. The LEDs are 'chainable' by connecting the output of one chip into the input of another - see the datasheet for diagrams and pinouts. There is a single data line with a very timing-specific protocol. Since the protocol is very sensitive to timing, it requires a real-time microcontroller such as an AVR, Arduino, PIC, mbed, etc.
6. The LEDs basically have ws2811 inside, but fixed at the 800KHz "high speed" setting.

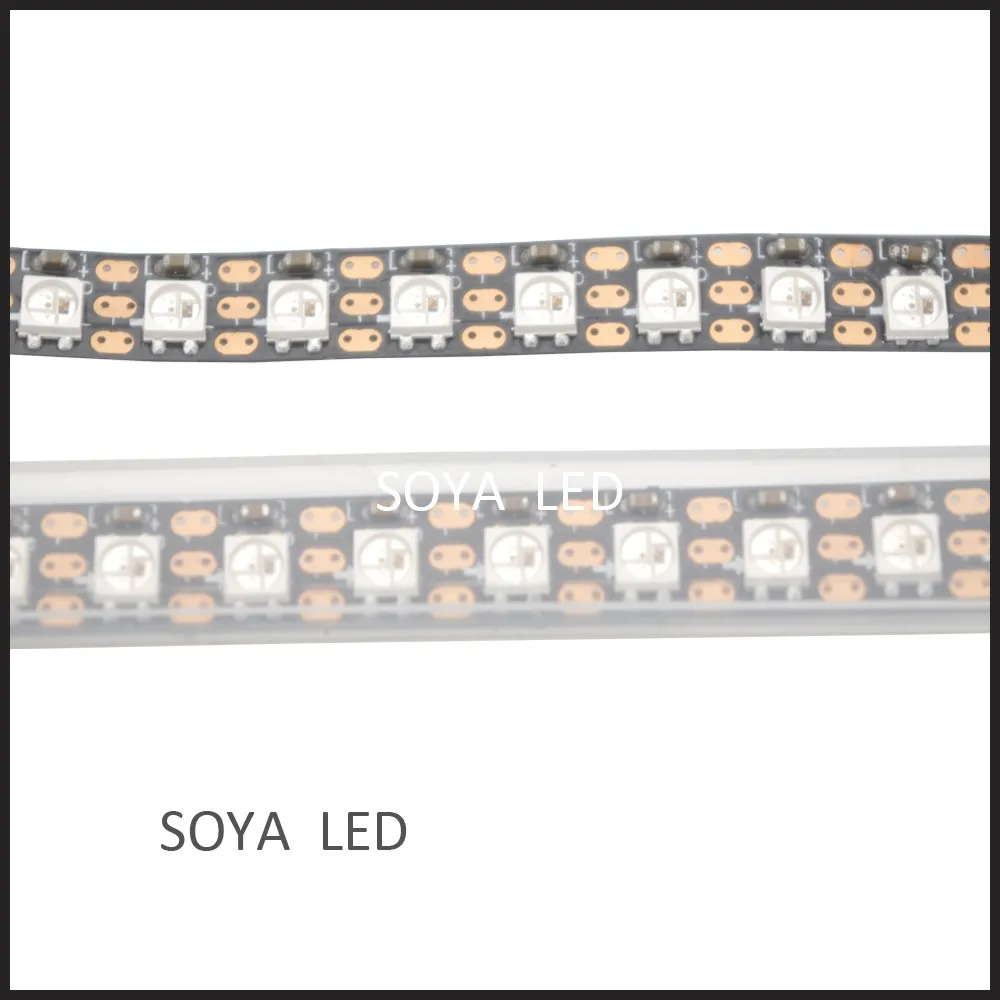

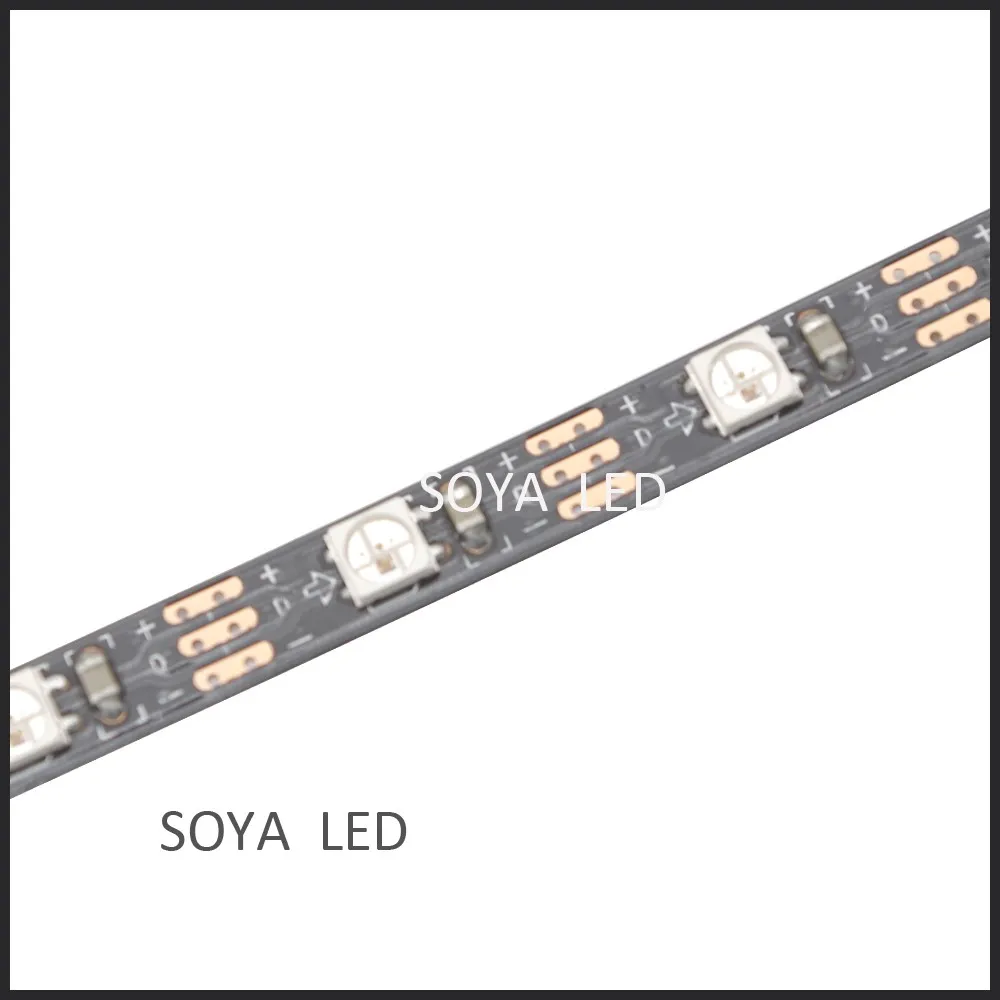

7. We have mini 3535 LED pixel strips and matrixs, welcome to contact.
SK6812MINI-3535;SK6812 adressable full color RGB 3535 LED light source detailed images

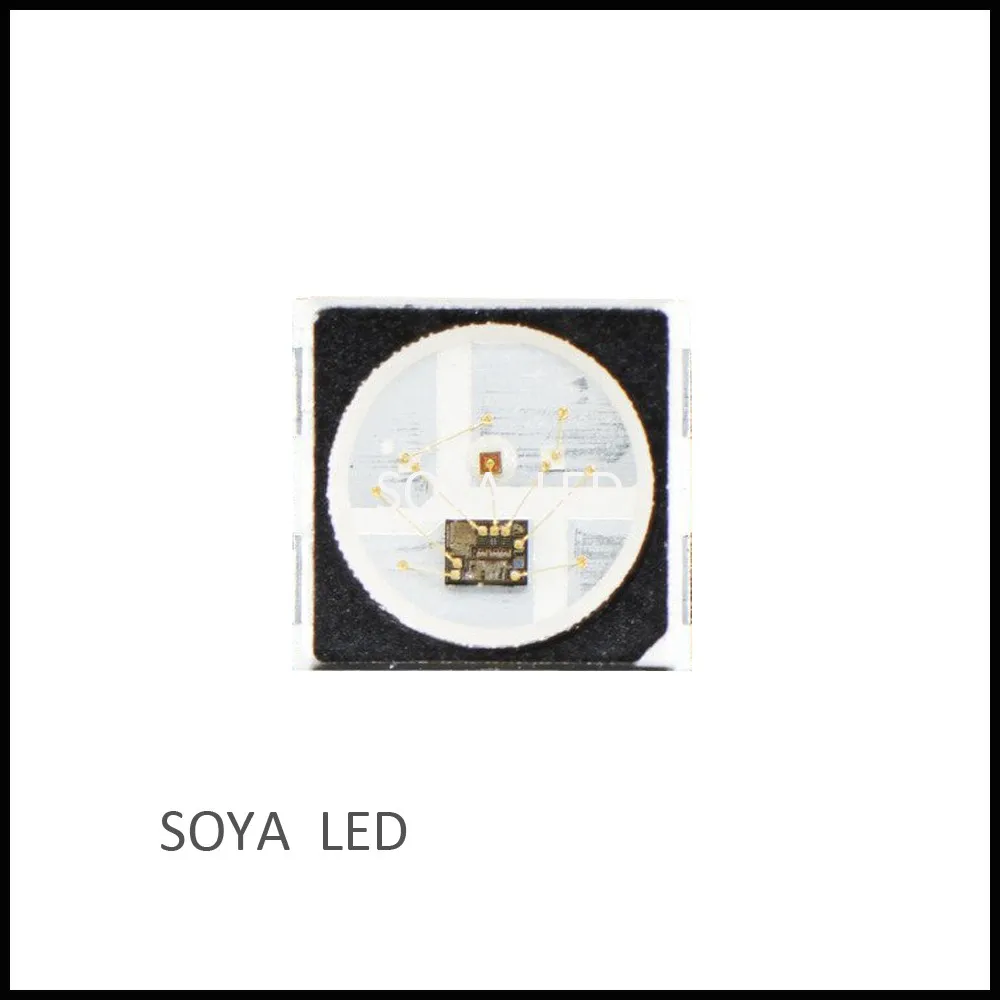

SK6812mini black smd3535 RGB LEDs
| Item No. | SK6812mini black smd3535 RGB LEDs |
| LED type | SK6812mini black smd3535 RGB LEDs |
| Wattage | 0.2W/pcs |
| Working volatage | DC5V |
| Castingcolor | Black and White |
| Light color | Multi-color, digital RGB,Every LED individual Control |
| Application | Mini3535 LED strips with 30/60/144 leds, Mini 3535 LED matrixs |
| Controller | Artnet/ Arduino/ AVR/Raspberry pi/T1000s/DMX512/DMX decoder |
1500 pcs / roll
10,000 pcs / carton
Carton size: 32*28*20cm
Trade Terms
1. Payment Terms:
T/T, Western Union, Aliexpress Escrow
2. Lead Time:
Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,
OEM products: 10--15days (Customized PCB board).
3.Warranty:
2 years warranty since the data of purchase our LED products.
4. Delivery Way:
DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
