Slim Cabinet Outdoor P8 SMD 3535 / LED Rental Screen/P10 320*160mm module Outdoor Rental LED Display
Features
1. Bright color, high contrast, good consistency and high brightness to keep the high resolution of the video under the sunlight.
2. Adopt CNC technology in high precision processing box body, the whole screen flatness<0.2mm. Using connection frame steel structure, installation and maintenance is very convenient.
3. Red LEDs were powered by 3.2V, blue and green LEDs were powered by 3.8V, which make the screen work stable and prolong the life span.
4. With PFC high-efficiency power supply, to ensure the screen can be powered sustainable.
Application
Outdoor far viewing distance (10m-80m) Led Display has the ability to play monitor videos and graphic information in real time. So it can be widely used in large area such as transportation, electricity, water conservancy, security, military conferences, city management, radio and television industries etc.
Parameter
|
|
PH10 |
| Pixel pitch | 10mm |
| Physical Density | 10000mm |
| LED Configuration | 1RGB |
| LED type | SMD3535 |
| Module Size | 320(mm)*160(mm) |
| Module Resolution | 32(px)*16(px) |
| Module Power Consumption | 30W |
| Driving Method | Constant Current IC |
| Scan Method | 1/2 |
| Horizontal Viewing Angle | 160 |
| Vertical Viewing Angle | 140 |
| Brightness | >=10000cd/sqm |
| Grey Scale | 16bit |
| Refresh Rate | >=1920Hz |
| Canbinet Resolution | 96(px)*96(px) |
| Canbinet Max Consumption | <=540 |
| Canbinet Average Power Consumption | 190 |
| Canbinet Size | 960(mm)*960(mm) |
| Canbinet Weight | 42KG |
| Canbinet Thickness | 100mm |
| Canbinet Material | Iron/Aluminul |
| Color | >16.7 |
| Input Voltage | AC110V~220V +/-10% |
| Frame Frequency | >=60 |
| Protection Level | IP43 |
| Working Environment | Outdoor |
| Working Temperature | -40° -+65° |
| Storage Humidity Range | 10%-90% |
| Life Span | 100,000 |
Attention
In order to offer you a suitable solution, Please state general info about your project.
1. Pixel pitch or view distance you need.
2. Dimension
3. Location of installation. ( eg, on poles, on wall of building, ect)
4. Purpose. ( what are you going to do with the LED Screen)

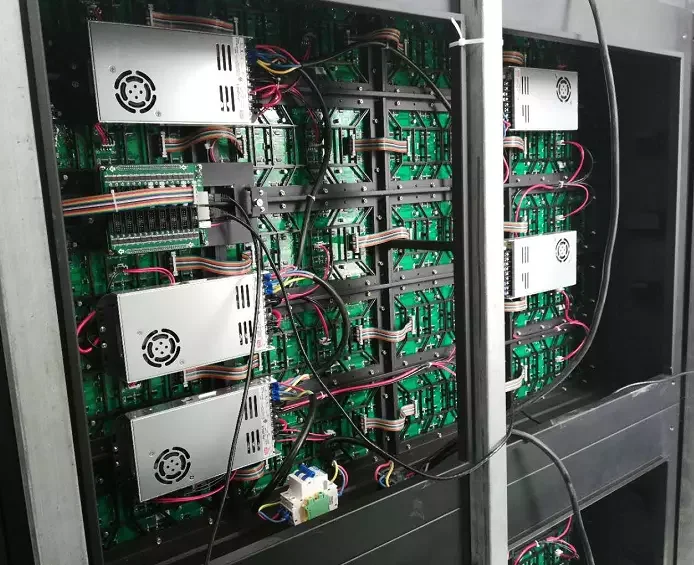

Standard Waterproof Cabinet
Aging Test
