TOPLED P4.81 Outdoor SMD advertising full color Led Display for Rental module
Features:
1.Bright color, high contrast, good consistency and high brightness to keep the high resolution of the video under the sunlight.
2.The size of the cabinet can be adjusted by using standard-size module. It is easy to install and maintain by using connection of steel structure.
3.By using slim and energy-saving power, muted and temperature control ventilator to enhance the stability and prolong the life span of the screen.
4. By using constant current driving method to keep effect of display in long-term use and prolong the life span effectively.
Parameters
P4.81 | |
Pixel Pitch(mm) | 4.81 |
Physical Density | 43,264 |
LED Configuration | 1RGB |
LED type | SMD2727 |
Module Size | 250×250 |
Module Resolution | 52×52 |
Module Power Consumption | 40W |
Driving Mode | Constant Current IC |
Scanning Mode | 1/13 |
Horizontal Viewing Angle | 140 |
Vertical Viewing Angle | 140 |
Brightness | 1000-5500 |
Grey Scale | 16bit |
Refresh Rate | ≥3840 |
Cabinet Resolution | 104×104 |
Cabinet Max Consumption | 260 |
Cabinet Average Power Consumption | 80 |
Cabinet Size | 500×500 |
Cabinet Weight(kg) | 7.85KG |
Cabinet Thickness | 85mm |
Cabinet Material | Iron/Aluminum |
Color | >16.7 |
Input Voltage | AC 110V~220V +/-10% |
Frame Frequency | 50-60 |
Protection Level | IP65 |
Working Temperature(℃) | -40° -+65° |
Storage Humidity Range(RH) | 10%~90% |
Life Span(H) | 100,000 hours |

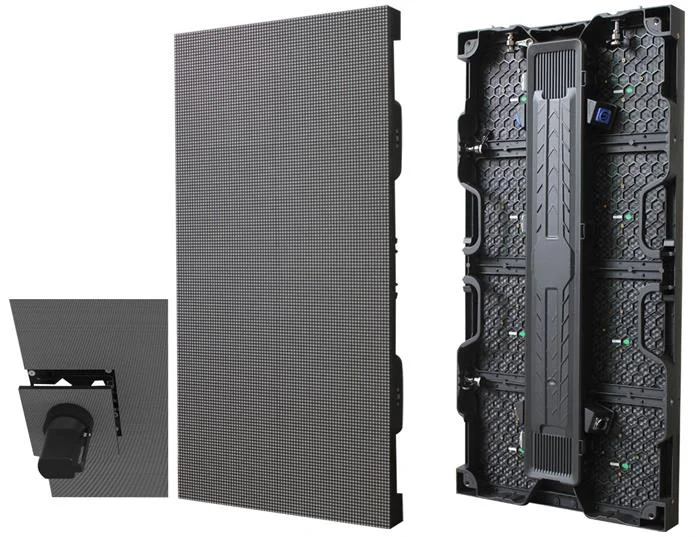

Iron/Die-casting Aluminum cabinet 500×500
