Detailed product description
1. Fiber optic lighting kits
2. Light engine :16W LED with remote control
3. Color :RGB color ,Single color ,changing color
4. Fiber quantity :customized accept
5. High power ,cold light ,longer shelf life
6. Easy to install and operate
7. Application: fiber optic lighting
8. Light weight and exqusite size
9. Over-heated protection
Feature
1. Voltage:100-265V/50Hz/60Hz
2. Light bulb model:16W,LED RGB color
3. Light bulb life:100,000h
4. Max aperture: φ16
5. Outsize:L125XW95XH55mm
6. Crust material :aluminium alloy
7.Weight: 0.8kgs
Fiber optic lighting kits
Specification
Model | Light engine & Color | Mixed fiber optic QTY and Dia | Fiber length | Cover | Average star(points/m) |
TX-1-001 | 16W led light engine With RGB ( Seven color) or single color | 150pcs:0.75mm | 2m | 2*2m | 38 |
TX-1-002 | 200pcs:0.75mm | 2m | 2*2m | 50 | |
TX-1-003 | 150pcs:1.0mm | 2m | 2*2m | 38 | |
TX-1-004 | 200pcs:1.0mm | 2m | 2*2m | 50 | |
TX-2-001 | 60pcs:0.75mm, 60pcs:1.0mm | 2m | 2*2m | 30 | |
TX-2-002 | 80pcs:0.75mm, 80pcs:1.0mm | 3m | 2*3m | 26 | |
TX-2-003 | 110pcs:0.75mm, 110pcs:1.0mm | 3m | 3*3m | 24 | |
TX-2-004 | 140pcs:0.75mm, 140pcs:1.0mm | 4m | 4*4m | 17 | |
TX-3-001 | 100pcs:0.75mm,80pcs:1.0mm, 8pcs:1.5mm,with 8pcs crystal end fitting | 2m | 2*2m | 47 | |
TX-3-002 | 150pcs:0.75mm,80pcs:1.0mm, | 3m | 2*3m | 40 | |
TX-3-003 | 200pcs:0.75mm,100pcs:1.0mm, | 3m | 3*3m | 34 | |
TX-3-004 | 240pcs:0.75mm,100pcs:1.0mm, | 4m | 3*4m | 28 | |
TX-3-001X | 100pcs:0.75mm, 80pcs:1.0mm, | 2m | 2*2m | 47 | |
TX-3-002X | 150pcs:0.75mm, 80pcs:1.0mm, | 3 | 2*3m | 40 | |
TX-3-003X | 200pcs:0.75mm, 100pcs:1.0mm, | 3m | 3*3m | 34 | |
TX-3-004X | 240pcs:0.75mm, 100pcs:1.0mm, | 4m | 3*4m | 28 |

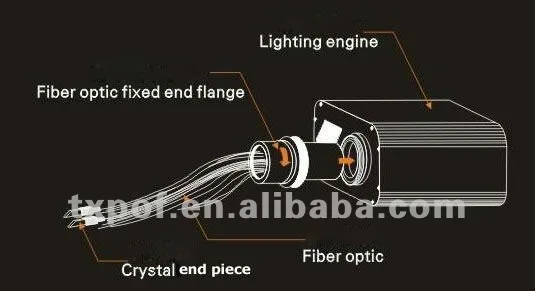

Structure diagram

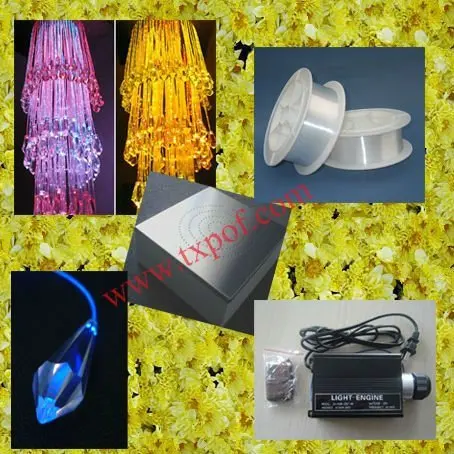

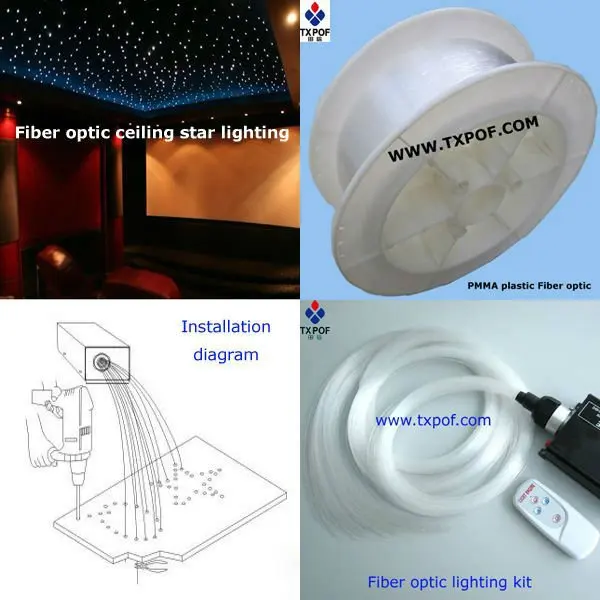

Application
Company name & overview

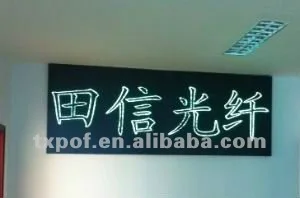

Company front door viewing & sales department office

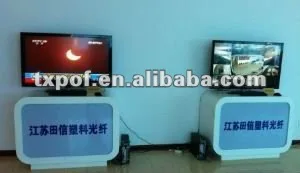

TXPOF application & product showroon for communication application in POF
Production line

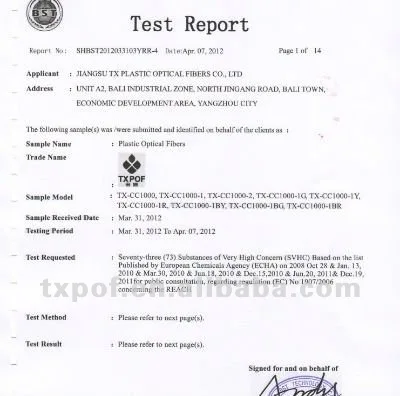

Certificate (REACH, SGS, ISO, UL)
