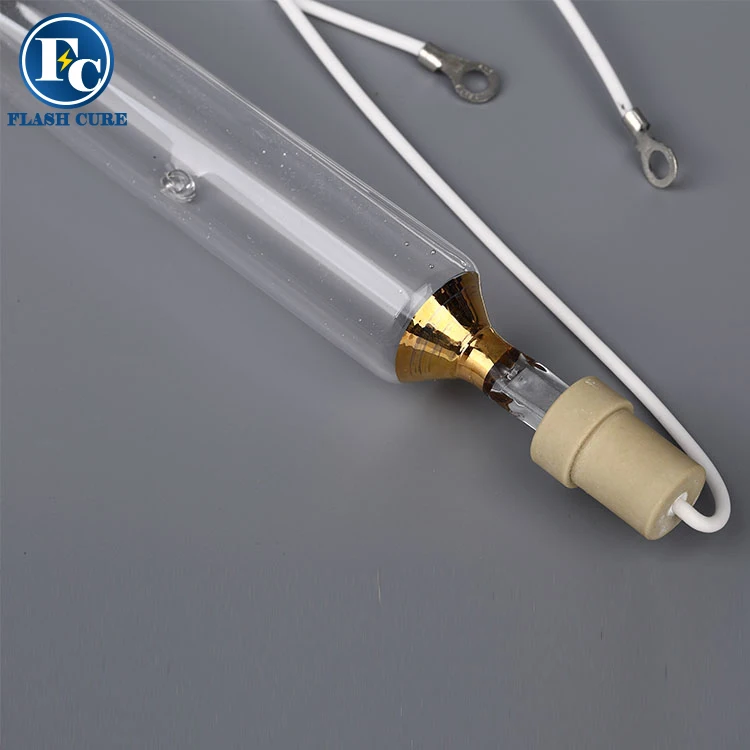

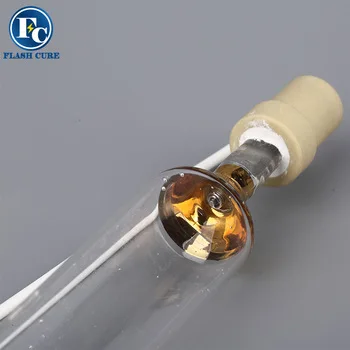

15KW UV High Pressure Mercury Lamp for Plastic Bag Flexo Printing Machine
UV lamp printing presses, screen printing, offset printing, multi-color printing mostly UV UV lamp curing UV curing ink.
Mercury lamp referred to as uv lamp, the lamp effective broad-spectrum range of 350nm ~ 450nm, the main peak of 365nm. High pressure mercury lamp is an ideal light source for surface curing. It is widely used in printing and plate making, flexible packaging color printing, furniture industry, wood floor decoration materials, tin cans, PCB / LCD and other fields.
Our company is specialized in producing high-pressure mercury lamp manufacturer, the lamp adopts quartz tube imported from the United States, we provide the warranty period of 800 hours, all manufactured products have to undergo a rigorous quality inspection.
| Model | Power | Pole pitch | Pipe diameter | Lamp head |
| 400W | 115 mm | 40mm | 20 mm | ceramic |
| 850W | 152mm | 75mm | 18 mm | ceramic |
| 1KW | 335mm | 220mm | 22.5 mm | ceramic |
| 2 KW | 400mm | 300mm | 22.5 mm | ceramic |
| 3 KW | 620mm | 470mm | 22.5 mm | ceramic |
| 3.2 KW | 550mm | 400mm | 22.5 mm | ceramic |
| 4 KW | 664mm | 510mm | 22.5 mm | ceramic |
| 5 KW | 775mm | 625mm | 22.5 mm | ceramic |
| 5.4 KW | 625mm | 456mm | 25 mm | metal |
| 5.6 KW | 826mm | 675mm | 22.5 mm | ceramic |
| 6 KW | 920mm | 800mm | 25 mm | ceramic |
| 7.5 KW | 725mm | 620mm | 25 mm | ceramic |
| 8 KW | 1150mm | 1000mm | 25 mm | ceramic |
| 8.4 KW | 826mm | 700mm | 25 mm | ceramic |
| 9.6 KW | 1387mm | 1250mm | 25 mm | ceramic |
| 11 KW | 1575mm | 1440mm | 25 mm | ceramic |
| 12 KW | 1692mm | 1550mm | 22.5 mm | metal |
| 13 KW | 1120mm | 1010mm | 22.5 mm | ceramic |
20 KW | 1870 mm | 1750 mm | 25 mm | ceramic |
1. Plastic Spray: phone case, cosmetic case, MP3, small household appliances shell spray
2. Printing industry: screen printing, lithography, flexographic printing, 5-color printing
3. Wood: furniture, the surface of the floor polished, wood sign coating
4. Footwear: through the UV light so that the adhesive and soles firmly fused
5. Textile printing and dyeing industry: used in rubber roller surface treatment, fiber type identification and surface modification
6. Metal products printing: metal packaging such as milk powder cans, beverage cans, faucets and other metal products on the surface of the light
7. Glass ceramic products printing: mirrors, cups, bottles and other color printing
8. leather discoloration: applied to UV color leather craft
9. Arts and Crafts glazing: used in all the light with UV varnish crafts
1. Make sure the UV lamp and each part are securely fastened before use.
2. Please use alcohol to clean the lamp before fixing.
3. Turn off all power and allow lamp to cool before any cleaning.
4. Please check the lamp and lamp cover every 200 hours.
5. Avoid over-repeated switching, or both ends of the lamp will change color.
6. Be sure to wear protective glasses before operation, otherwise the eyes will be UV damage.
7. Operation lamp temperature is high, do not touch the lamp.
8. should be avoided in the uv lamp finger oil left.
