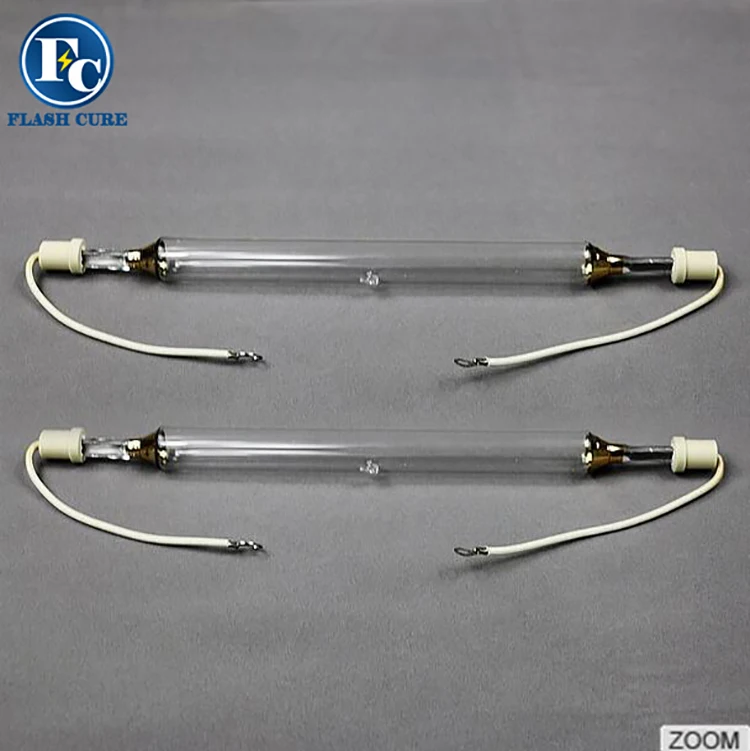

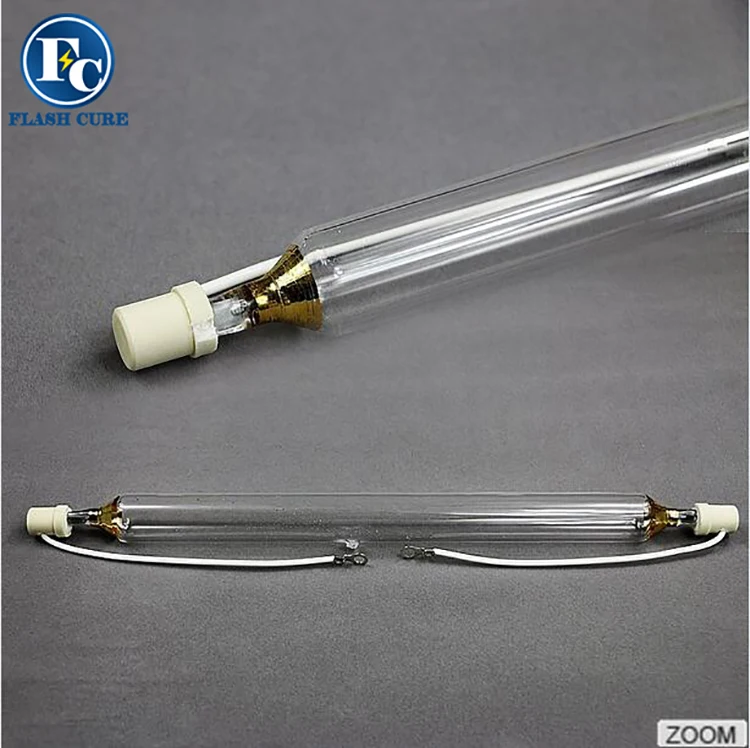

uv printing curing coating uv halogen lamp 5000w
The spectral energy of metal halide lamp fits the absorption spectrum of some materials very well to generate rapid curing reactions. Metal halide lamp can be widely applied in films, screen printing, OCB, diazonium films, plate exposure, UV paint, uv ink and paint, dry and wet films, screen printing, notes, cards, paper, metal printing and surface coating. It applies to Roland, Komori, Mitsubishi and KBA offset presses.
Metal halide lamps have many advantages, such as the longest lifetime, the shortest exposure time, rapid lighting, maximum optical energy and stable operating performance.
| Model | Power | Pole pitch | Pipe diameter | Lamp head |
| 400W | 115 mm | 40mm | 20 mm | ceramic |
| 850W | 152mm | 75mm | 18 mm | ceramic |
| 1KW | 335mm | 220mm | 22.5 mm | ceramic |
| 2 KW | 400mm | 300mm | 22.5 mm | ceramic |
| 3 KW | 620mm | 470mm | 22.5 mm | ceramic |
| 3.2 KW | 550mm | 400mm | 22.5 mm | ceramic |
| 4 KW | 664mm | 510mm | 22.5 mm | ceramic |
| 5 KW | 775mm | 625mm | 22.5 mm | ceramic |
| 5.4 KW | 625mm | 456mm | 25 mm | metal |
| 5.6 KW | 826mm | 675mm | 22.5 mm | ceramic |
| 6 KW | 920mm | 800mm | 25 mm | ceramic |
| 7.5 KW | 725mm | 620mm | 25 mm | ceramic |
| 8 KW | 1150mm | 1000mm | 25 mm | ceramic |
| 8.4 KW | 826mm | 700mm | 25 mm | ceramic |
| 9.6 KW | 1387mm | 1250mm | 25 mm | ceramic |
| 11 KW | 1575mm | 1440mm | 25 mm | ceramic |
| 12 KW | 1692mm | 1550mm | 22.5 mm | metal |
| 13 KW | 1120mm | 1010mm | 22.5 mm | ceramic |
20 KW | 1870 mm | 1750 mm | 25 mm | ceramic |
1. Plastic Spray: phone case, cosmetic case, MP3, small household appliances shell spray
2. Printing industry: screen printing, lithography, flexographic printing, 5-color printing
3. Wood: furniture, the surface of the floor polished, wood sign coating
4. Footwear: through the UV light so that the adhesive and soles firmly fused
5. Textile printing and dyeing industry: used in rubber roller surface treatment, fiber type identification and surface modification
6. Metal products printing: metal packaging such as milk powder cans, beverage cans, faucets and other metal products on the surface of the light
7. Glass ceramic products printing: mirrors, cups, bottles and other color printing
8. leather discoloration: applied to UV color leather craft
9. Arts and Crafts glazing: used in all the light with UV varnish crafts
1. Make sure the UV lamp and each part are securely fastened before use.
2. Please use alcohol to clean the lamp before fixing.
3. Turn off all power and allow lamp to cool before any cleaning.
4. Please check the lamp and lamp cover every 200 hours.
5. Avoid over-repeated switching, or both ends of the lamp will change color.
6. Be sure to wear protective glasses before operation, otherwise the eyes will be UV damage.
7. Operation lamp temperature is high, do not touch the lamp.
8. should be avoided in the uv lamp finger oil left.
