Click on the image to view the original image

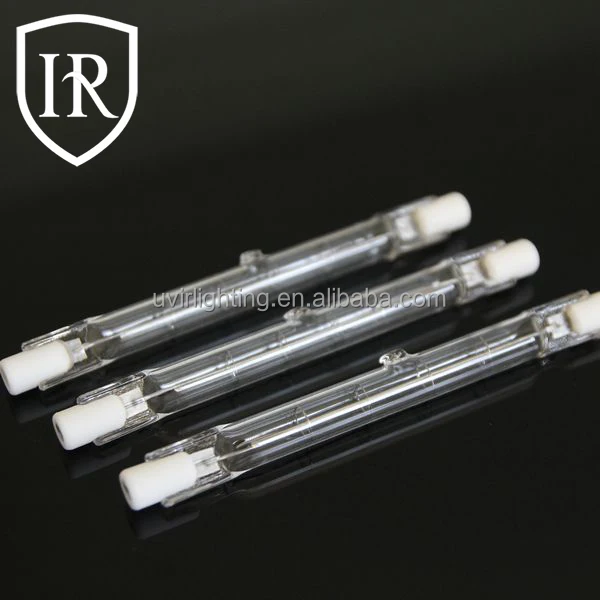

Linear J118 r7s quartz tungsten halogen lamp 400w
Our best selling products are:
1.IR lamps:Twin tube ,single tube,3D lamp(tailor made short , medium,and long wave
2.Accessories for IR lamps :Quartz tube ,Clamp ,Metal reflector
and we can provide more specific lamps according to your requirement.
Production Process Workshop
Applications
In Plastics Processing
Heating PVC flooring prior to embossing
Medium Wave Twin Tube IR Emitter
Long life | Medium wave lamp 20000h on average |
Power Density | 18 20 25 W/cm |
Hight efficiency | more than 85% heat efficiency of full power |
Filament Temp. | 800-950 Degree Celsius |
Max. Power | 60 kw / m2 |
Response Time | 1-4min |
Clean and adorless | no risk of contamination over environment or target object to be heated |
Extensive assortment | many types of voltage,wattage,length,base,cables,niversal burning position is available |
Flexible | special lamp designing service on demand is available |
IR Emitter
Model No. | Voltage(v) | Watt(w) | Cross section(mm) | Total length(mm) | Arc length(mm) | Reflector | Construction |
| 1 | 230 | 500 | 8*18 | 400 | 300 | Gold | B |
| 2 | 230 | 1000 | 15*33 | 600 | 500 | Gold | B |
| 3 | 230 | 2000 | 15*33 | 900 | 800 | Gold | B |
| 4 | 230 | 2500 | 15*33 | 1100 | 1000 | Gold | B |
| 5 | 230 | 3250 | 15*33 | 1420 | 1300 | Gold | B |
| 6 | 230 | 3750 | 15*33 | 1600 | 1500 | Gold | B |
| 7 | 230 | 2500 | 15*33 | 1300 | 1200 | Gold | C |
| 9 | 400 | 4100 | 15*33 | 1800 | 1700 | Gold | B |
| 10 | 400 | 4500 | 15*33 | 1920 | 1800 | Gold | B |
| 11 | 400 | 5750 | 15*33 | 2400 | 2300 | white | B |
| 12 | 400 | 6250 | 15*33 | 2600 | 2500 | white | B |
| 13 | 400 | 5250 | 15*34 | 2200 | 2100 | Gold | B |
| If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you! | |||||||
Contact us for details !
