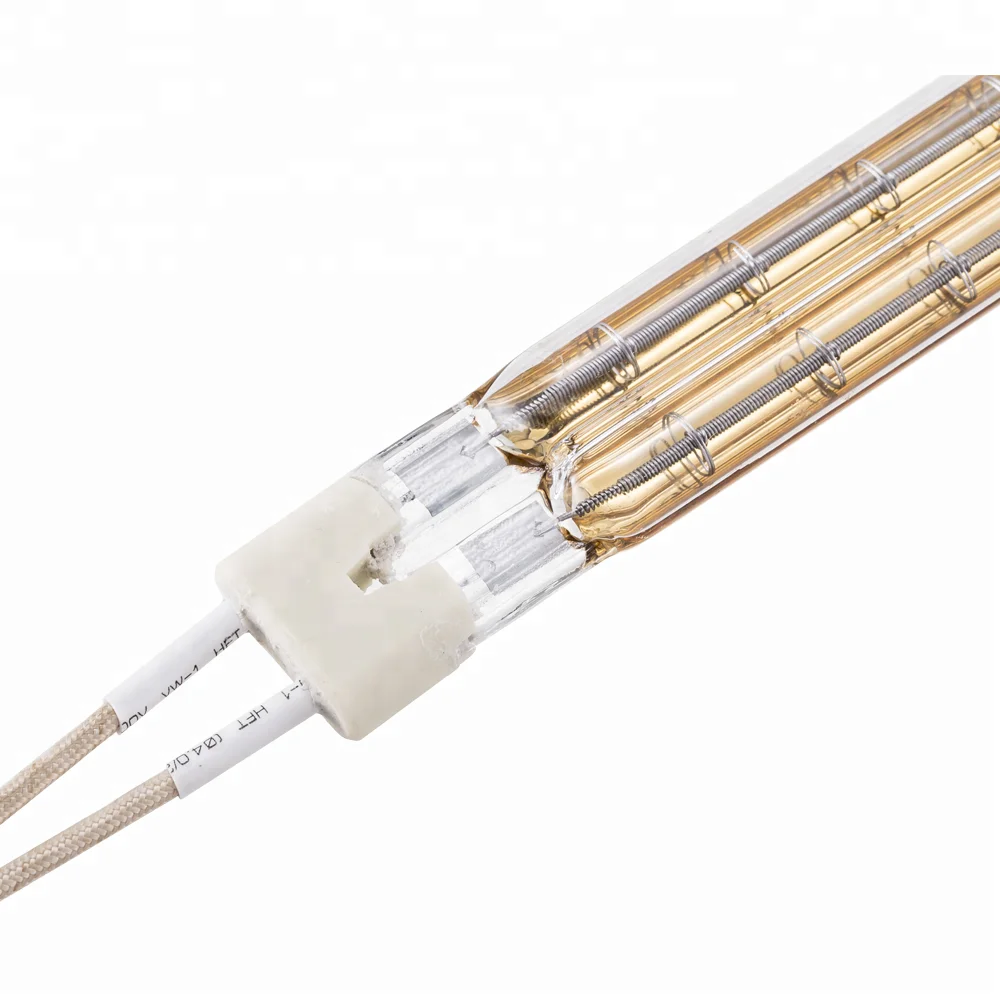

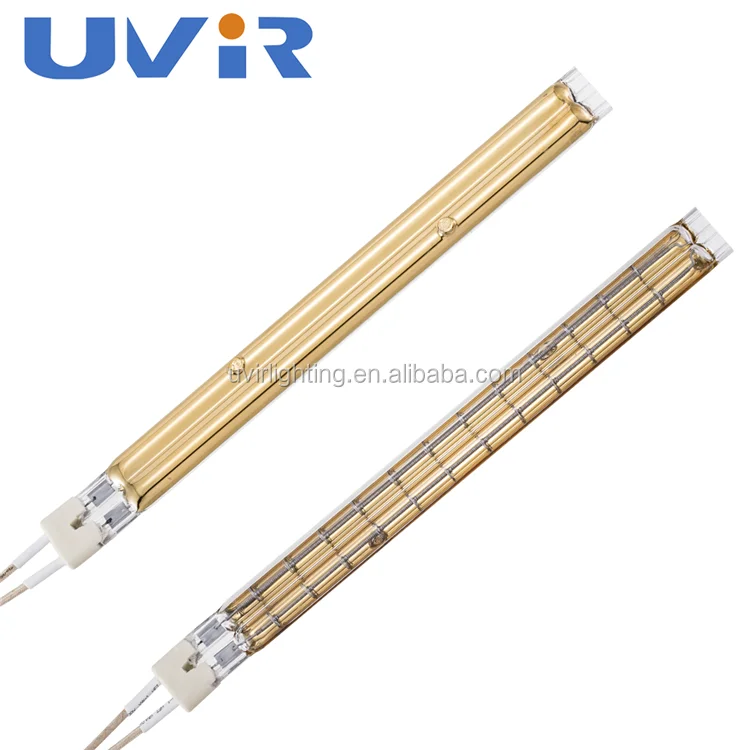

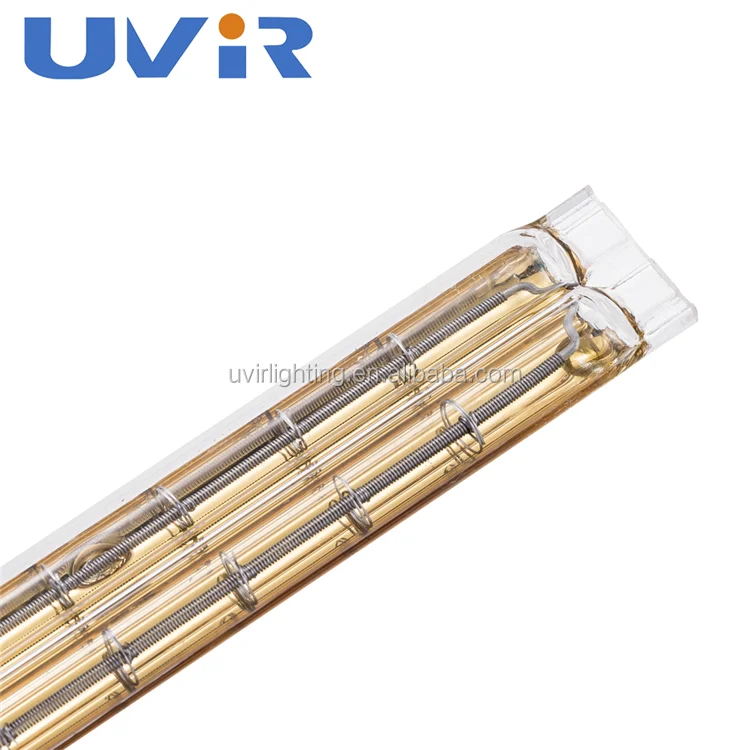

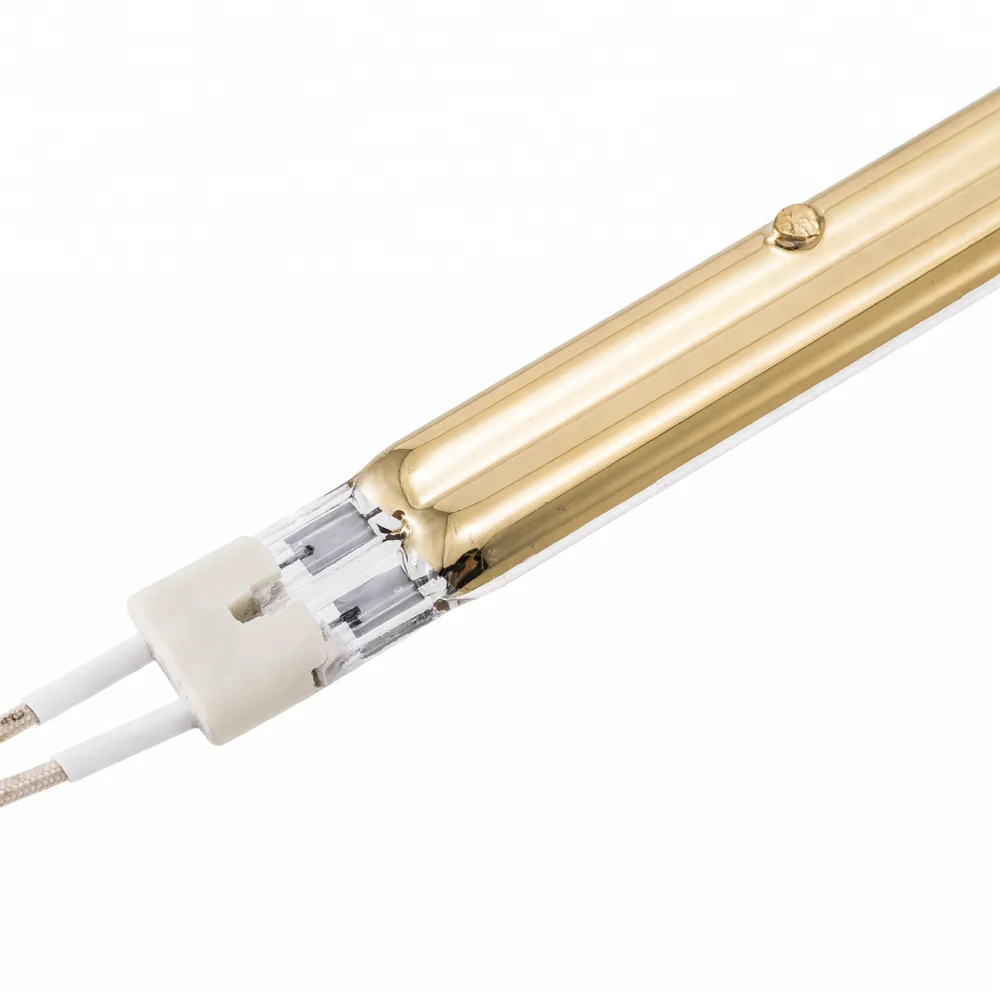

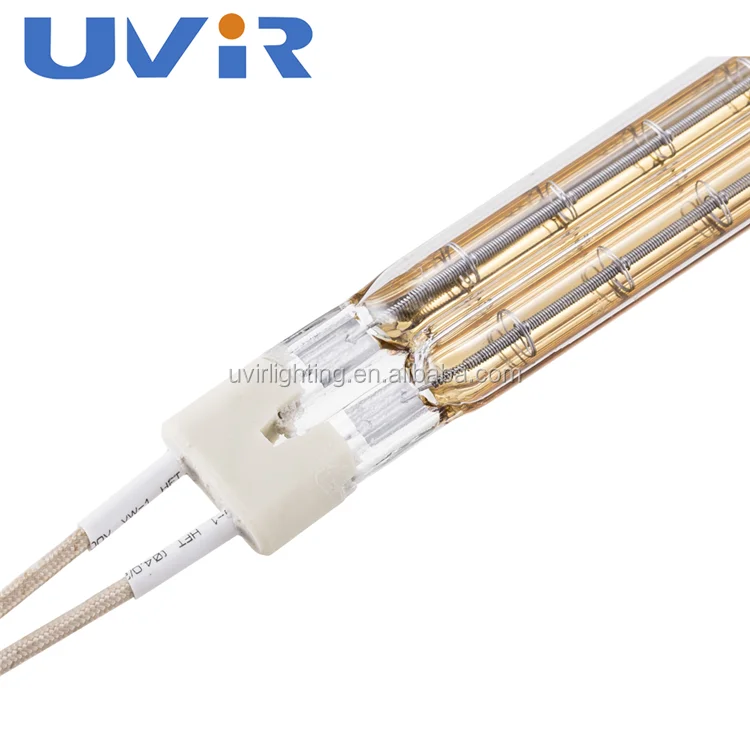

Infrared Led Energy Saving Halogen Heat Lamp
| Dryer | UVIR Model No. | Lamp Code | Energy | Volts | Watts | Total Length | Tube Corss Section | Construction | Burning Position | HD Part |
| (V) | (W) | (mm) | (mm) | |||||||
| SM52 | IRP001 | SM52-SW-A | short wave | 415 | 3300 | 712 | 11*23 | B | Horizontal | G4.170.0101 |
| Heidelberg MO | IRP002 | HMO-SW-A | short wave | 415 | 3300 | 740 | 11*23 | B | Horizontal | 53.170.1311 |
| IRP003 | HMO-MW-B | med. wave | 415 | 1800 | 740 | 15*33 | B | Horizontal | 53.170.1411 | |
| SM 72 | IRP004 | SM72-SW-A | short wave | 415 | 3500 | 800 | 15*33 | B | Horizontal | 83.170.1311 |
| IRP005 | SM72-MW-B | med. wave | 415 | 1900 | 800 | 15*33 | B | Horizontal | 83.170.1411 | |
| SM102 - pre 97' | IRP006 | SM102-SW-A | short wave | 415 | 3500 | 1100 | 11*23 | A | Horizontal | 91.170.1311 |
| IRP007 | SM102-MW-B | med. wave | 415 | 2500 | 1100 | 15*33 | B | Horizontal | 91.170.1411 | |
| CD74/SM74/ MAN 500 | IRP008 | SM74-SW-C | short wave | 400 | 6950 | 900 | 11*23 | H | Horizontal | M6.170.0301/01 |
| IRP009 | SM74-FMW-B | fast-med. | 480 | 4200 | 820 | 15*33 | B | Horizontal | ||
| IRP010 | MANGX-FMW-B | fast-med. | 415 | 4200 | 820 | 15*33 | B | Horizontal | ||
| CD102/SM102 | IRP011 | SM102-SW-C | short wave | 400 | 5400 | 1200 | 11*23 | H | Horizontal | C7.170.0301/01 |
| IRP012 | SM102-FMW-B | fast-med. | 480 | 6000 | 1120 | 15*33 | B | Horizontal | ||
| IRP013 | SM102-FMW-B-3000 | fast-med. | 400 | 6200 | 1160 | 15*33 | B | Horizontal | F7.170.0771 | |
| SM105XL | IRP014 | SM105XL-FMW-B | fast-med. | 400 | 6200 | 1160 | 15*33 | B | Horizontal | F7.170.0771/01 |
The infrared heat lamp can be customized according to demand
