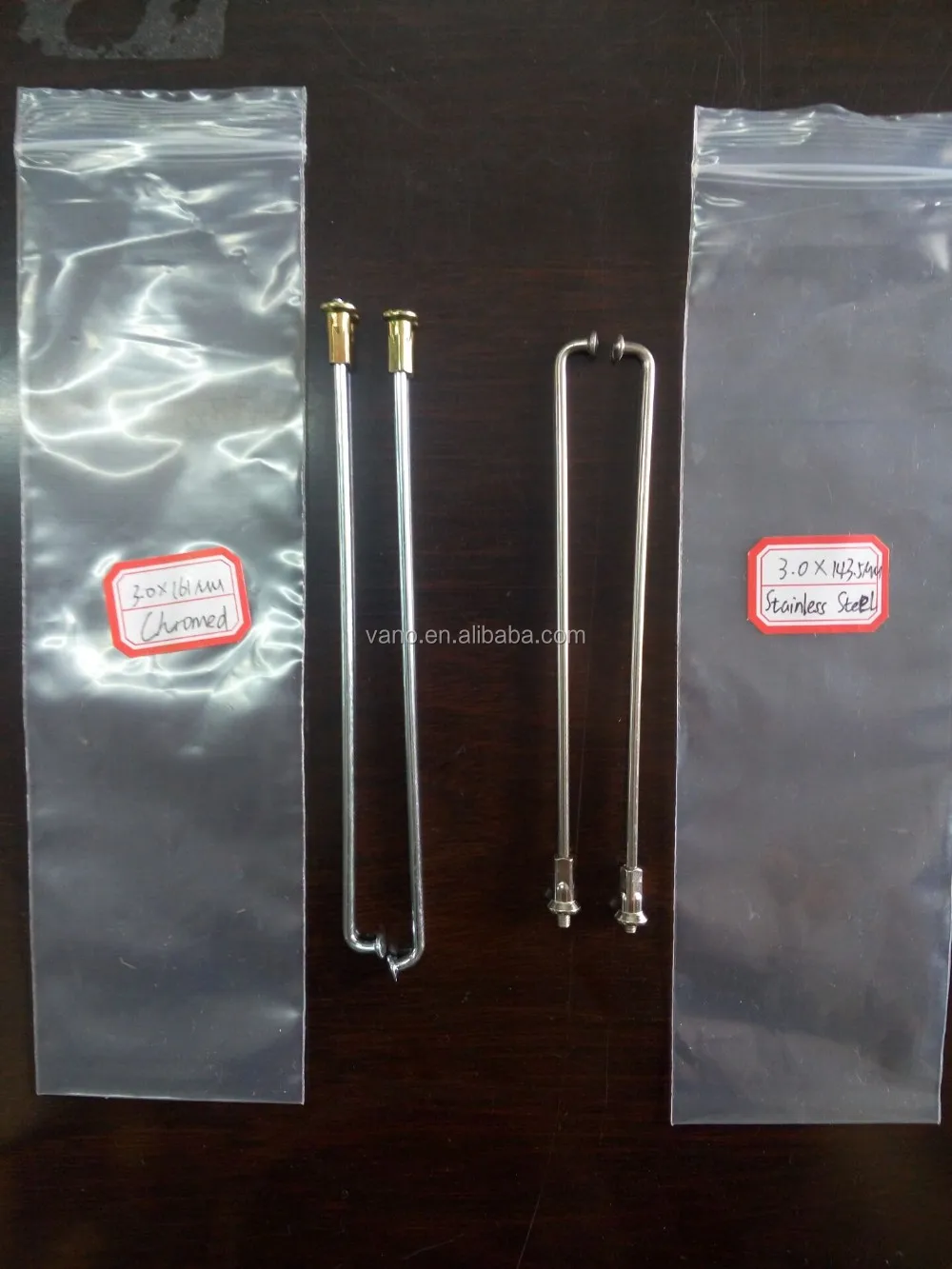

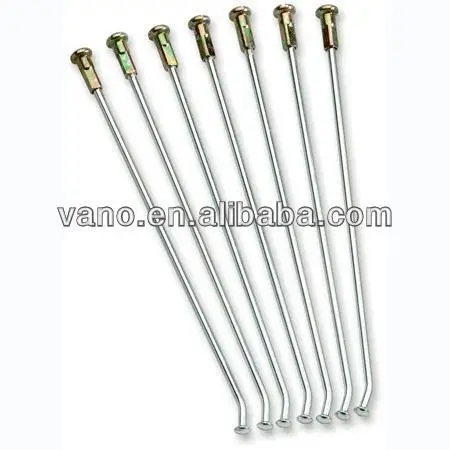

Motorcycle chromed spoke with nipples 161mm
Package:
To make your spoke kit, we will need your motorcycle"s information. We have a large database of spoke specifications for many hubs. If, however, we do not have specs for your motorcycle, we can make spokes from your original samples.
Nipple Specification | |||
BODY DIAMETER | OVERALL LENGTH | MATERIAL & FINISH | THREAD SIZES |
inches (mm) | AVAILABLE | ||
.390" (9.91) | .950" | S, B, C | .192" / .242" |
.343" (8.71) | 1.210" | S, B, C | 8ga / .175" / .192" |
.900" | S, B, C, Z | 9ga / 8ga / .165" / .175" / .192" | |
.790" | S, B, C | .192" | |
.320" (8.12) | .900" | S | 9ga / 8ga / .165" / .175" |
H | .165" | ||
.790" | H | 8ga / 9ga / .175" | |
.300" (7.62) | .900" | S, B, C, Z | 9ga / 8ga / .165" / .175" |
.790" | S, B, C, Z, A* | 10ga / 9ga / 8ga / .175" | |
.281" (7.11) | .900" | S, B, C, Z | 10ga / 9ga / 8ga |
1.000" | S | 9ga / 8ga | |
.250" (6.35) | .900" | S**, B**, C** | 10ga / 9ga |
.790" | S, B, C, Z | ||
.236" (5.97) | .950" | N** | 11ga |
.230" (5.84) | .600" | H, N, Y | 10ga |
MATERIAL & FINISH: | S = Stainless steel | B = Bare carbon steel | C = Chrome plated steel |
| Z = Nickel plated steel | H = Blue Zinc plated steel | Y = Yellow Zinc plated steel |
| N= Nickel plated brass | A = Aluminum alloy |
|
