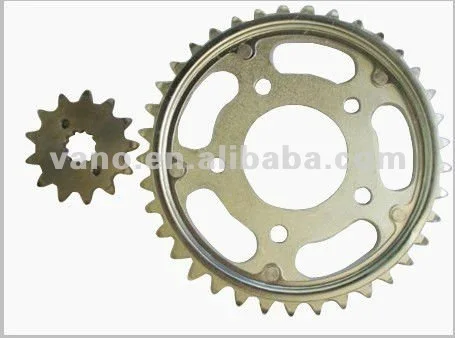

Motorcycle 36T/14T CBF150 sprocket
1.About 36T
Teeth Number | 36 |
Outside Diameter | D152.01mm |
Center Hole | D54mm |
Root Diameter | 137.2mm |
Tooth Thickness | 7mm |
Step Diameter | 90mm |
Center Distance | 70mm |
Pilot Hole Diameter | 8.5mm |
Material | 1045# |
Hardness | HRC45-50 |
Pitch | P12.7mm |
Roller Diameter | Dr8.51mm |
Adaptive ISO Chain Number | 08B |
2.About 14T
Teeth Number | 14 |
Outside Diameter | D62.5mm |
Center Hole | D14mm |
Root Diameter | 48.56mm |
Tooth Thickness | 7mm |
Screwhole Thickness | M6*2*30mm |
Material | 20CrMnTi |
Hardness | HRC58-64 |
Pitch | P12.7mm |
Roller Diameter | Dr8.51mm |
Adaptive ISO Chain Number | 08B |
3.Company
1.Hih quality.
2.Stable performance.
3.Packeging nicely and neatly,according to clients’requirment
4.Provide professional advice to clients in different market
5.High quality and competitive prices.
6.Good elasticity and high tensile strength.
7.Superior appearance and anti-aging compound design.
8.Our log or OEM log are available and we accept small order.
Our company specialized in motorcycle parts for more than 20 years and has set up three factories already can provide all kinds of motorcycle parts. With years of hard work, our products exported to many countries, main market are: North America, South America, Europe,Asia and Africa.
