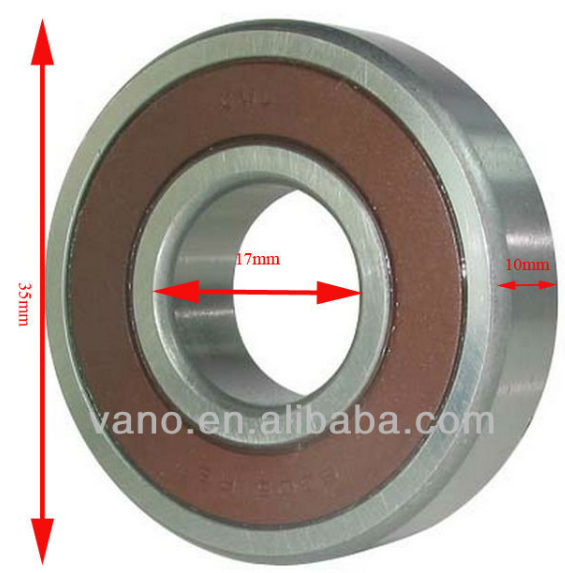

High Sealed Single Row 17x35x10 Deep Groove 6003 Ball Bearing
With simple structure and convnient usage, this bearing is one kind of bearings with the most largest production lot and the widest application scope. They are mainly used to bear radial loads. When the radial play of bearings becomes larger, it will have the performance of angular contact bearings without withstanding the increasing axial load. This kind of bearings are featured by small bearings frictional coefficient, low jarring and noise and high limit speed with no shock resistance. So it is not favorable for holding heavier loads.
Singlerow, deep groove radial ball bearings
1.the most common bearing type
2. wide range of applications
3. high precision
More details
| Model | 6003 | Various bearings we can offer |
| Bore | 17mm 0.6693inch | 1.Direcitonal bearings 2.Front hub bearings 3.Engine bearings 4.Rear hub Bearings |
| O.D | 35mm 1.3780 inch | |
| Width | 10mm 0.3937 inch | |
| Chamfer | 0.3mm 0.012 inch | |
| Load Rating | Dynamic:6.8 Static: 3.35 | |
| Ball complement | NO. 10 Size 4.763 | |
| Maximum Seed | Grease:17000 Oil:22000 | |
| Kg/pc | 0.039 |
We are dealing with motorcycle parts zbout 20 years. We are professional supplier and producer of motorcycle pressure regulator and other motorcycle spare parts. Welcome to contact with me anytime !
