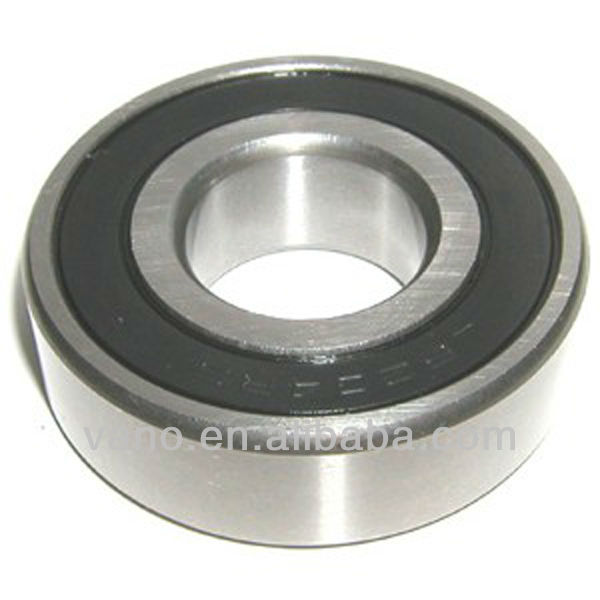

Manufacturer of Ceramic 15x32x9 Motorcycle Deep Groove Ball Bearings 6002
With simple structure and convnient usage, this bearing is one kind of bearings with the most largest production lot and the widest application scope. They are mainly used to bear radial loads. When the radial play of bearings becomes larger, it will have the performance of angular contact bearings without withstanding the increasing axial load. This kind of bearings are featured by small bearings frictional coefficient, low jarring and noise and high limit speed with no shock resistance. So it is not favorable for holding heavier loads.
Singlerow, deep groove ball bearings
1.the most common bearing type
2. wide range of applications
3. high precision
4.excellent sealing performance.
5. Low vibration, low noise, low friction moment, long service life, high swiveling accuracy
More details
| Model | 6002 | Various bearings we can offer |
| Bore | 15mm 0.5906inch | 1.Direcitonal bearings 2.Front hub bearings 3.Engine bearings 4.Rear hub Bearings |
| O.D | 32mm 1.2598 inch | |
| Width | 9mm 0.3543 inch | |
| Chamfer | 0.3mm 0.012 inch | |
| Load Rating | Dynamic:5.60 Static: 2.84 | |
| Ball complement | NO. 9 Size 4.763 | |
| Maximum Seed | Grease:18000 Oil:24000 | |
| Kg/pc | 0.030 |
