Overview
Quick Details
- Type:
- Ignition Coil
- Place of Origin:
- Fujian, China
- Brand Name:
- GOOD
- Model Number:
- YBR125
- Material:
- Wire and metal
- Item:
- motorcyle Ignition Coil
- Certification:
- ISO9001
- Sample:
- Available
- Company type:
- Factory and trading
- OEM:
- Accepted
- Small order:
- ok
- Color:
- Black
- Package:
- box and carton
- MOQ:
- 100pcs
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- box and paper carton
- Port
- FUZHOU/NINGBO/ANY PORT OF CHINA
- Lead Time:
- 15-20days after received your order or as your requirements

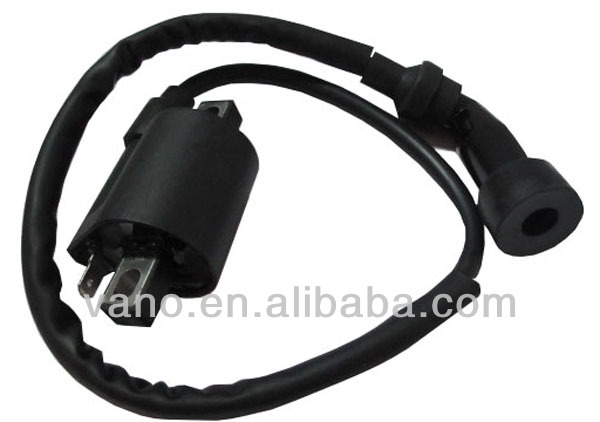

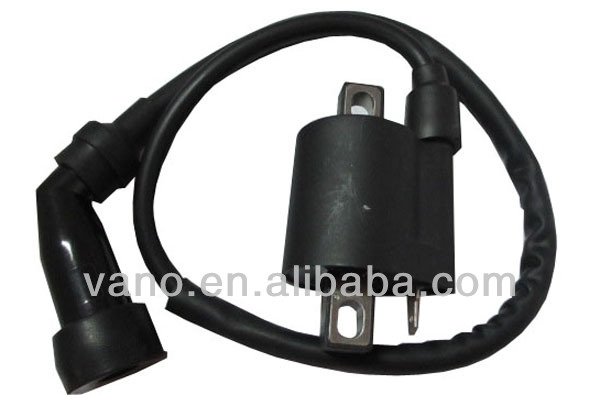

Competitive Price 125cc YBR125 Ignition Coil for Motorcycle
Features
1. Capacitor discharge ignition coil
2. Use of iron oxide magnetic materials
3. energy transfer efficiency
4. Ignition coil can withstand high pressure and have a good insulation properties
5. Hard epoxy encapsulated, resistance to vibration
6. environmental adaptability
Specificaitons
ITEM | INDEXES |
type | Capacitor storage energy |
Primary resistance | 0.4Ω |
Secondary resistance | 2.9KΩ |
Damping resistor | 5KΩ |
Voltage transfer ratio | 150:01:00 |
Insulation resistance | >1000MΩ |
Annex tensile strength | >50N |
Operating Temperature | -30---85°C |
