Click on the image to view the original image
Specifications
MotorcycleChain sprocket for CD70
1.High strength
2.stable performance
3.High Quality
4.Size precise
We can supply all kind of motorcycle parts , with lowest factory price and good service !
We can also adapt to customer"s specific request and also can make new model according to your samples or designing draft.

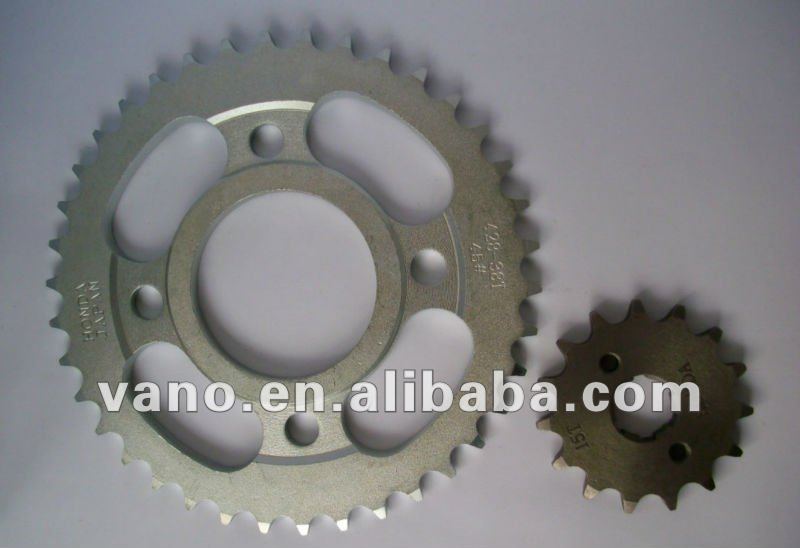

CD70 Motorcycle Chain Wheel sprocket
1.High precision, abrasion resistance
2. wear-resisting corrosion and reliably
3. High quality and low price
4. Fast start with voltage, long service life
5. Steady force transmission, Reliable transfer torque

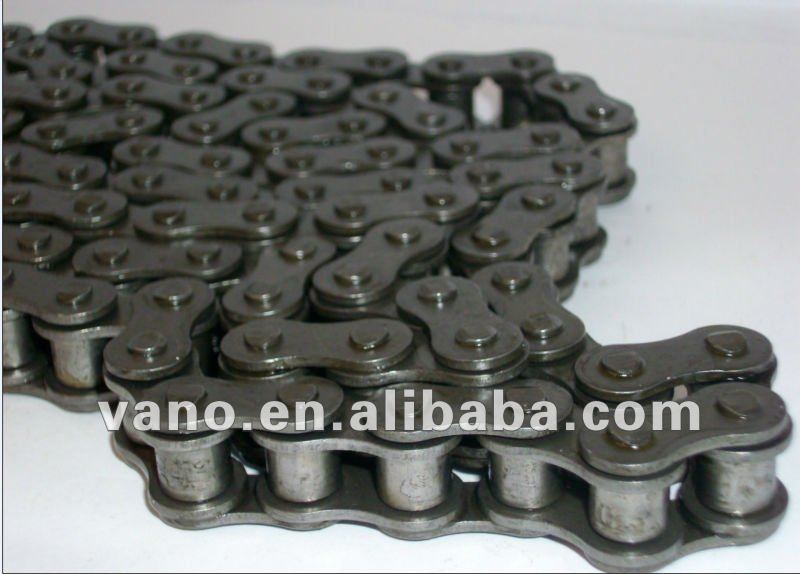

Chains

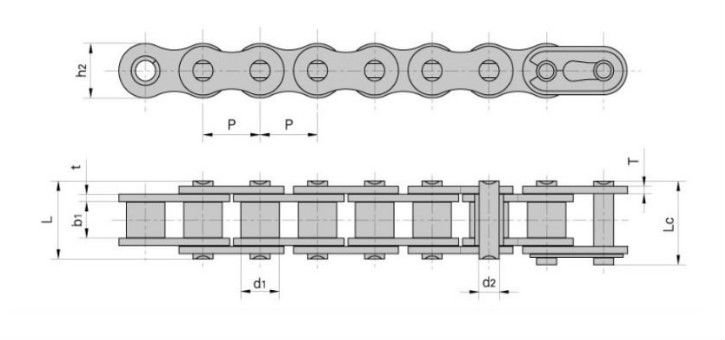

NO | p | d1 Max | b1 Min | d2 Max | L Max | Lc Max | h2 max | T max | Q min | Q0 min | q |
mm | mm | mm | mm | mm | mm | mm | mm | KN/LB | KN | Kg/m | |
420 | 12.700 | 7.77 | 6.25 | 3.96 | 14.70 | 16.10 | 12.00 | 1.50 | 16.0/3636 | 18.1 | 0.55 |
428 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.20 | 11.80 | 1.60 | 18.0/4091 | 20.1 | 0.70 |
428H | 12.700 | 8.51 | 7.85 | 4.45 | 18.80 | 19.90 | 11.80 | 2.03 | 20.6/4682 | 23.4 | 0.79 |
520 | 15.875 | 10.16 | 6.25 | 5.08 | 17.50 | 19.00 | 15.09 | 2.03 | 26.5/6022 | 29.7 | 0.89 |
530 | 15.875 | 10.16 | 9.40 | 5.08 | 20.70 | 22.20 | 15.09 | 2.03 | 26.5/6022 | 29.7 | 1.06 |
Brand Name
| GOOD |
Certification
| ISO9001:2000 |
Material
| High quality alloy steel |
sale model
| Factory direct sale,Competitive price |
Payment
|
T/T,L/C,Western Union,Payple
30% T/T as the deposit, 70% before shipment
|
Packing
| Supply our own packages and aslo can packed according to customers" demands. |
Delivery
| Within 20 days after confirmed order |
main abroad market | North and South America, Middle East, Africa, South East Asia. |

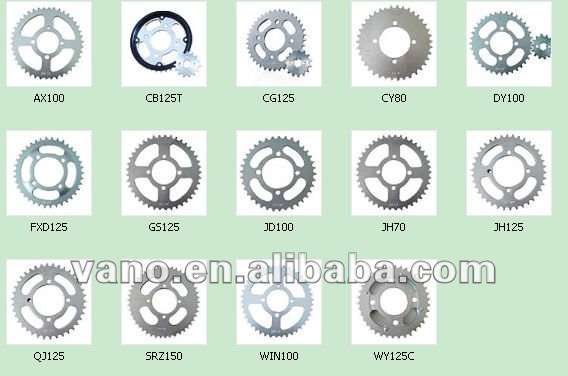

Other avaliable models:
| models | specifications |
| AX100 | 428-42T/14T |
| CB125T | 428-42T/15T |
| CG125 | 428-38T/15T |
| CY80 | 420-38T/13T |
| DY90 | 420-36T/14T |
| DY100 | 428-36T/14T |
| DX100 | 420-37T/14T |
| GS125 | 428-43T/14T |
| JD100 | 420-38T/14T |
| JH70(CD70) | 420-41T/14T |
| JH125 | 428-43T/15T |
| SRZ150 | 428-47T/15T |
| WIN100 | 428-41T/14T |
| WY125 | 428-38T/15T |
| WY125C | 428-38T/15T |
| QJ125 | 428-38T/15T 428-42T/15T |
| ZJ100 | 428-38T/14T 428-38T/15T |
| FXD125 | 428-41T/15T 428-41T/15T 428-41T/15T |
About us
We have been dealing with the business of motorcycle and vehicle spare parts with long history and have a brother company ""Gooder Enterprises Corporation""which involves motorcycle parts for about 20years in domestic market. Meanwhile brand ""GOOD"" has access into the famous brand in the field of motorcycle parts.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.!
We are looking forward to forming successful business relationships with new clients around the world in the near future.
