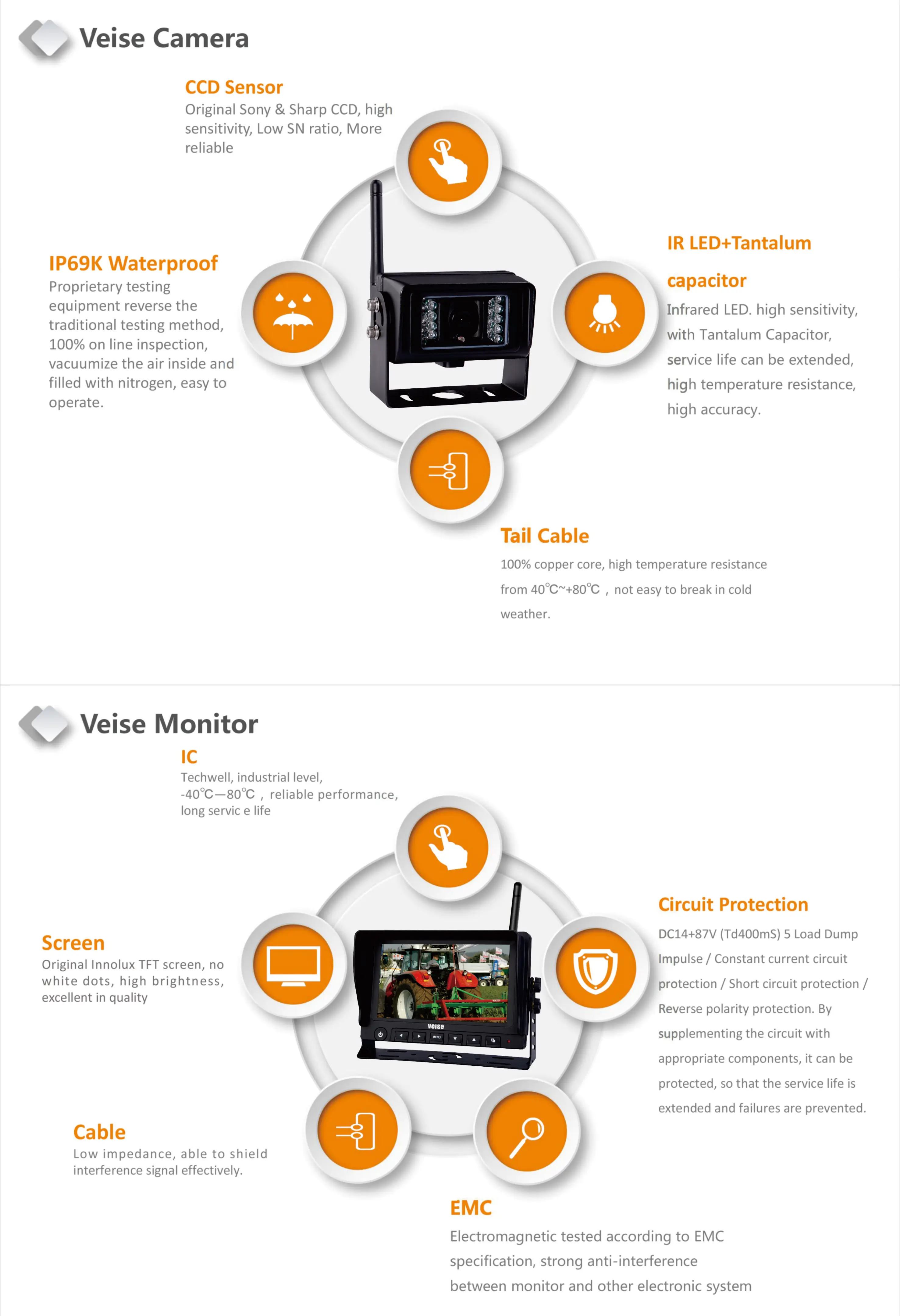

Wirelss Waterproof Digital Rearview Camera Monitor System
Multi-Monitor Digital Wireless Camera Surveillance System Eliminates Cabling, Applications Farm Harvester Harvesting, Tractor Transport, Viewing Silos
7"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver,Graphical menu
Multi-monitor automatically receives the same camera image
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing
DC14~+87V(Td400mS) 5pulses Load Dump,400cd/m2 Brightnes
2.4GHz Digital Wireless Camera Aluminum Camera IP69K Waterproof and 10G Vibration, IR LEDs for Night Vision
Free Operating Voltage: DC8~32V
| Digital Wireless Receive Monitor(Model:SP-766RX*4) |
| 7" Digital Screen TFT LCD Monitor with Removable Sun Visor |
| Built in 2 CH 2.4GHz Digital Wireless Receiver |
| Operation Frequency:2400 ~ 2483.5MHz |
| Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE) |
| Overlapping Hopping Channel:80 |
| Color System:PAL/NTSC |
| Display Resolution: 800RGB(H) X 480(V) dot |
| Wide view angle(CR>10):(up/ down): 50/70 (left/right): 70/70 |
| Brightness (cd/m2): 450 |
| Contrast ratio: 500:1 |
| Operating temperature: -20℃ to +70℃ |
| Storage temperature: -30℃ to +80℃ |
| Free Operating Voltage: DC8~32V |
| External dimensions:(L x W x T) (199 x 128 x 28mm) without mounting Sun Visor |
| Weight Approx: 400g |
| Digital Wireless Waterproof IR Camera(MODEL:DF-8275TXN*1) |
| Image Type: 1/3 inch Color CMOS |
| Built in 2.4GHz Digital wireless transmitter |
| Transmission Power:18dBm with Power control |
| Line of Sight Range:≤100M |
| Horizontal Resolution:600TV Lines |
| Effective pixel:NTSC:NTSC:960(H)X480(V);PAL:960(H)X480(V) |
| Usable Illumination : 0Lux ( Built in 18pcs IR LED"s for Picture Support in the Dark) |
| IR-CUT: Automatic switch, day and night mode |
| Free viewing angle: 120° |
| Waterproof: IP69K |
| Shockproof: 10G |
| Free Operating Voltage: DC8-32 Volts |
| Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting) |
| Weight : 450g |
| Accessories |
| U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*5, Auto cigarette lighter,User"s Manual |
1. MOQ?
Our MOQ is 1pcs, welcome to order sample to test our quality and service.
2. Payment terms?
We accept PayPal (8% bank charge), T/T bank transfer ($30 bank charge), Western Union and Money Gram, or other payment terms according to customer.
3. Product"s warranty?
1 year for monitor & 2 years for camera & 2 year for working light & 3 years for LED warning light
4. Sample?
1) Choose the item you need and contact us for price, shipping and specifications details;
2) If you are agree with our offer, please send us your contact information to make Proforma Invoice;
3) After payment done, we will execute your order and tracking number will be sent to you after goods sent via DHL, FedEx, EMS, TNT...
5. OEM/ODM?
OEM/ODM is highly welcome.
