Cctv Car View Camera with IR night view, IP69K water proof system for heavy duty
INFRARED
850nM IR
High power
Long night distance

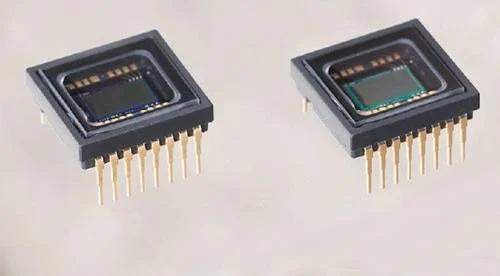

SENSOR
CCD
Betterphoto sensitivity
Higher S/N Ratio
Higherresolution
More expensive cost
GLASS
Reinforced glass
impact strength>6H,
less danger

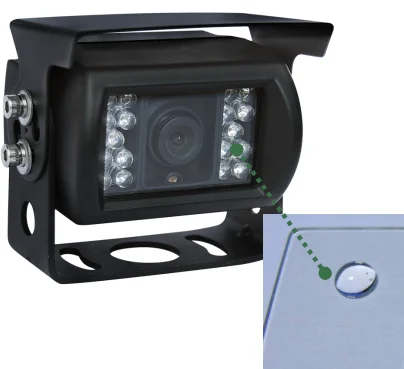

Aluminum Shell Backup Waterproof Camera(MODEL:DF-4609V)
Image Type: 1/3 Inch Color CCD
Horizontal Resolution: 600TV Lines
Effective pixel: NTSC:976(H)×494(V) PAL:976(H)x582(V)
Usable Illumination : 0Lux ( Built in 18 IR LED"s for Picture Support in the Dark)
Free viewing angle: 130°
Waterproof: 100% Waterproof IP69K Rating
Shockproof: 10G
Video Output:1.0Vp-p75Ω
Operating temperature: -40℃ to +70℃
(Automatic heating when the camera’s running temperature is below 10℃ optional)
Power supply: DC12V/24V
Weight Approx: 420g
Dimensions: 108(W) x78(H) x 75(D) mm (With stents)
VEISE Electronic Co., Ltd is a high-tech enterprise engaged in researching, developing, selling and manufacturing of vehicle rear view monitor back up camera system for Car, Farm tractor agriculture equipment, Bus, Coach, School Bus, Freight Hgvs, Municipal Garbage Truck, Trailer Rv, Van Fleet, Heavy Equipment, Mining, Fire Trucks, Ambulance, Cash-In-Transit, Forklift Truck, Port Crane Boat, Rail Tram, Airport Vehicle.
Since 1997 we have been developing innovative vehicle vision safety system both for workers and vehicles.
Our company Strict Implementationof Quality Management System as ISO/TS16949:2009.Our Products R&D Production process all applied are Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis (DFMEA), Process Failure Mode and Effects Analysis (PFMEA), Measurement System Analysis (MAS), Statistical Process Control (SPC) and Production Part Approval Process (PPAP)quality control in order to ensure the top reliability of our products and high capability of company management.
Our company is equipped with advanced production facilities and test devices, such as load dump generator and instruments for waterproof test, vibration test, environment temperature test and salt fog exposure test, etc. VEISE monitor camera systems comply with ISO-7637-2.
Our lead time is 2-4 weeks if the order has special requirements. We supply 2-year warranty.
